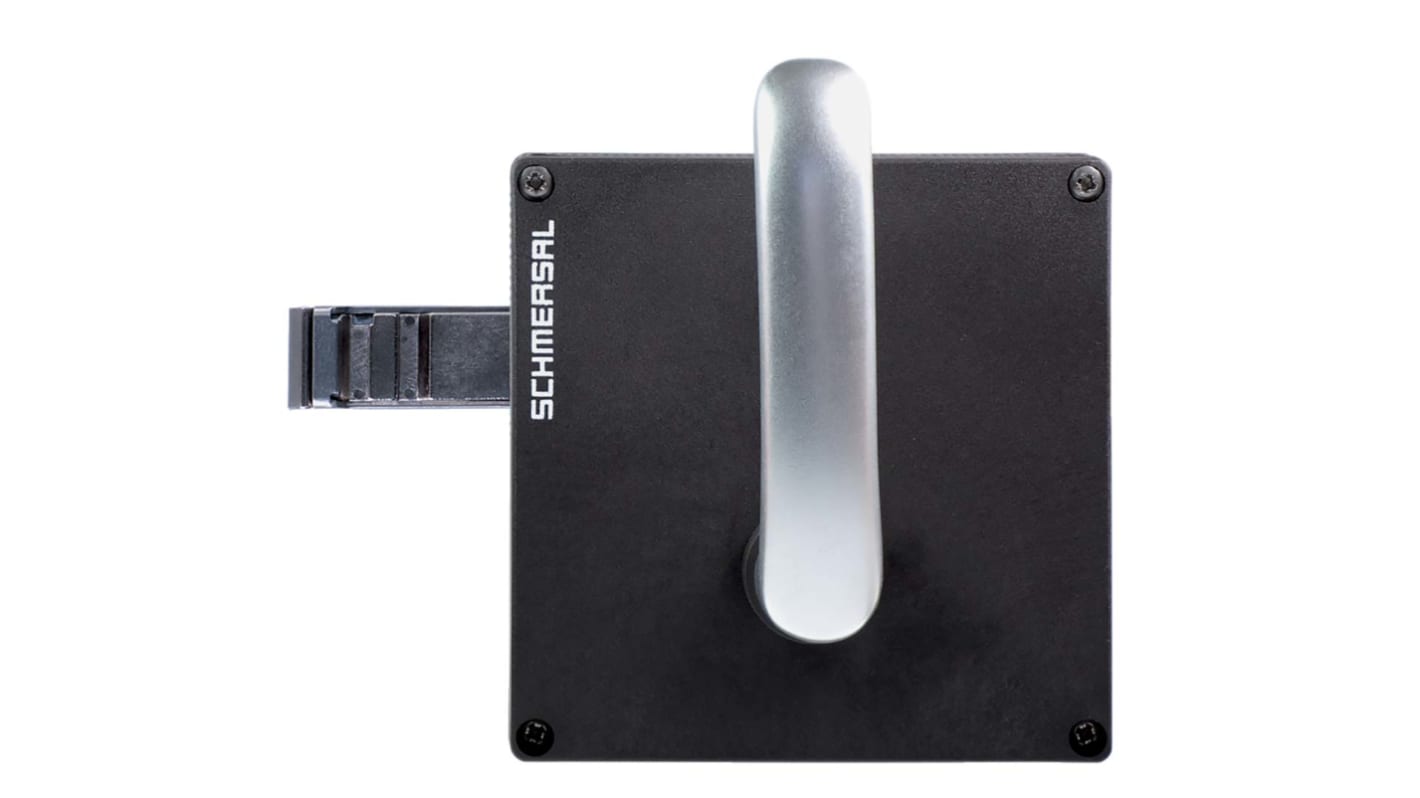

Schmersal AZ/AZM201-B30-RTAG1P1 Series Limit Switch, Thermoplastic Housing
- RS Stock No.:
- 206-5770
- Mfr. Part No.:
- 103013497
- Brand:
- Schmersal
15 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price Each
£321.68
(exc. VAT)
£386.02
(inc. VAT)
| Units | Per unit |
| 1 + | £321.68 |
- RS Stock No.:
- 206-5770
- Mfr. Part No.:
- 103013497
- Brand:
- Schmersal
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
The Schmersal AZ201 is mainly used for left hinged doors, actuator for hinged guards. It can tolerate up to maximum 0.5mm over travel. The actuator material is zinc die-cast. The actuator is to be mounted outside. It also consists of an emergency exit and is made of metal which is plastic-coated. It does not require any supplementary door handles required as it comes with handle and Emergency exit handle.
Easy and intuitive operation
Mechanical Life: 1,000,000 operations
Clamping force in accordance with ISO14119 Fzh: 2,000 N
Clamping force, maximum F max: 2,600 N
Does not protrude into the door opening
No risk of injury from protruding actuator
Mechanical Life: 1,000,000 operations
Clamping force in accordance with ISO14119 Fzh: 2,000 N
Clamping force, maximum F max: 2,600 N
Does not protrude into the door opening
No risk of injury from protruding actuator
Specifications
Attribute | Value |
|---|---|
| Housing Material | Glass Fibre Reinforced Thermoplastic |
| Series | AZ/AZM201-B30-RTAG1P1 |
