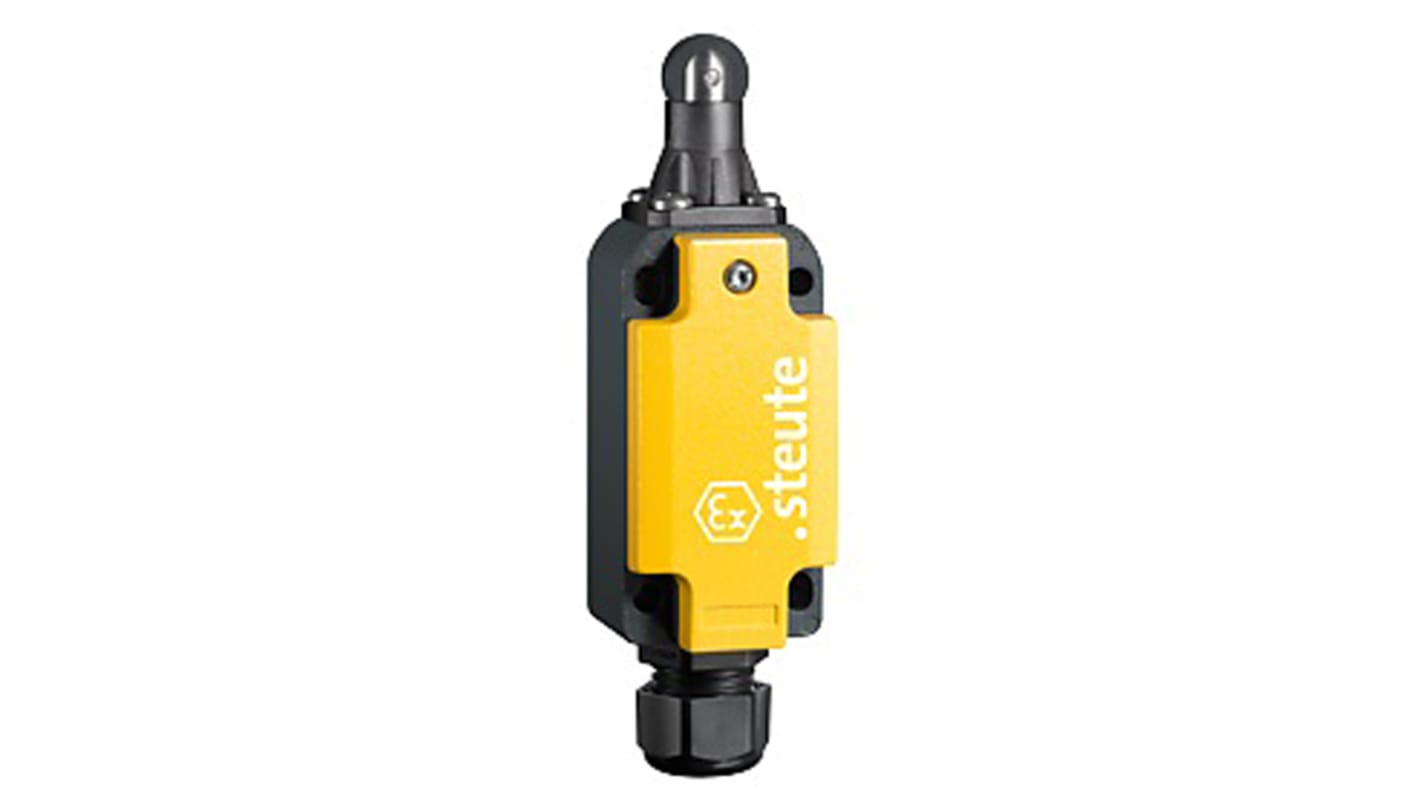

IP66 Positive Break, Slow Action Limit Switch Roller/Plunger Aluminium, NO/NC, 250V

  • RS Stock No. 136-5925
  • Mfr. Part No. Ex ES 98 R -11 -40C
  • Brand Steute
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

EX 98 Limit Switches

Steute Ex 98 limit switches are used where moving parts of machines and industrial plants have to be positioned, controlled and monitored. The Ex safety position switches are suitable for sliding and hinged safety guards, which need to be closed to ensure the necessary operational security. The Ex 98 limit switches feature slow action positive break NC contacts and are available with various contact configurations.

Features and Benefits

Ex zone 1 and 21 Corrosion-resistant aluminium enclosure
IP66 Rated
Actuator can be repositioned by 4 x 90°
Wide range of actuators

Specifications
Attribute Value
Actuator Type Roller/Plunger
Pole and Throw Configuration DPST
Normal State Configuration NO/NC
IP Rating IP66
Maximum Current 4.4 (T6) A, 6.6 (T5) A
Housing Material Aluminium
Maximum AC Voltage 250V
Maximum DC Voltage 125V
Connection Type Cable
Series Ex 98
Contact Type Positive Break, Slow Action
Terminal Type Screw
Length 1016mm
Width 3022.6mm
Minimum Operating Temperature -40°C
Depth 1092.2mm
Dimensions 1016 x 3022.6 x 1092.2 mm
Mechanical Life Minimum >1000000 operations
Maximum Operating Temperature +70°C
Mounting Orientation Vertical
Standards Met EAC, EN 50047, EN 60079-0, EN 60079-1, EN 60079-14, EN 60079-31, EN 60079-7, EN 60947-5-1, EN ISO 13849-1, EN ISO 14119, EX II 2D Ex tb IIIC T80 °C Db, EX II 2G Ex db eb IIC T6 Gb, Ex tb IIIC T80 °C Db, IECEx Ex db eb IIC T6 Gb
Hazardous Area Certification IECEx
1 In stock for FREE next working day delivery
Price Each
£ 185.71
(exc. VAT)
£ 222.85
(inc. VAT)
Units
Per unit
1 +
£185.71
