Telemecanique Sensors OsiSense XC Series Limit Switch, 2NC/1NO, IP66, 3P, Metal Housing, 240V ac Max, 10A Max
- RS Stock No.:
- 125-8483
- Mfr. Part No.:
- ZCKJD39H29
- Brand:
- Telemecanique Sensors
- RS Stock No.:
- 125-8483
- Mfr. Part No.:
- ZCKJD39H29
- Brand:
- Telemecanique Sensors
Technical Reference
Legislation and Compliance
Product Details

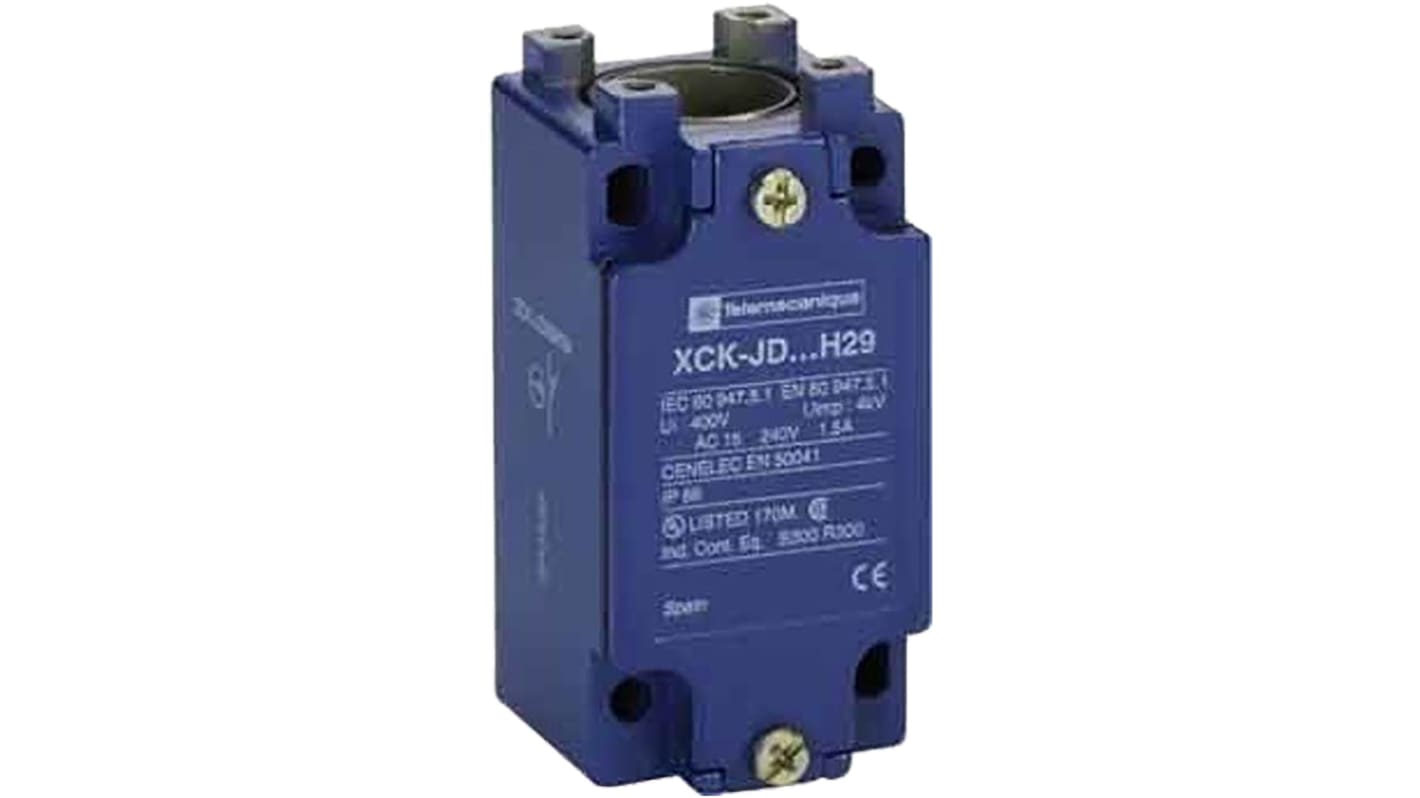

Standard Limit Switch Body / LED (ZCKJ)
Telemecanique OsiSense XCKJ series limit switch bodies allow complete limit switch assemblies to be constructed using ZCKE/Y limit switch heads and actuators.
Features and Benefits
Snap action contacts with positive opening operation
-25 to +70°C operating temperature
Protected to IP66
Robust metal body
-25 to +70°C operating temperature
Protected to IP66
Robust metal body
Standards
VDE0660, IEC947-5-1
Approvals
UL, CSA
Specifications
Attribute | Value |
---|---|
Pole and Throw Configuration | 3P |
Normal State Configuration | 2NC/1NO |
IP Rating | IP66 |
Maximum Current | 10A |
Housing Material | Metal |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 250V |
Connection Type | M20 |
Series | OsiSense XC |
Action Type | Snap Action |
Length | 52mm |
Minimum Operating Temperature | -25°C |
Width | 30mm |
Depth | 72mm |
Maximum Operating Temperature | +70°C |
