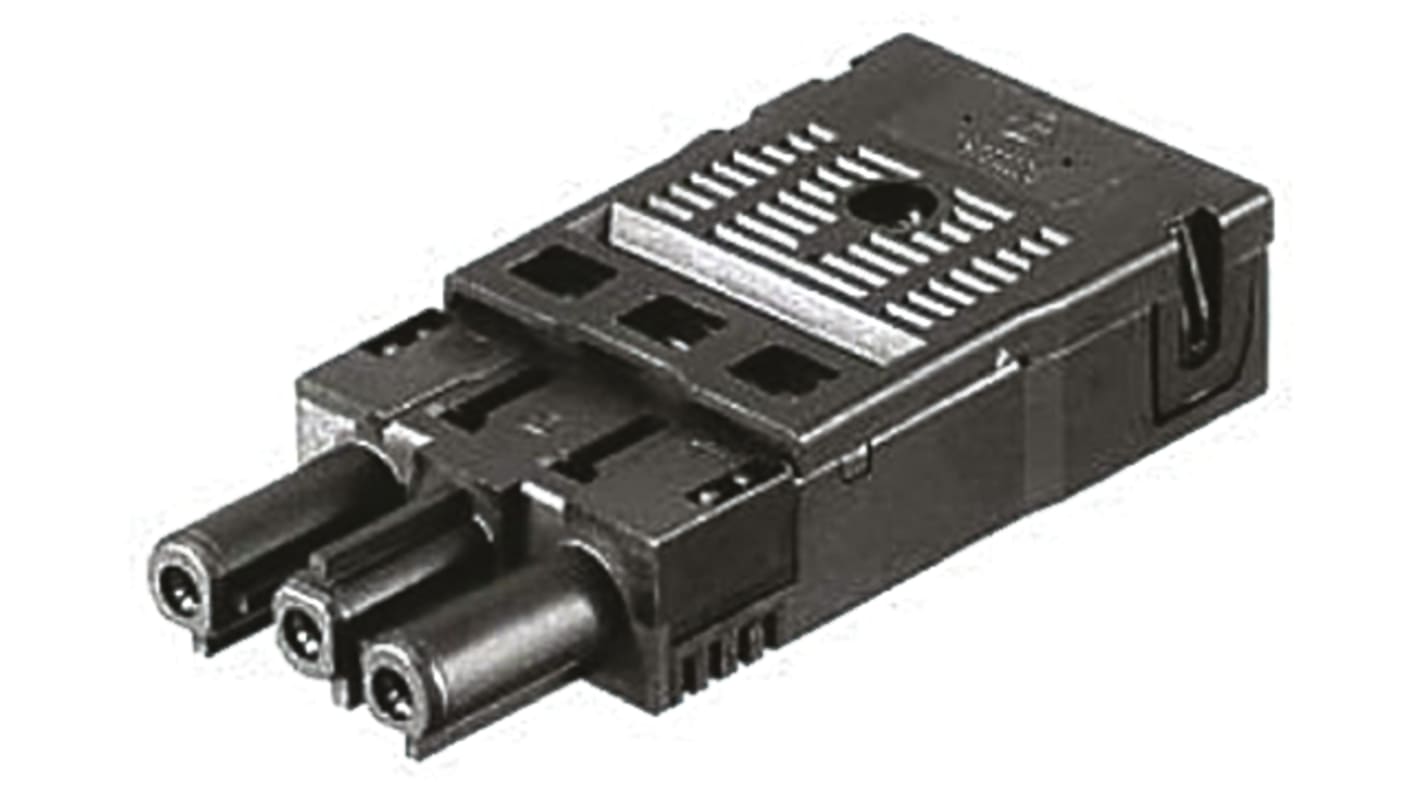

Wieland GST18i3 Series Mini Connector, 3-Pole, Female, Cable Mount, 16A, IP40
- RS Stock No.:
- 419-4890
- Mfr. Part No.:
- 92.933.0053.1
- Brand:
- Wieland
250 In stock - FREE next working day delivery available
65 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£4.318
(exc. VAT)
£5.182
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 70 | £4.318 | £21.59 |
| 75 - 120 | £4.124 | £20.62 |
| 125 + | £4.034 | £20.17 |
| *price indicative | ||
- RS Stock No.:
- 419-4890
- Mfr. Part No.:
- 92.933.0053.1
- Brand:
- Wieland
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Wieland Electric GST18i Lighting Connector
The GST18i series of plug-in building installation connectors are designed for quick, safe and easy connection and disconnection during electrical installation.
Features and Benefits
• These GST18i plug-in lighting connectors by Wieland have robust solid metal contacts and are IP20 touch rated with a leading ground contact
• Mechanical coding enables a clear and safe separation of different applications within the same system, whilst colour coding identifies the connections that belong together allowing ease of assembly and eliminating mismating
• The GST18i range is fully compatible with the existing GST18 connectors but benefit from a 20A capacity
• Mechanical coding enables a clear and safe separation of different applications within the same system, whilst colour coding identifies the connections that belong together allowing ease of assembly and eliminating mismating
• The GST18i range is fully compatible with the existing GST18 connectors but benefit from a 20A capacity
Applications and Uses
These GST18i plug and socket connectors are a versatile connector system ideal for the installation of lighting systems, switches, sunblinds and power sockets.
GST18i3 Lighting Connector
- Female connector with strain relief
- Rated current of 20A and rated voltage of 250V
- Spring force connection with three poles
- Cable diameter 10.3mm and 7.8mm
- Black polyamide housing
GST18i 20A Connectors
Wieland GST18i plug and socket connectors are a versatile connector system ideal for lighting, switches and sunblinds applications, mechanically and colour coded for ease of assembly and to prevent misconnections. GST18i connectors are fully intermateable with the existing GST18 connector sockets, plugs and cable assemblies, but feature a 20A capacity as opposed to the 16A capacity of the GST18 model.
Specifications
Attribute | Value |
|---|---|
| Pole Format | 3 |
| Series | GST18i3 |
| Gender | Female |
| Plug/Socket | Socket |
| Colour | Black |
| Type | Mini Connector |
| Mounting Type | Cable Mount |
| Current Rating | 16A |
| Voltage Rating | 250 V |
| IP Rating | IP40 |
| Wire Size | 0.5 → 1.5 mm² |
| Strain Relief | Yes |
| Contact Material | CuZn |
| Contact Plating | Tin |
| Termination Method | Clamp |
