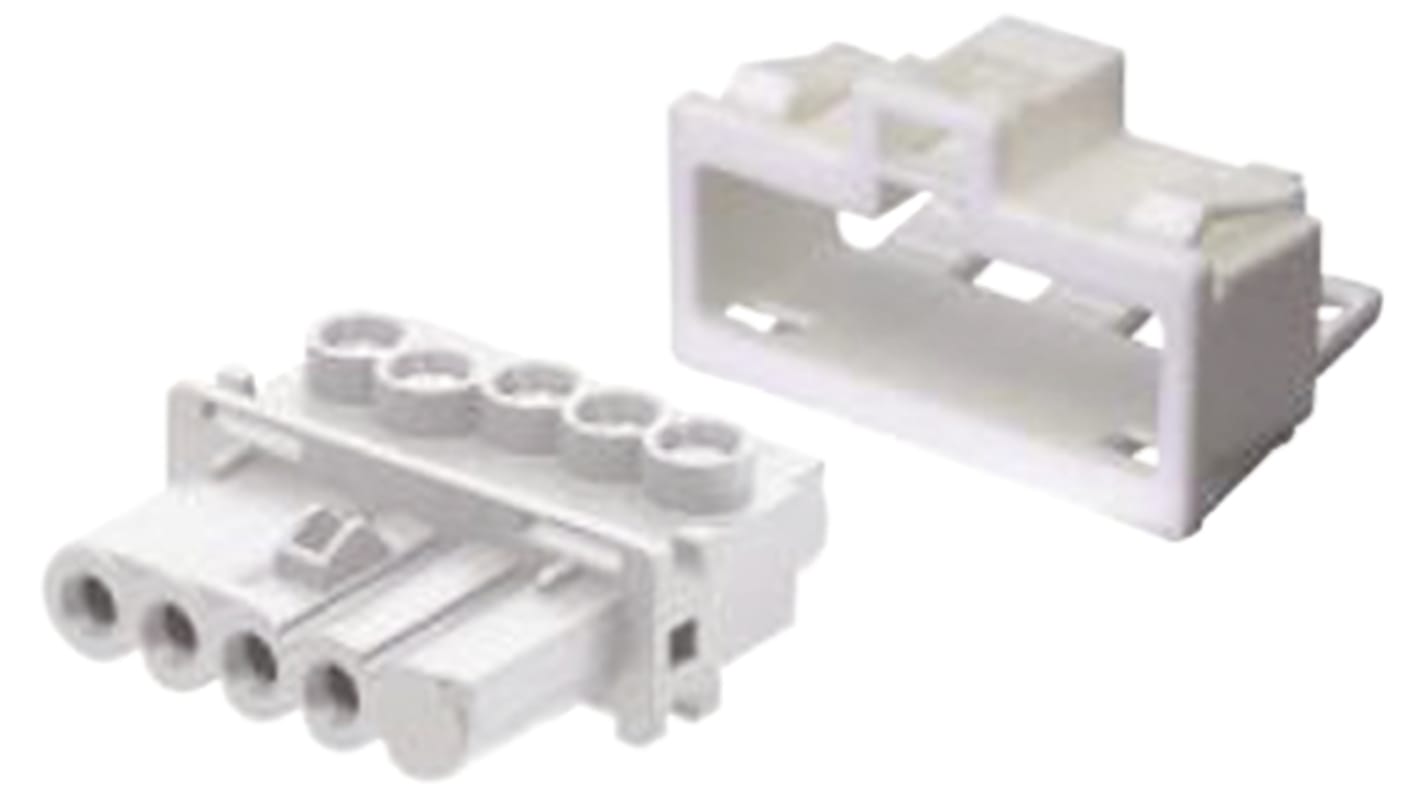

Wieland, Gesis Female 4 Pole Connector, Panel Mount, with Strain Relief, Rated At 16A, 400 V

  • RS Stock No. 399-533
  • Mfr. Part No. 91.941.9053.0
  • Brand Wieland
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Panel Mount Plugs and Sockets

Available in 2, 3, 4 & 5 pole versions
Screw connection
Snap into a cut out in a panel wall (Material thickness 0.5 – 1.5mm)
Integrated locking device

Approvals

Din VDE 0606 Din VDE 0627 (5 pole)

GST15i Mini Compact Connector System

A pluggable electrical installation system designed for confined spaces. Ideal for general electrical wiring distribution and lighting applications. 2, 3, 4 or 5 pole schemes can be implemented using just a small number of components. The system complements the existing, industry standard, ST and GST connector systems but is physically smaller whilst maintaining the 250V 16A rating.

Rated Voltage 250-400V ac
Rated Current 16A
Instalation material Thermoplastic (halogen free)
Contact material Brass (plated)
Operation temperature 100°C
Connection cycles 50 to 100 (at 16A resistive load)
IP20

Approvals

Din VDE 0606 Din VDE 0627 (5 pole)

Specifications
Attribute Value
Pole Format 4
Series Gesis
Gender Female
Plug/Socket Socket
Colour White
Type Connector
Mounting Type Panel Mount
Current Rating 16A
Voltage Rating 400 V
IP Rating IP20
Wire Size 0.5 → 1.5 mm²
Strain Relief Yes
Termination Method Screw Down
Contact Material Brass
Contact Plating Silver
26 In stock - FREE next working day delivery available
Price Each
£ 2.72
(exc. VAT)
£ 3.26
(inc. VAT)
Units
Per unit
1 +
£2.72
