Light Curtain Receiver, 30mm Resolution

  • RS Stock No. 913-9286
  • Mfr. Part No. C2C-EA12030A10000
  • Brand Sick
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

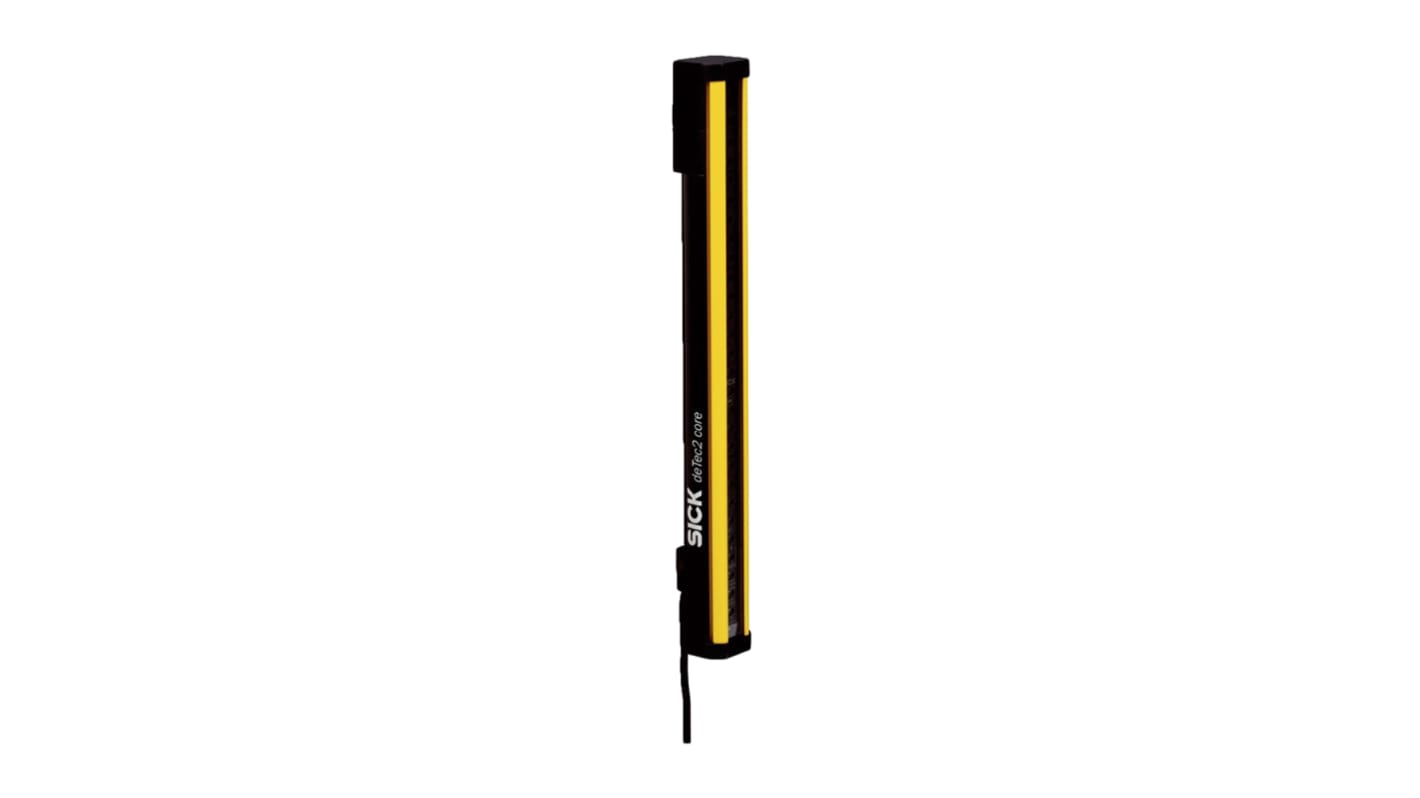

Sick Light Curtain Receiver

The Sick deTec2 core series is a 30mm light curtain with an innovative bracket system and no blind zones. The rear of the safety light curtain has a half-rounded contour that allows the brackets to be positioned in any location on the housing. The integrated LED displays, diagnostic functions, and automatic distance measurements of the deTec2 core reduce costs and save time during installation.

Features and Benefits

Simple assembly with innovative mounting
Integrated LED display
Protective field height of 1200mm
Automatic calibration on the protective field width up to 10m range
Operating temperature ranges between -30°C and +55°C
Flexi loop-compatible M12 male connector

Applications

Handling and assembly
Food
Beverages
Packaging machines.

Certifications

IP65 rated
IP67 rated
CE certified
UL listed

Specifications
Attribute Value
Range DeTec2 Core
Beam Resolution 30mm
Component Type Receiver
Safety Type 2
SIL IEC 61508 1
PL EN ISO 13849-1 C
Protective Height 1200mm
Minimum Scanning Distance 0m
Maximum Scanning Distance 10 (Minimum) m, 12 (Typical) m
Maximum Response Time 12 ms
Supply Voltage 24 V dc
Height 30.7mm
Dimensions 1213 x 34 x 30.7 mm
Application Body, Hand
Width 34mm
Terminal Type 5-Pin M12 Connector
Length 1.213m
Available to back order for despatch 29/07/2020
Price Each
Was £640.73
£ 576.66
(exc. VAT)
£ 691.99
(inc. VAT)
Units
Per unit
1 +
£576.66
