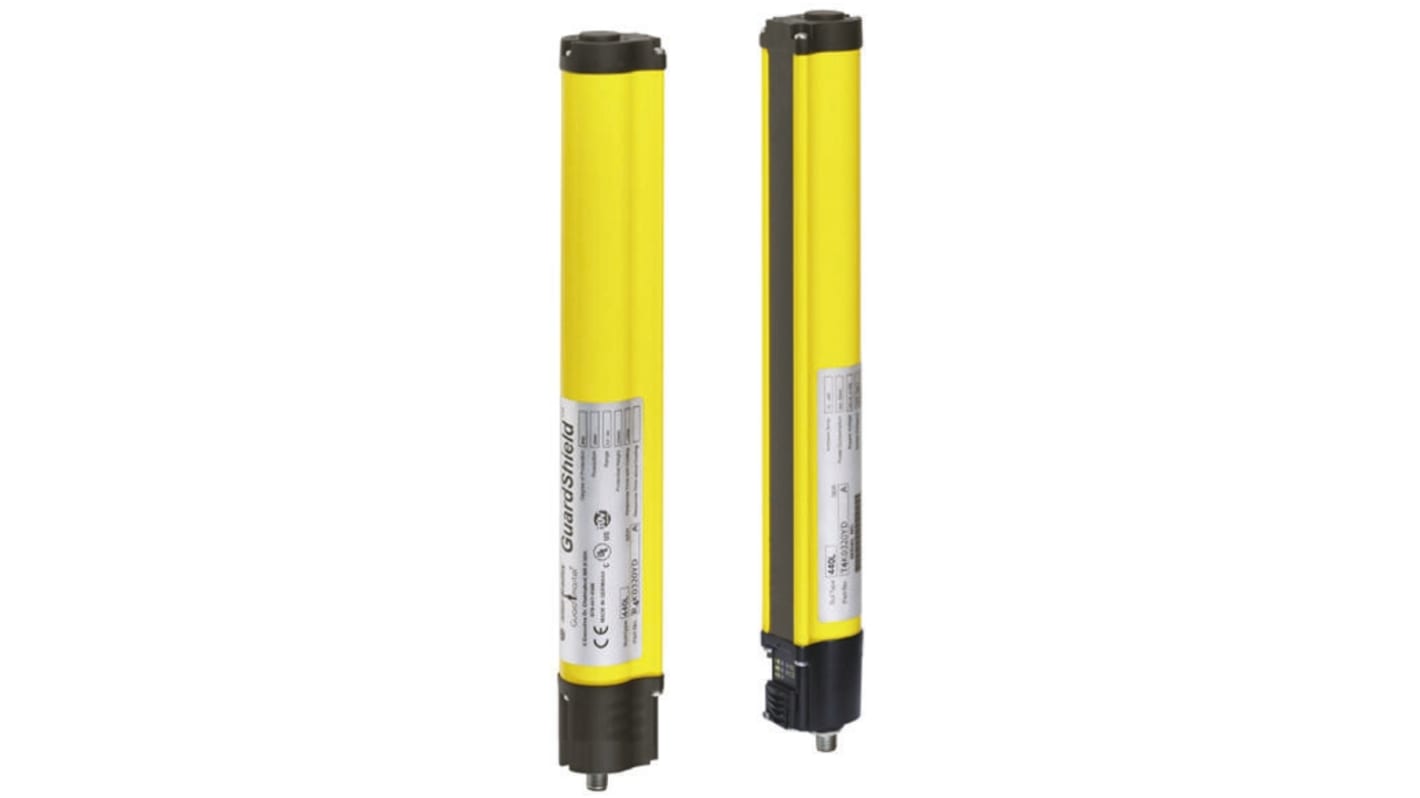

Allen Bradley Guardmaster 440 L Series GuardShield Light Curtain, Sender & Receiver, 48 Beam(s), 30mm Resolution
- RS Stock No.:
- 492-2544
- Mfr. Part No.:
- 440L-P4K0960YD
- Brand:
- Allen Bradley Guardmaster
Available to back order for despatch 07/06/2024
Added
Price Each
£3,373.93
(exc. VAT)
£4,048.72
(inc. VAT)
Units | Per unit |
1 + | £3,373.93 |
- RS Stock No.:
- 492-2544
- Mfr. Part No.:
- 440L-P4K0960YD
- Brand:
- Allen Bradley Guardmaster
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- US
Product Details
440L, Type 4, Hand Protection
DIP switch selectable modes of operation located beneath a security door in the end caps offer features that include:
Fixed blanking (teachable)
Floating blanking (one or two beam)
Beam coding
start/restart interlock
External device monitoring (EDM)
Two safety solid state and one auxillary non-safety outputs
Easy maintenance with the Quick Disconnect cables (4 pin for the sender, 8 pin for the receiver)
Fixed blanking (teachable)
Floating blanking (one or two beam)
Beam coding
start/restart interlock
External device monitoring (EDM)
Two safety solid state and one auxillary non-safety outputs
Easy maintenance with the Quick Disconnect cables (4 pin for the sender, 8 pin for the receiver)
Installation and operation of this safety device must be in strict accordance with accompanying operating instructions
Note
When ordering both a sender and receiver are included. In addition, a sender cable and a receiver cable will be required. For suitable safety relays, see the "Minotaur" range of products (e.g 447-5587)
Standards
IEC/EN61496 parts 1 & 2, Type 4 ESPE and EN954-1 Cat 4
Approvals
UL; TUV
Light Curtain
Specifications
Attribute | Value |
---|---|
Range | GuardShield |
Series | 440 L |
Beam Resolution | 30mm |
Component Type | Receiver, Sender |
Safety Type | 4 |
SIL IEC 61508 | 3 |
PL EN ISO 13849-1 | e |
Number of Beams | 48 |
Protective Height | 960mm |
Minimum Scanning Distance | 0.3m |
Maximum Scanning Distance | 16m |
Maximum Response Time | 20 ms |
Length | 52mm |
Height | 1112mm |
Supply Voltage | 24 V dc |
Terminal Type | 4-Pin M12 Connector, 8-Pin M12 Connector |
Features | Beam Coding, EDM, Fixed Blanking, Floating Blanking, Start/Restart Interlock |
Application | Hand |
Dimensions | 42 x 52 x 1112 mm |
Width | 42mm |
