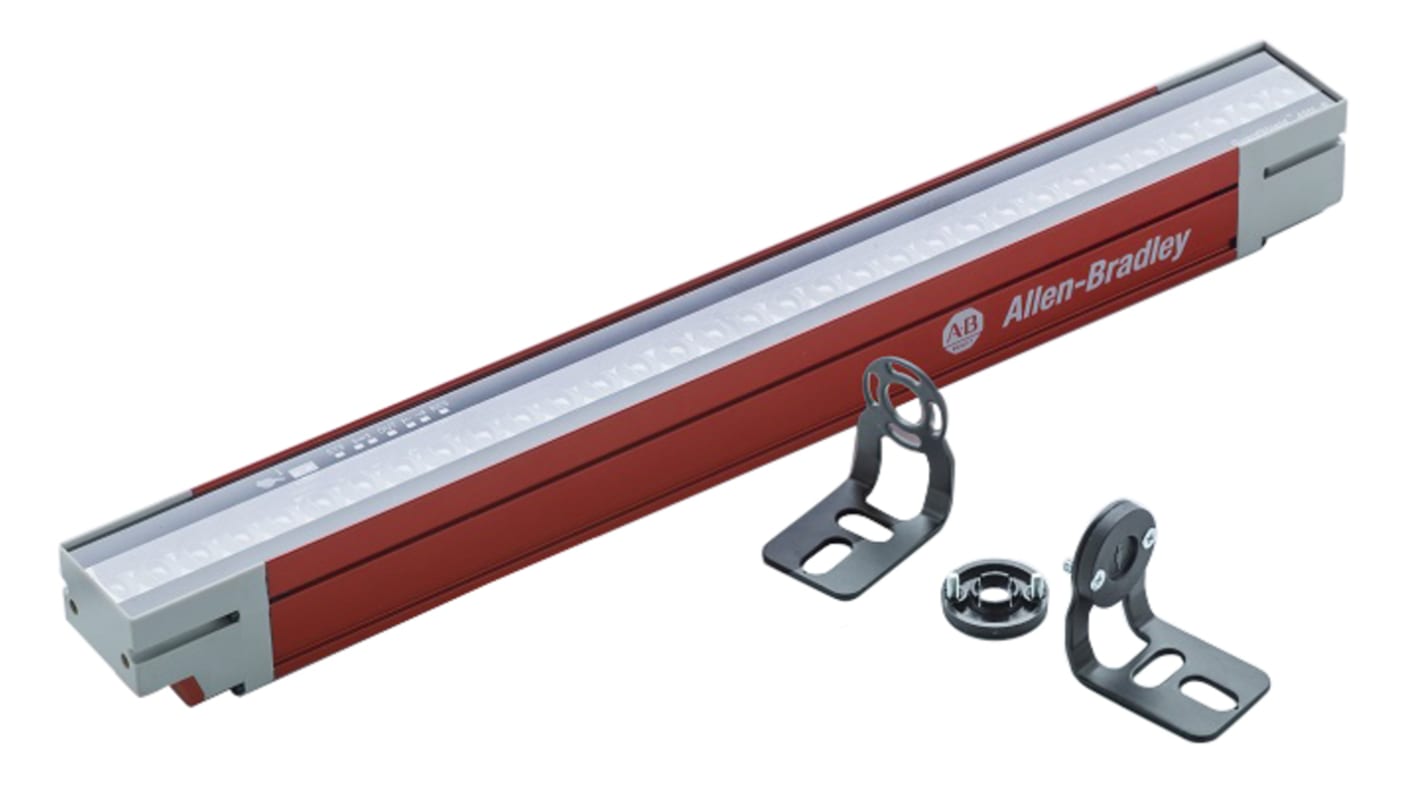

450L Light Curtain Transceiver, 16 Beams, 30mm Resolution

Technical Reference
Legislation and Compliance
RoHS Status: Exempt
COO (Country of Origin): DE
Product Details

Bulletin 450L GuardShield POC safety light curtains are unlike traditional safety light curtains, which are based on separate transmitter and receiver units. This next generation light curtain system features patented technology, which allows each transceiver to be used as a transmitter or receiver via an innovative plug-in module.

Each transceiver can be used either as a transmitter or receiver via an innovative plug-in module
Features an active protective field that senses over the entire length of a transceiver
Offers a wide range of protection heights 150…1950 mm in increments of 150 mm
Features a compact housing design 30 x 30 mm

450L-B Guard Shield 30mm (1.18 in.), 900 mm (35.46 in.)

Specifications
Attribute Value
Range GuardShield
Series 450L
Beam Resolution 30mm
Component Type Transceiver
Safety Type 4
SIL IEC 61508 3
PL EN ISO 13849-1 E
Number of Beams 16
Protective Height 900mm
Minimum Scanning Distance 0.9m
Maximum Scanning Distance 6.5m
Maximum Response Time <13 ms
Supply Voltage 24 V dc
Features IEC 62061, IP65 Enclosure Rating TUV Certified PL e, Monitor & Troubleshoot via Connected Components Workbench Software, SIL cl3 per EN ISO 13849-1, Type 4 IEC 61496-1/-2
Application Mechanical Protective Devices
Length 985mm
Height 30mm
Terminal Type Plug-In
Dimensions 985 x 30 x 30 mm
Width 30mm
1 In stock - FREE next working day delivery available
Price Each
£ 407.17
(exc. VAT)
£ 488.60
(inc. VAT)
Units
Per unit
1 +
£407.17
