Carlo Gavazzi VN Series Cable Mounting Level Probe

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DK
Product Details

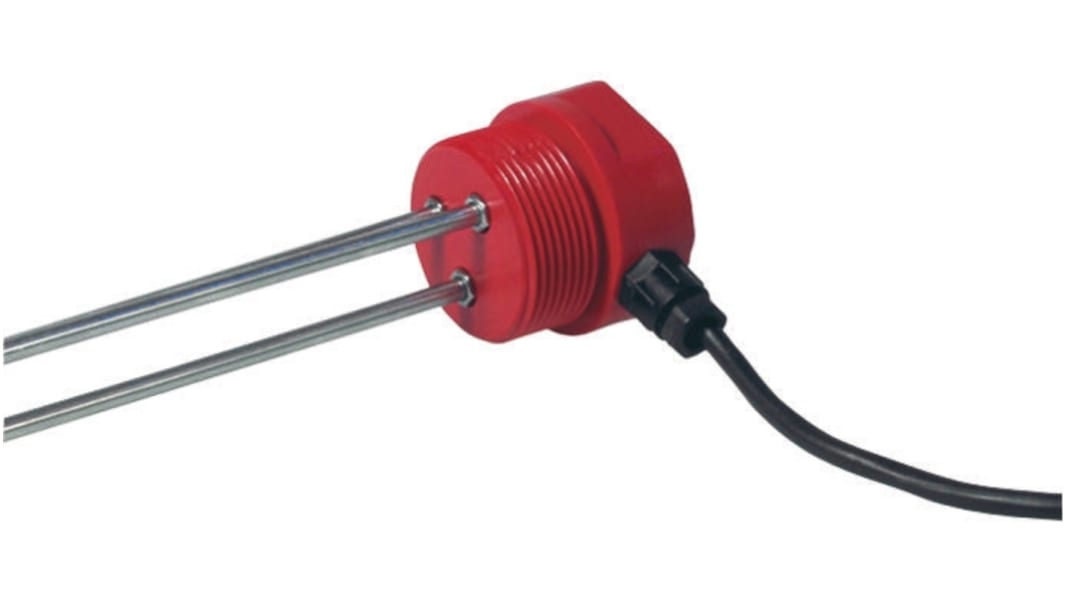

Carlo Gavazzi Level Sensor

The Carlo Gavazzi level sensor measures the level of conductivity liquid (maximum/minimum). It controls charging or discharging. Its function is determined by the amplifier relay used. This sensor is delivered with standard length electrodes that are cut off to suit the application.

Features and Benefits

It uses 3 electrodes
Cable or screw connection
Stainless steel electrode
Nylon 6 housing material
Fitted with a 2m PVC cable
•Operating temperature ranges between 0°C and 90°C

Certifications

IP67 rated

Specifications
Attribute Value
Device Type Conductive
Mounting Type Cable
Body Material Nylon 6
Cable Length 2m
Minimum Operating Temperature 0°C
Maximum Operating Temperature +90°C
Maximum Pressure 10bar
Series VN
61 In stock - FREE next working day delivery available
Price Each
£ 53.35
(exc. VAT)
£ 64.02
(inc. VAT)
Units
Per unit
1 - 4
£53.35
5 - 9
£51.71
10 +
£50.05
