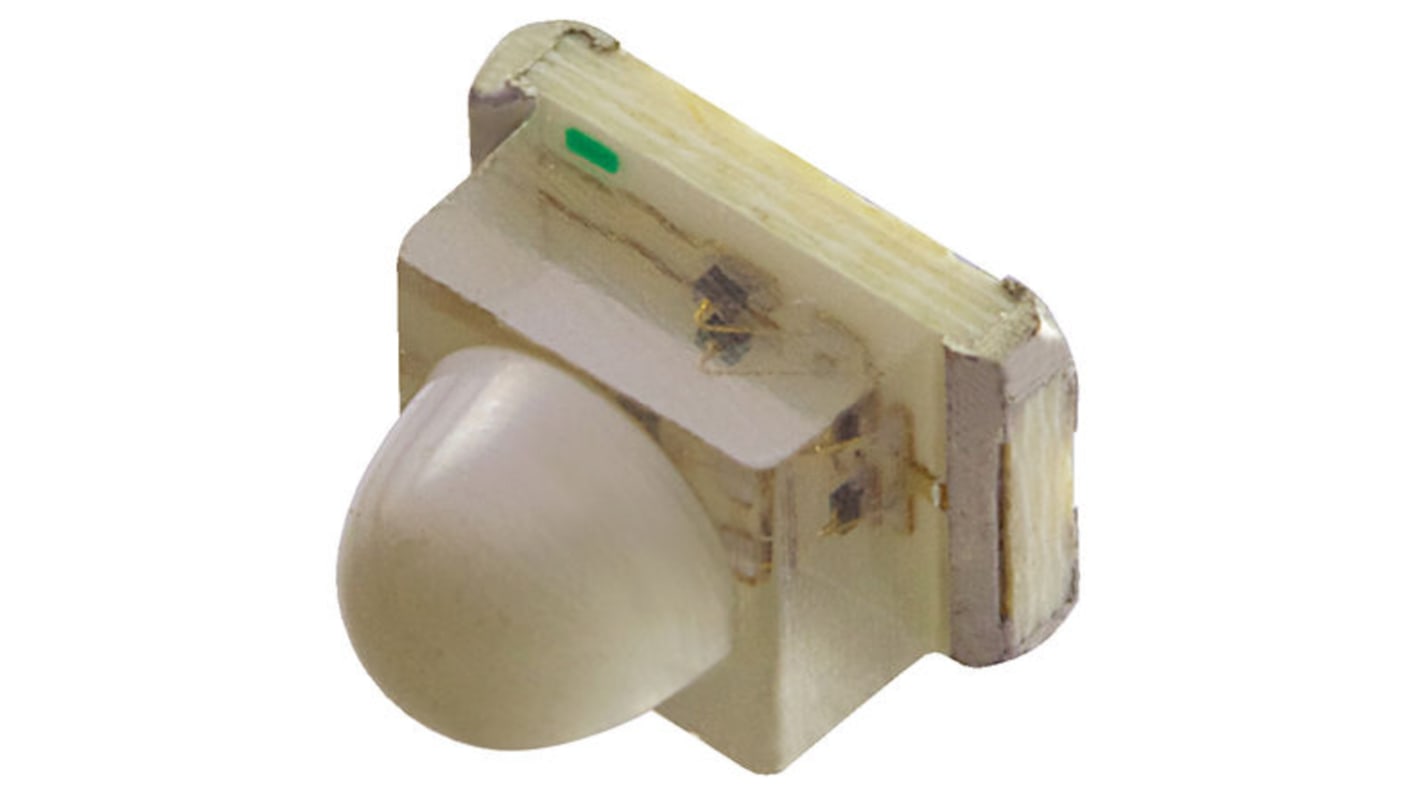

Kingbright2.5 V, 4.1 V Green & Yellow LED 3020 (1208) SMD, KPBDA-3020SYKZGC-PF
- RS Stock No.:
- 860-9983
- Mfr. Part No.:
- KPBDA-3020SYKZGC-PF
- Brand:
- Kingbright
Discontinued product
- RS Stock No.:
- 860-9983
- Mfr. Part No.:
- KPBDA-3020SYKZGC-PF
- Brand:
- Kingbright
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Kingbright SMT Right Angle Package
This family of LEDs, from Kingbright, are side looking surface mount (SMD) devices. They are available in single, full and bi-colour options from a variety of package sizes. There are also a range of different lens types. Suitable applications for the side looking LEDs include backlighting and indicators.
Side-looking LEDs
Right angle surface mounted (SMD)
Variety of colour options
Right angle surface mounted (SMD)
Variety of colour options
Visible Light LEDs, Kingbright
Specifications
Attribute | Value |
|---|---|
| LED Colours | Green, Yellow |
| Package Type | 3020 (1208) |
| Mounting Type | Surface Mount |
| Number of LEDs | 2 |
| Forward Voltage | 2.5 V, 4.1 V |
| Luminous Intensity | 800 mcd, 900 mcd |
| Number of Pins | 3 |
| Viewing Angle | 15 ° |
| Lens Shape | Dome |
| Dominant Wavelength | 525 / 590 nm |
| Lens Colour | Clear |
| Dimensions | 3 x 2 x 2.8mm |
