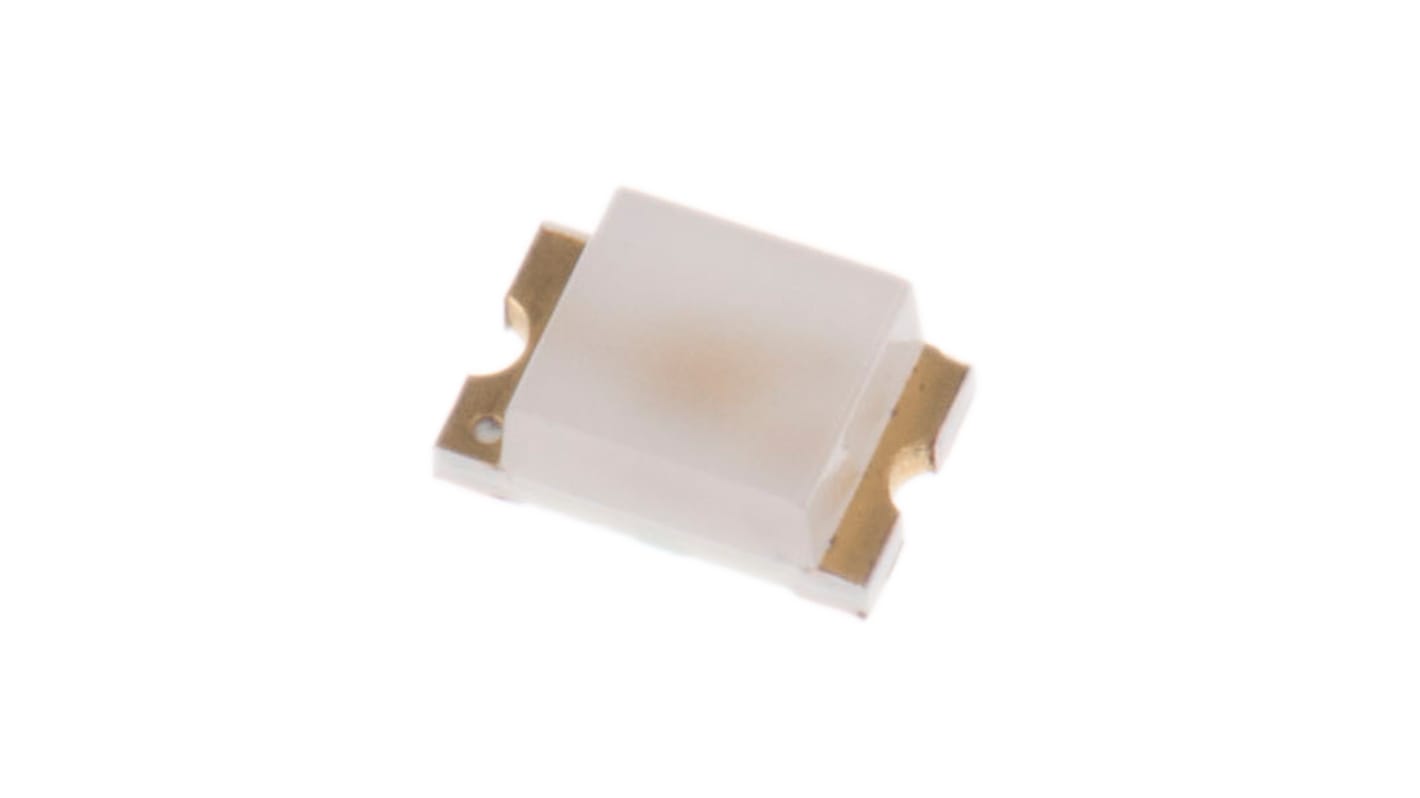

3.4 V Blue LED 2012 (0805) SMD, Broadcom HSMR-C170

  • RS Stock No. 691-0442
  • Mfr. Part No. HSMR-C170
  • Brand Broadcom
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Avago HSMx-C170 Series LEDs

The HSMx-C170 series, from Avago Technologies, are surface mount (SMT) Chip LEDs. They have the widely used 2.0 x 1.25 mm foot-print with 0.8 mm profile.
The HSMx-C170 chip LEDs are designed in an industry standard package for ease of handling and use. Various different LED colours are available in nine compact, single colour packages. Suitable applications for the HSMx-C170 Chip LEDs include; keypad backlighting, push button backlighting, LCD backlighting, symbol backlighting and front panel indicators.

Features of the HSMx-C170 series:
- Compact package
- Industry standard 0805 footprint
- Viewing angle: 170°
- Compatible with IR solder
- Diffused optics
- Operating temperature range of -40°C to +85°C
- Various colours available

Visible Light LEDs, Avago Technologies

Specifications
Attribute Value
LED Colours Blue
Package Type 2012 (0805)
Mounting Type Surface Mount
Number of LEDs 1
Forward Voltage 3.4 V
Luminous Intensity 55 mcd
Number of Pins 2
Viewing Angle 140 °
Lens Shape Rectangle
Dominant Wavelength 473 nm
Dimensions 2 x 1.25 x 0.8mm
Lens Colour Clear
412 In stock for FREE next working day delivery
Price Each (In a Pack of 2)
£ 0.655
(exc. VAT)
£ 0.786
(inc. VAT)
Units
Per unit
Per Pack*
2 +
£0.655
£1.31
*price indicative
