- RS Stock No.:
- 654-4360
- Mfr. Part No.:
- LG P47K-G2K1-24
- Brand:
- ams OSRAM
250 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 50)
£0.144
(exc. VAT)
£0.173
(inc. VAT)
Units | Per unit | Per Pack* |
50 - 550 | £0.144 | £7.20 |
600 - 1450 | £0.126 | £6.30 |
1500 + | £0.108 | £5.40 |
*price indicative |
- RS Stock No.:
- 654-4360
- Mfr. Part No.:
- LG P47K-G2K1-24
- Brand:
- ams OSRAM
Technical Reference
Legislation and Compliance
Product Details

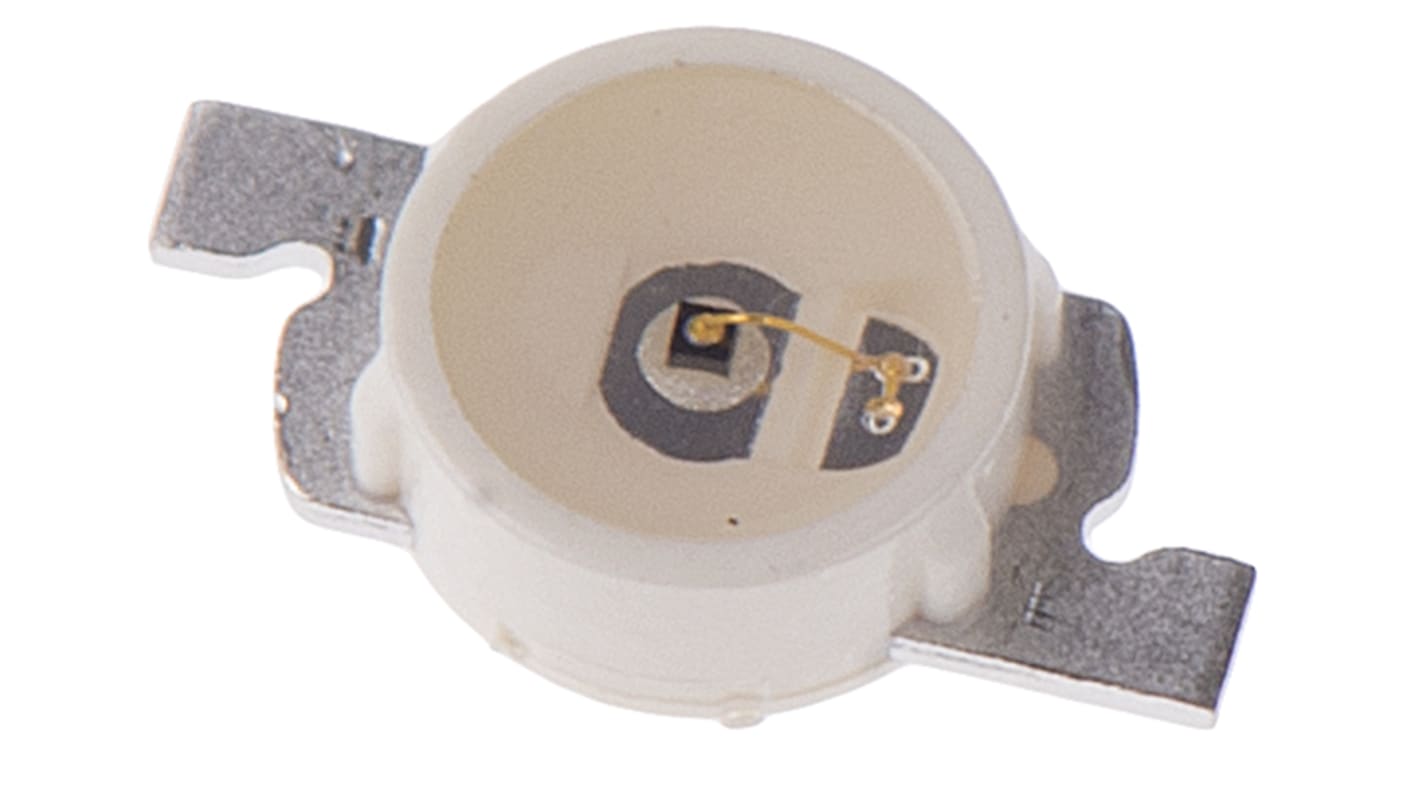

OSRAM PointLED Series LEDs
The POINTLED series of LEDs, from Osram Opto Semiconductors, has a diameter of only 2mm so fits easily into a simple drill hole to sit flat against the PCB. Featuring a symmetrical radiation pattern, these versatile LEDs are ideal for applications such as: keypad illumination, display backlighting, coupling to light guides or automotive interior lighting.
2mm diameter package size
Viewing angle 120°
Reverse through-hole mount ideal for flat backlight (stock no. 654-6164 is Top mount)
Viewing angle 120°
Reverse through-hole mount ideal for flat backlight (stock no. 654-6164 is Top mount)
Note
Amber LEDs – Originally designed for use in automotive brake-light applications, OSRAM amber LEDs can appear red due to a high dominant wavelength value. Refer to a dominant wavelength colour chart to find your chosen LED colour.
Specifications
Attribute | Value |
---|---|
LED Colours | Green |
Mounting Type | Surface Mount |
Number of LEDs | 1 |
Forward Voltage | 1.8 V |
Luminous Intensity | 5.6 mcd |
Number of Pins | 2 |
Viewing Angle | 120 ° |
Luminous Flux | 0.015 lm |
Lens Shape | Round |
Dominant Wavelength | 570 nm |
Dimensions | 3.4 x 1.9 x 0.8mm |
Series | PointLED |
Lens Colour | Clear |
