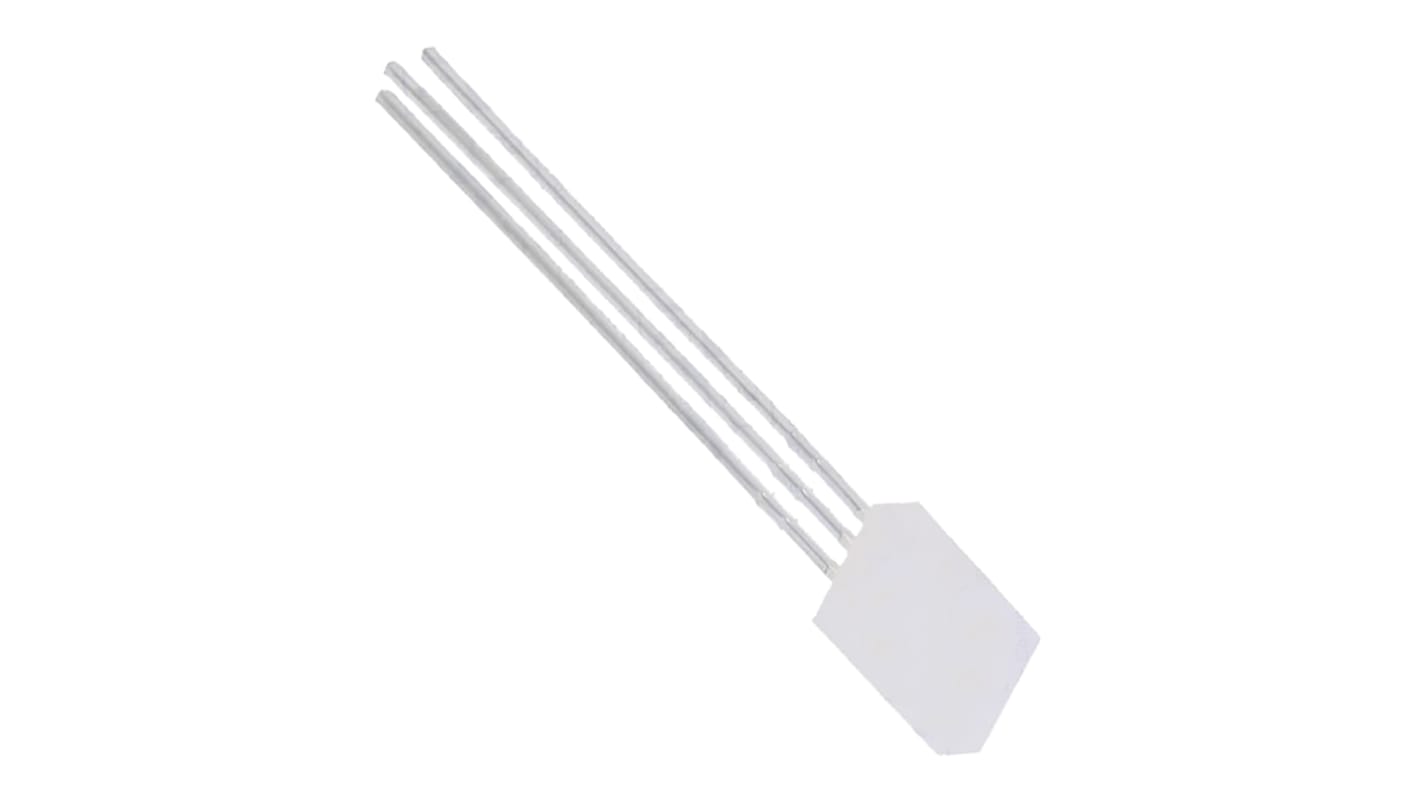

2.5 V Green & Red LED Rectangular Through Hole, Kingbright L-117EGWT

  • RS Stock No. 619-4943
  • Mfr. Part No. L-117EGWT
  • Brand Kingbright
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

Kingbright Through Hole Rectangular LED Series

The rectangular series of LEDs, from Kingbright, are reliable and rugged devices in a rectangular package. These LEDs offer excellent uniformity of light output, low power consumption and they have a long life time from solid state reliability. The rectangular LEDs are suitable for level indicators and are I.C. compatible. Available in a variety of package sizes, the rectangular LEDs also come in different colour options.

Viewing angle: 110°

Visible Light LEDs, Kingbright

Specifications
Attribute Value
LED Colours Green, Red
Package Type Rectangular
Mounting Type Through Hole
Number of LEDs 2
Forward Voltage 2.5 V
Luminous Intensity 10 mcd
Number of Pins 2
Viewing Angle 110 °
Lens Shape Rectangle
Dominant Wavelength 568 / 625 nm
Dimensions 2 x 5mm
Lens Colour Clear
350 In stock for FREE next working day delivery
Price Each (In a Pack of 50)
£ 0.174
(exc. VAT)
£ 0.209
(inc. VAT)
Units
Per unit
Per Pack*
50 - 200
£0.174
£8.70
250 - 450
£0.146
£7.30
500 - 950
£0.125
£6.25
1000 - 2450
£0.113
£5.65
2500 +
£0.104
£5.20
*price indicative
