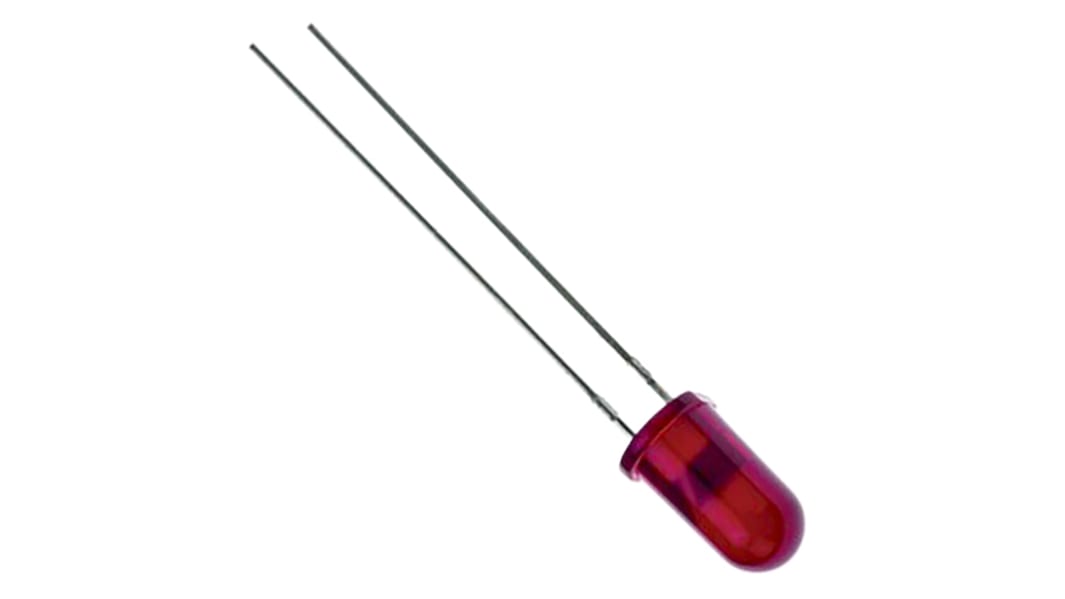

2.2 V Red LED 5mm Through Hole, Ledtech L07R5000H1D1

  • RS Stock No. 228-5067
  • Mfr. Part No. L07R5000H1D1
  • Brand Ledtech
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Ledtech LxxR5000H Series LEDs

Ledtech's LxxR5000H family are 5mm round LED lamps with long leads and are 1/2 diffused. They come in a variety of colour options.

Features of the LxxR5000H LEDs:
- Low current requirements
- High light output
- Reliable and rugged
- IC compatible

Visible Light LEDs, Ledtech

Specifications
Attribute Value
LED Colours Red
Package Type 5mm (T-1 3/4)
Mounting Type Through Hole
Number of LEDs 1
Forward Voltage 2.2 V
Luminous Intensity 650 mcd
Number of Pins 2
Viewing Angle 30 °
Lens Shape Round
Dominant Wavelength 660 nm
Dimensions 5mm
Lens Colour Red
480 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£ 0.514
(exc. VAT)
£ 0.617
(inc. VAT)
Units
Per unit
Per Pack*
5 - 20
£0.514
£2.57
25 - 95
£0.298
£1.49
100 - 245
£0.266
£1.33
250 - 495
£0.242
£1.21
500 +
£0.226
£1.13
*price indicative
