- RS Stock No.:
- 193-4752
- Mfr. Part No.:
- HLMP-Q106
- Brand:
- Broadcom
- RS Stock No.:
- 193-4752
- Mfr. Part No.:
- HLMP-Q106
- Brand:
- Broadcom
Technical Reference
Legislation and Compliance
Product Details

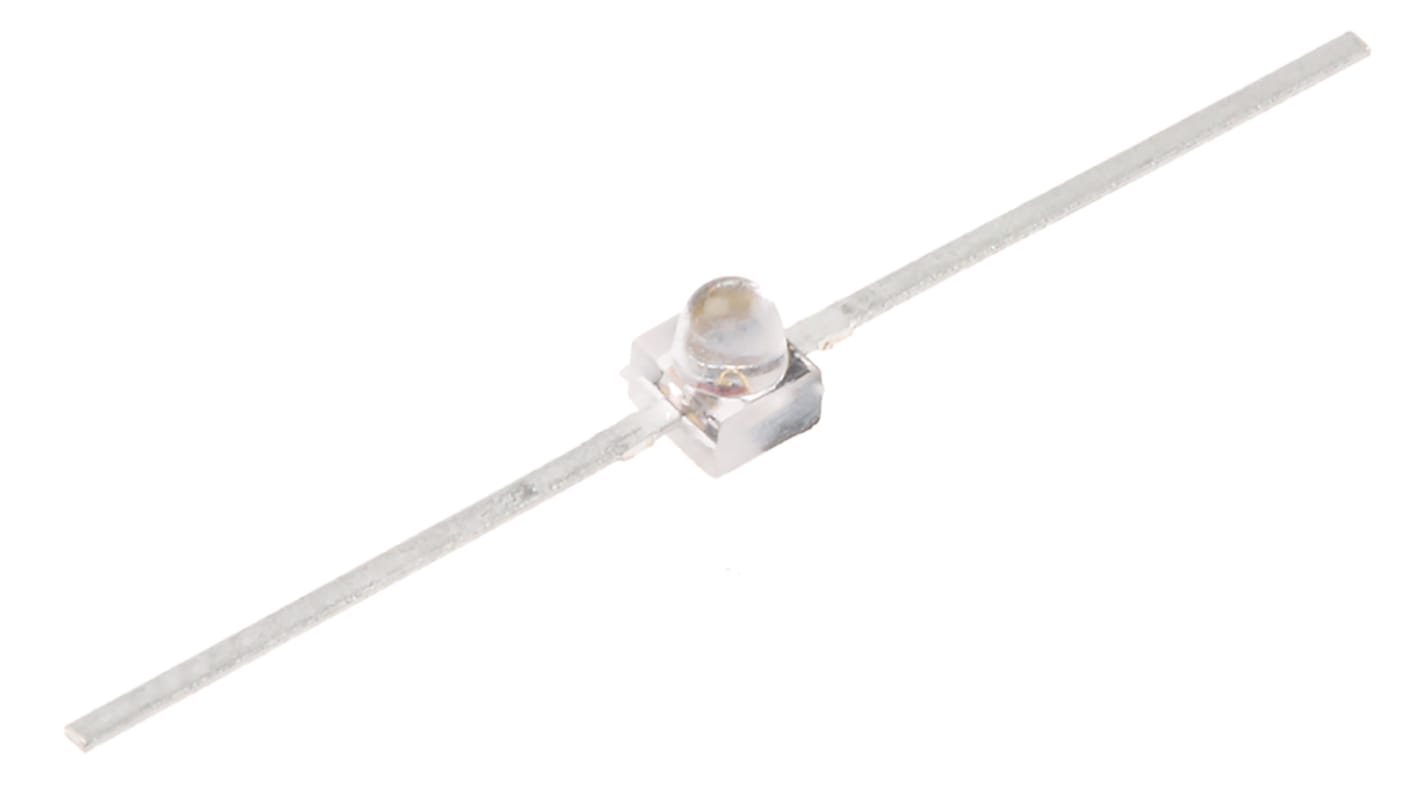

Avago HLMx-Qxxx Series LEDs
The HLMx-Qxxx series, from Avago Technologies, are subminiature high performance AllnGaP LED lamps. They HLMx-Qxxx packages are dome lamps which use an untinted, non-diffused lens. This provides a high luminous intensity within a narrow radiation pattern. The HLMx-Qxxx family are suitable for applications where space is limited.
Features of the HLMx-Qxxx LEDs:
- Subminiature dome package
- High brightness
- Range of current drives
- Variety of colours
- Axial leads
- Subminiature dome package
- High brightness
- Range of current drives
- Variety of colours
- Axial leads
Visible Light LEDs, Avago Technologies
Specifications
Attribute | Value |
---|---|
LED Colours | Red |
Package Type | Subminiature |
Mounting Type | Through Hole |
Number of LEDs | 1 |
Forward Voltage | 1.9 V |
Luminous Intensity | 100 mcd |
Number of Pins | 2 |
Viewing Angle | 15 ° |
Luminous Flux | 0.28 lm |
Lens Shape | Dome |
Dominant Wavelength | 644 nm |
Dimensions | 2.21 x 2.34 x 2.92mm |
Lens Colour | Clear |
