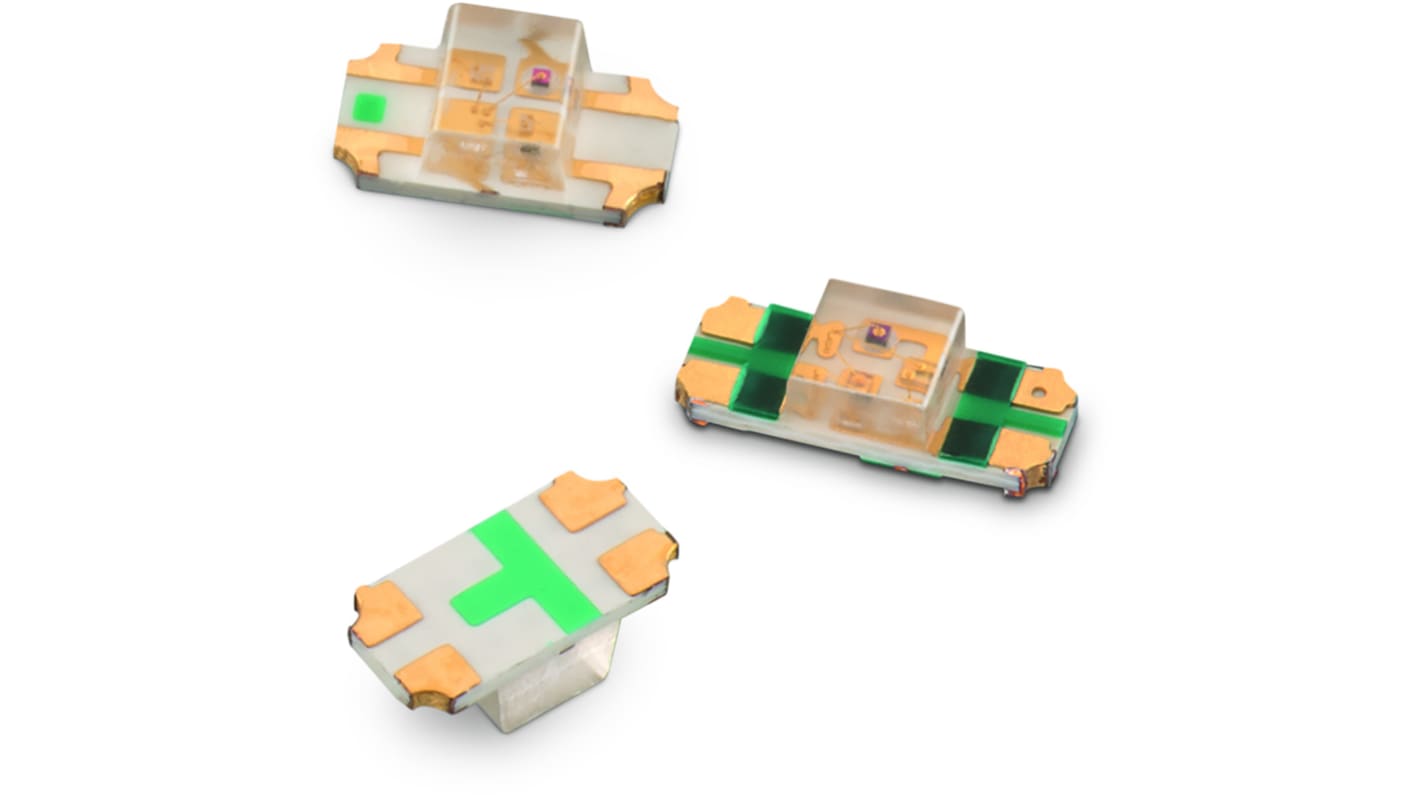

Wurth Elektronik2.4 V, 3.6 V RGB LED 3216 (1206) SMD, WL-SFRW 156120M173000
- RS Stock No.:
- 184-6965
- Mfr. Part No.:
- 156120M173000
- Brand:
- Wurth Elektronik
Available to back order for despatch 17/07/2024
Added
Price Each (On a Reel of 3000)
£0.361
(exc. VAT)
£0.433
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 - 3000 | £0.361 | £1,083.00 |
| 6000 + | £0.345 | £1,035.00 |
| *price indicative | ||
- RS Stock No.:
- 184-6965
- Mfr. Part No.:
- 156120M173000
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RGB LED
Ideal for narrow space applications
Wide viewing angle
Low power consumption
Industry standard footprint
Small package for exceptional brightness
To emit light through a small cut-out hole in PCB
Compatible with automatic placement machine
Applications
LED Front panel indicators
LCD backlighting
Backlighting for keypad, symbol and switch button
Ideal for narrow space applications
Wide viewing angle
Low power consumption
Industry standard footprint
Small package for exceptional brightness
To emit light through a small cut-out hole in PCB
Compatible with automatic placement machine
Applications
LED Front panel indicators
LCD backlighting
Backlighting for keypad, symbol and switch button
Specifications
Attribute | Value |
|---|---|
| LED Colours | RGB |
| Package Type | 3216 (1206) |
| Mounting Type | Surface Mount |
| Number of LEDs | 1 |
| Forward Voltage | 2.4 V, 3.6 V |
| Luminous Intensity | 250 (Blue) mcd, 270 (Red) mcd, 700 (Green) mcd |
| Number of Pins | 4 |
| Viewing Angle | 120 ° |
| Lens Shape | Rectangle |
| Dominant Wavelength | 470 (Blue) nm, 525 (Green) nm, 624 (Red) nm |
| Forward Current | 25mA |
| Lens Colour | Clear |
| Series | WL-SFRW |
| Dimensions | 3.2 x 1.6 x 1.1mm |
