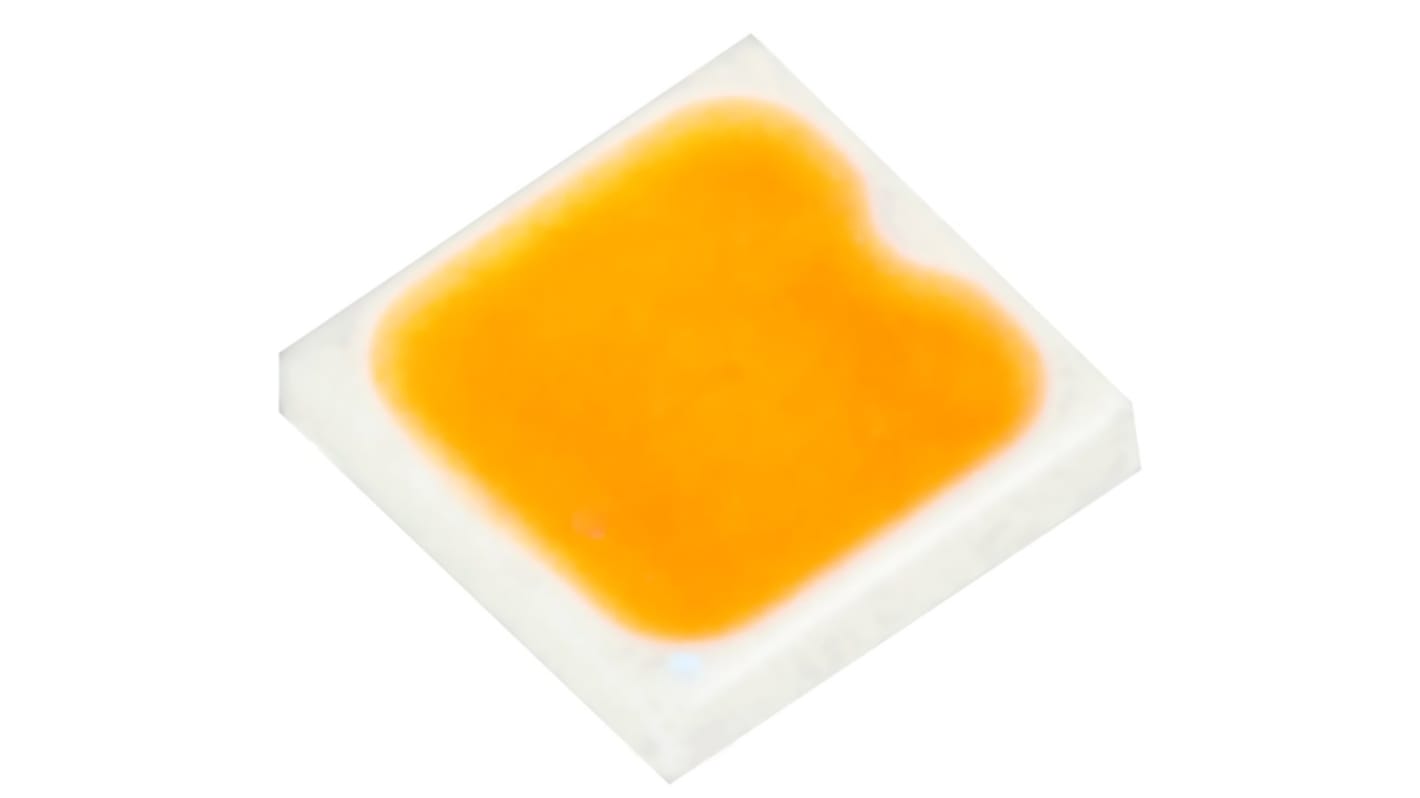

White LED Seoul Semiconductor S1S0-3030509503-0000003S-00001

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): KR
Product Details

Seoul Semiconductor LED

The Seoul semiconductor 3.05V, white, surface mount LED comes in the standard package with a length of 3.0mm, a width of 3.0mm and height of 0.6mm. It has a substrate made from a moulded plastic reflector sitting on top of a lead frame. The die is attached within the reflector cavity and the cavity is encapsulated by silicone. The package design coupled with careful selection of component materials allows this product to perform with high reliability.

Features and Benefits

• Thermally enhanced package design
• Mid-power to high power up to 0.2W
• Maximum driving current up to 150mA
• Compact package size
• High colour quality with CRI minimum 95 (R9>85)
• Pb-free reflow soldering application
• Eye safety (Exempt 5000K)
• 5000K 3-step MacAdam ellipse

Applications

• Commercial sites
• Industrial sites
• Replacement lamps - bulb, tube
• Residential sites

Specifications
Attribute Value
LED Colours White
Available to back order for despatch 16/03/2020
Price Each (On a Reel of 4500)
£ 0.206
(exc. VAT)
£ 0.247
(inc. VAT)
Units
Per unit
Per Reel*
4500 - 4500
£0.206
£927.00
9000 +
£0.192
£864.00
*price indicative
