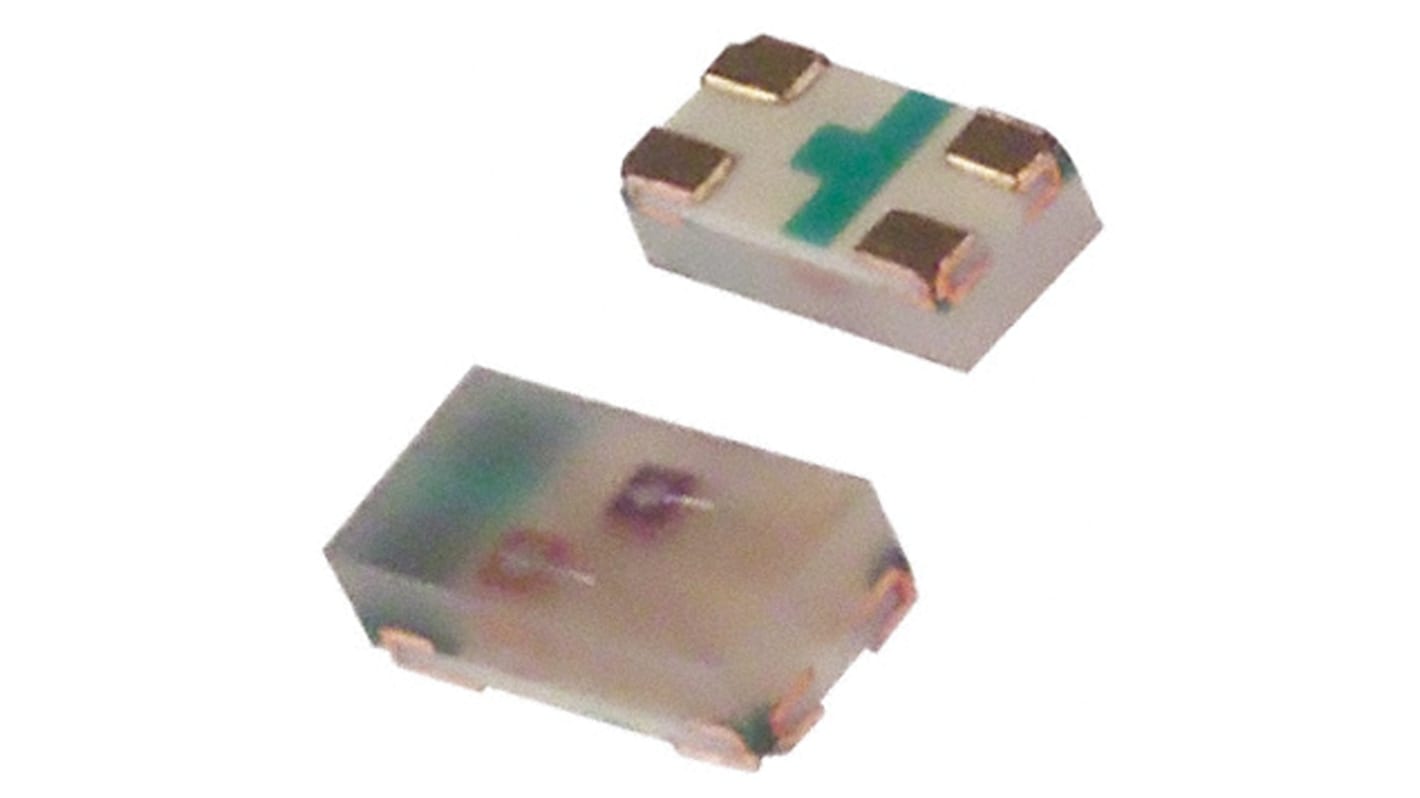

1.9 V, 3.4 V Green & Red LED 1608 (0603) SMD, Broadcom HSMF-C163

  • RS Stock No. 178-2950
  • Mfr. Part No. HSMF-C163
  • Brand Broadcom
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Avago HSMF-C16x Series ChipLEDs

The HSMF-C16x series, from Avago Technologies, are a series of miniature bi-colour surface mount (SMT) ChipLEDs. The HSMF-C16x LEDs are in the compact 0603 footprint to allow for a high density of components on a board. Available in a wide variety of colour options, these LEDs have diffused optics. Suitable applications for the HSMF-C16x series include; keypad backlighting, symbol indicator, LCD backlighting, pushbutton backlighting and front panel indicators.

Features of the HSMF-C16x LEDs:
- Small package: 1.6 x 0.8 x 0.5 mm (0603 package)
- Operating temperature: -40°C to +85°C
- Compatible with reflow soldering

Visible Light LEDs, Avago Technologies

Specifications
Attribute Value
LED Colours Green, Red
Package Type 1608 (0603)
Mounting Type Surface Mount
Number of LEDs 2
Forward Voltage 1.9 V, 3.4 V
Luminous Intensity 45 mcd
Number of Pins 4
Viewing Angle 120 °
Lens Shape Rectangle
Dominant Wavelength 525 nm
Dimensions 1.6 x 0.8 x 0.5mm
LED Material AlInGaP, InGaN
Lens Colour Clear
4000 In stock for FREE next working day delivery
Price Each (On a Reel of 4000)
£ 0.519
(exc. VAT)
£ 0.623
(inc. VAT)
Units
Per unit
Per Reel*
4000 +
£0.519
£2,076.00
*price indicative
