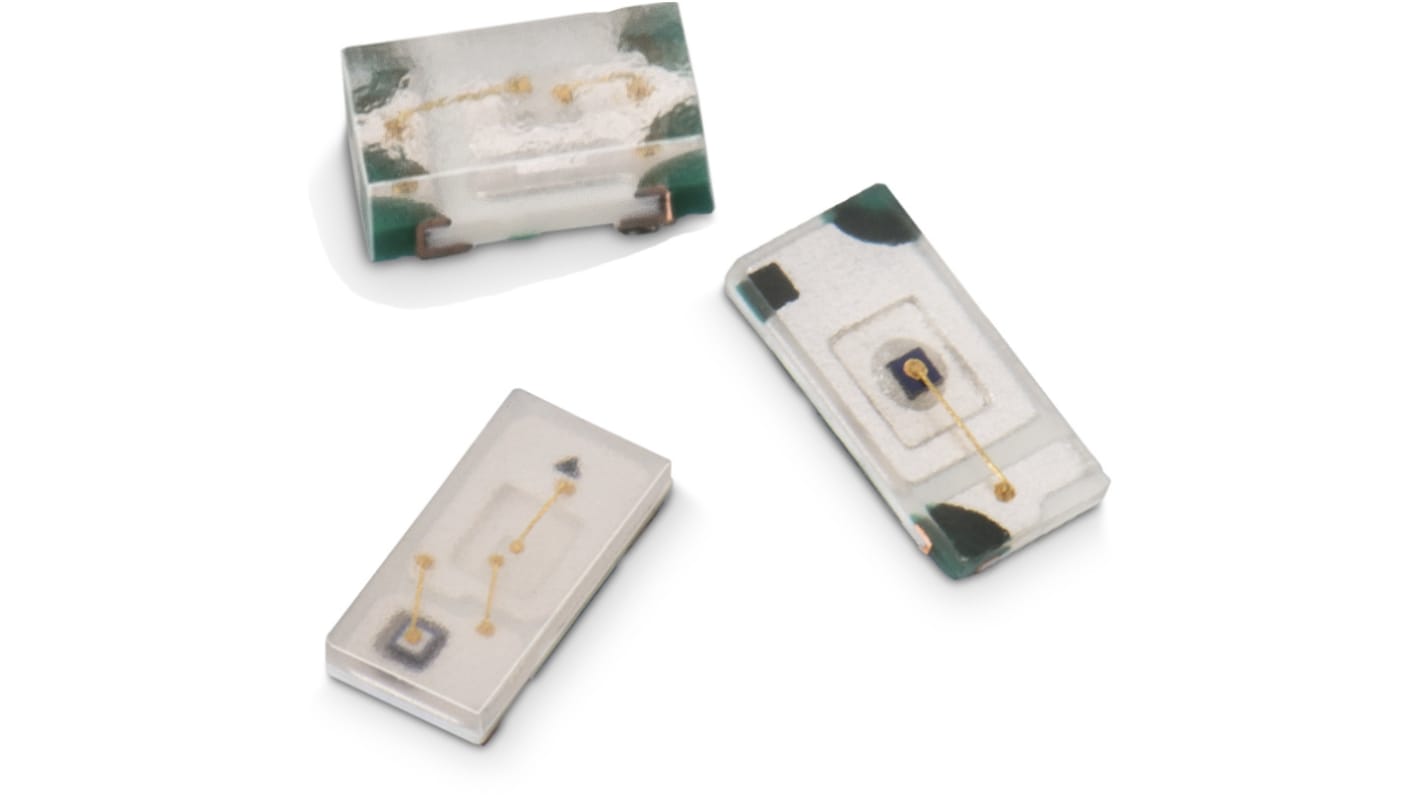

Wurth Elektronik2.4 V Yellow LED 1005 (0402) SMD, WL-SMCC 150040YS73240
- RS Stock No.:
- 176-6185
- Mfr. Part No.:
- 150040YS73240
- Brand:
- Wurth Elektronik
500 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 50)
£0.217
(exc. VAT)
£0.26
(inc. VAT)
| Units | Per unit | Per Pack* |
| 50 - 200 | £0.217 | £10.85 |
| 250 - 450 | £0.201 | £10.05 |
| 500 - 1200 | £0.195 | £9.75 |
| 1250 - 2450 | £0.189 | £9.45 |
| 2500 + | £0.184 | £9.20 |
| *price indicative | ||
- RS Stock No.:
- 176-6185
- Mfr. Part No.:
- 150040YS73240
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Characteristics
Compatible to IR reflow soldering
Miniaturized color effects
Size 0402
Super thin Chip LED of 0.4 mm with exceptional brightness
Industry standard footprint
Waterclear lens
High reliabilit
Size 0603
Industrial platform – 1.6 x 0.8 mm
Ultra thin 0.2 mm
PCB based
Temperature Tj = 115°C / 125°C
Applications
Front panel backlighting
Navigation and LCD backlighting
Size 0402
Cellphone display
Display for industrial control systems
Traffic display
Size 0603
Office Automation
Home appliances
Industrial equipment
Industrial switches and button backlighting
Dashboards
Entertainment consoles
Small pixel indoor signs
Compatible to IR reflow soldering
Miniaturized color effects
Size 0402
Super thin Chip LED of 0.4 mm with exceptional brightness
Industry standard footprint
Waterclear lens
High reliabilit
Size 0603
Industrial platform – 1.6 x 0.8 mm
Ultra thin 0.2 mm
PCB based
Temperature Tj = 115°C / 125°C
Applications
Front panel backlighting
Navigation and LCD backlighting
Size 0402
Cellphone display
Display for industrial control systems
Traffic display
Size 0603
Office Automation
Home appliances
Industrial equipment
Industrial switches and button backlighting
Dashboards
Entertainment consoles
Small pixel indoor signs
Specifications
Attribute | Value |
|---|---|
| LED Colours | Yellow |
| Package Type | 1005 (0402) |
| Mounting Type | Surface Mount |
| Number of LEDs | 1 |
| Forward Voltage | 2.4 V |
| Luminous Intensity | 70 mcd |
| Number of Pins | 2 |
| Viewing Angle | 120 ° |
| Lens Shape | Rectangle |
| Dominant Wavelength | 590 nm |
| Lens Finish | Clear |
| Lens Colour | Clear |
| Series | WL-SMCC |
| Dimensions | 1 x 0.5 x 0.4mm |
| Forward Current | 30mA |
