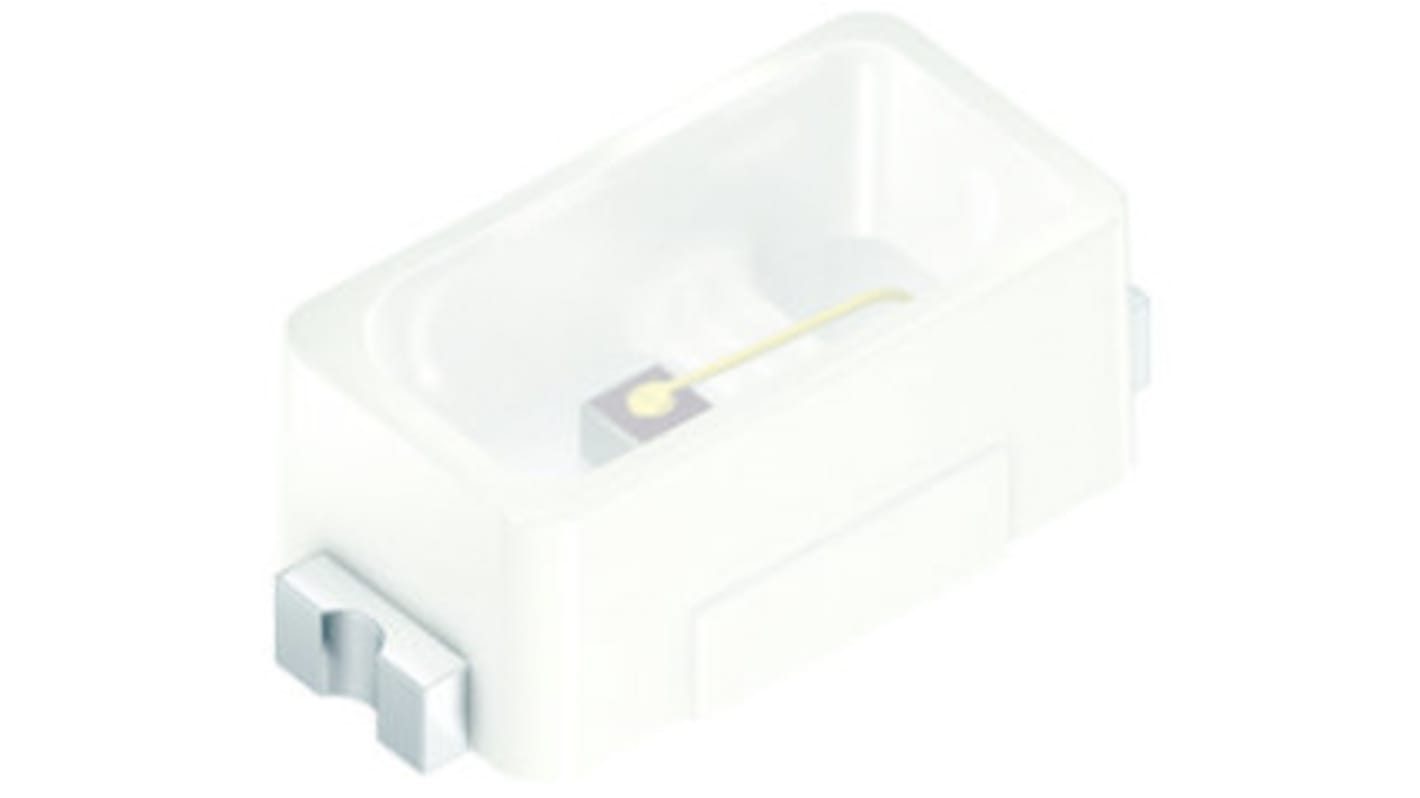

2.5 V Red LED 1608 (0603) SMD, Osram Opto TOPLED E1608 KS DELPS1.22-TIVH-68-H3Q4

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

The TOPLED E1608 expands OSRAM Opto Semi-conductors’ low power portfolio by offering one of the smallest LED Industry standard footprints in a highly reliable and well proved package concept. Its outstanding performance is suitable for a huge variety of applications especially automotive interior where a small package design with excellent reliability is needed. The TOPLED E1608 is available in different colours and brightness levels.

Cluster, Button Backlighting
Electronic Equipment
Interior Illumination e.g. Ambient Map
Package: white SMT package, colourless clear resin
Chip technology: Thinfilm
Typ. Radiation: 120° (Lambertian emitter)
colour: λdom = 628 nm (● super red)

Specifications
Attribute Value
LED Colours Red
Package Type 1608 (0603)
Mounting Type Surface Mount
Number of LEDs 1
Forward Voltage 2.5 V
Luminous Intensity 970 mcd
Number of Pins 2
Viewing Angle 120 °
Luminous Flux 3000 lm
Dominant Wavelength 637 nm
Dimensions 1.4 x 0.8 x 0.6mm
Forward Current 30mA
Series TOPLED E1608
4450 In stock for FREE next working day delivery
Price Each (In a Pack of 50)
£ 0.094
(exc. VAT)
£ 0.113
(inc. VAT)
Units
Per unit
Per Pack*
50 - 450
£0.094
£4.70
500 - 1200
£0.091
£4.55
1250 - 2450
£0.088
£4.40
2500 - 4950
£0.086
£4.30
5000 +
£0.083
£4.15
*price indicative
