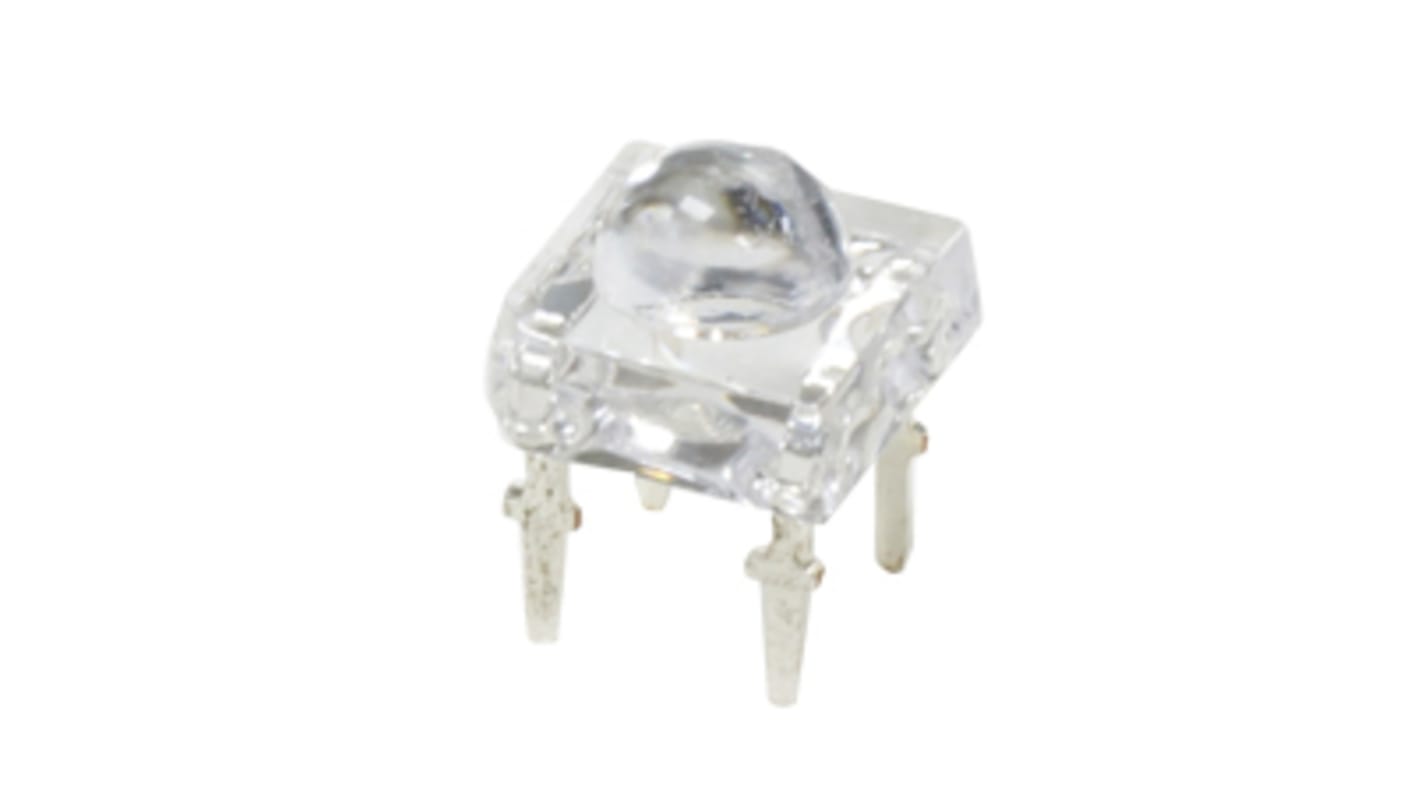

3 V, 4.4 V RGB LED Super Flux Through Hole, Bivar Orca R R50RGB-5-0080

  • RS Stock No. 174-9660
  • Mfr. Part No. R50RGB-5-0080
  • Brand Bivar
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Bivar Orca R Series Super Flux LEDs

The Orca R series, from Bivar, are through hole LEDs in 4-pin Super Flux packages. There are both dome and flat top options within the Orca R series of LEDs. Their compact and low profile design coupled with a high intensity output enables the use to reduce the number of LEDs required for an enhanced light output. Available in a variety of colour options, including RGB, this family of LEDs have a clear lens type.
High luminous intensity LED lamps for applications including: automotive exterior lighting, decorative interior or exterior lighting, speciality stage lighting and electronic signs.

Rugged four leaded 7.6mm square industry standard package
High luminous intensity
High efficiency output
Low power consumption

LED, Through Hole, 7.6mm x 7.6mm Tri-Color, Red (617nm, 3000mcd) / Green (515nm, 4000mcd) / Blue (460nm, 1000mcd), Water Clear Lens, 80 Deg Viewing Angle

4-Pin Super Flux Red, Green, and Blue LED Lamp with 5mm Dome Lens
Easy install by automatic insertion
Low Power Consumption with High Intensity Output
Uniform Light Output

Visible Light LEDs, Bivar

Specifications
Attribute Value
LED Colours RGB
Package Type Super Flux
Mounting Type Through Hole
Number of LEDs 3
Forward Voltage 3 V, 4.4 V
Luminous Intensity 200 mcd, 1000 mcd, 2000 mcd
Number of Pins 4
Viewing Angle 80 °
Lens Shape Dome
Dominant Wavelength 470 nm, 525 nm, 635 nm
Dimensions 7.6 x 7.6 x 2.5mm
Lens Colour Clear
Forward Current 80mA
Series Orca R
Lens Finish Clear
Available to back order for despatch 07/02/2020
Price Each (In a Tube of 100)
£ 2.321
(exc. VAT)
£ 2.785
(inc. VAT)
Units
Per unit
Per Tube*
100 - 100
£2.321
£232.10
200 - 400
£2.257
£225.70
500 +
£2.166
£216.60
*price indicative
