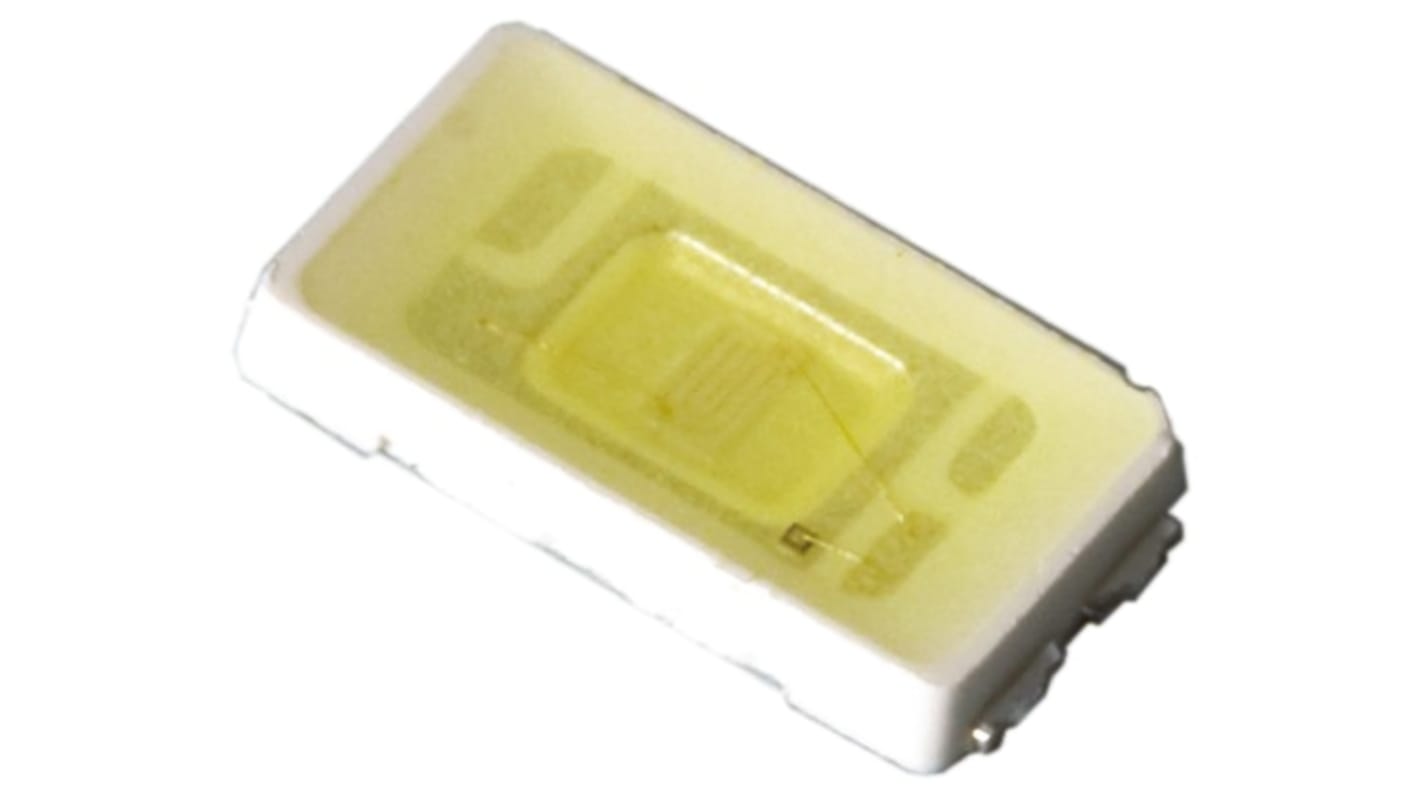

JKL Components3 V White LED SMD, ZSM-T5630-WH-01
- RS Stock No.:
- 168-3969
- Mfr. Part No.:
- ZSM-T5630-WH-01
- Brand:
- JKL Components
Available to back order for despatch 09/07/2024
Added
Price Each (On a Reel of 3000)
£0.654
(exc. VAT)
£0.785
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 - 6000 | £0.654 | £1,962.00 |
| 9000 + | £0.621 | £1,863.00 |
| *price indicative | ||
- RS Stock No.:
- 168-3969
- Mfr. Part No.:
- ZSM-T5630-WH-01
- Brand:
- JKL Components
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
JKL Components ZSM-T Series LEDs
The ZSM-T series, from JKL Components, are Topview surface mount (SMT) LEDs. Available in a range of colours, the ZSM-T LEDs are suitable for new designs or replacement of traditional lighting technology.
Top view SMT lead frame package
Wide viewing angle: 120°
Operating temperature range: -30 to +85°C
IR reflow soldering
ESD protection
Applications include: LCD lighting, rear and edge illuminating panels
Wide viewing angle: 120°
Operating temperature range: -30 to +85°C
IR reflow soldering
ESD protection
Applications include: LCD lighting, rear and edge illuminating panels
Visible Light LEDs, JKL Components
Specifications
Attribute | Value |
|---|---|
| LED Colours | White |
| Mounting Type | Surface Mount |
| Number of LEDs | 1 |
| Forward Voltage | 3 V |
| Luminous Intensity | 6.7 → 13.7 cd |
| Number of Pins | 4 |
| Luminous Flux | 20 → 41 lm |
| Lens Shape | Rectangle |
| Dimensions | 5.6 x 3 x 0.77mm |
- RS Stock No.:
- 168-3969
- Mfr. Part No.:
- ZSM-T5630-WH-01
- Brand:
- JKL Components
