14 V White LED SMD, Cree XLamp MK-R MKRAWT-02-0000-0D0HH20E5

  • RS Stock No. 162-7789
  • Mfr. Part No. MKRAWT-02-0000-0D0HH20E5
  • Brand Cree
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

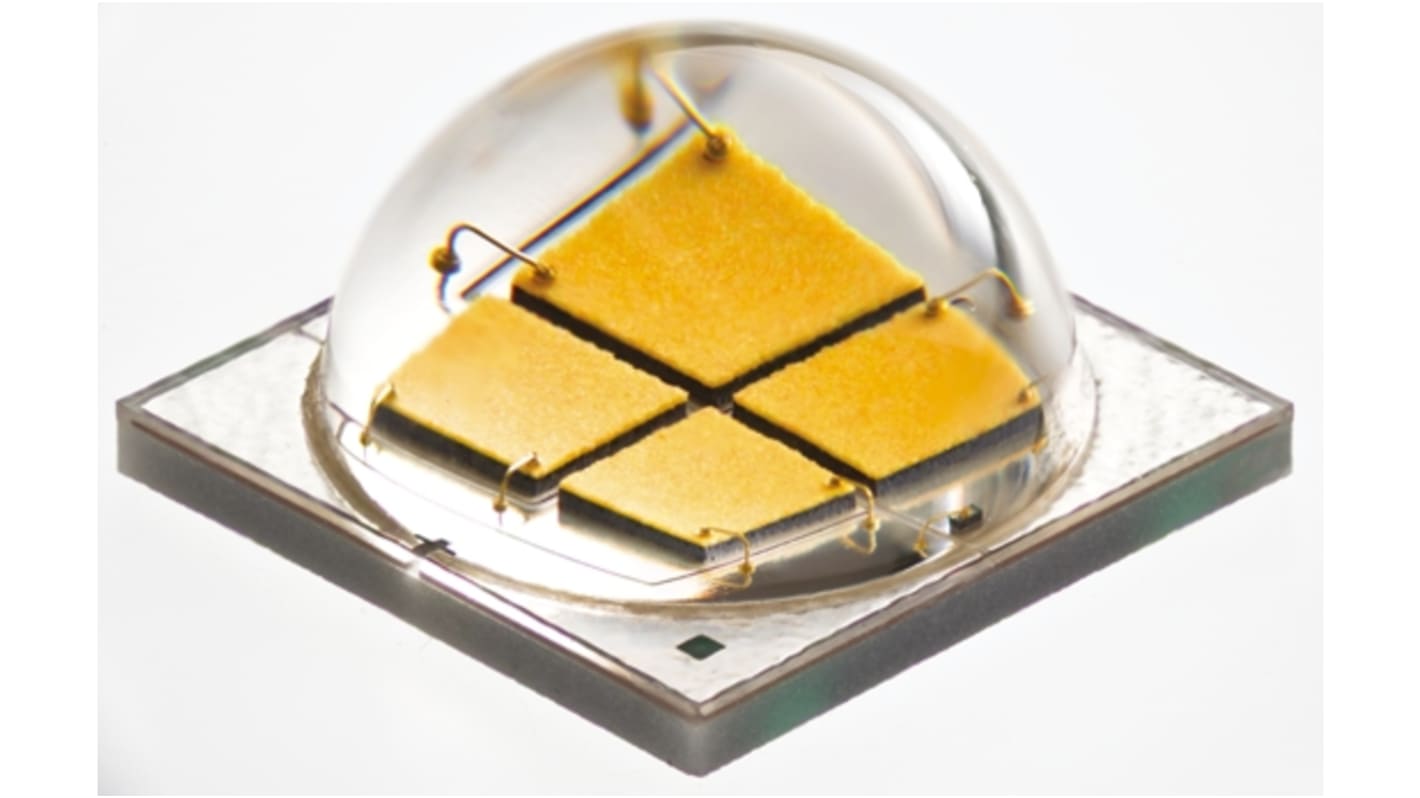

Cree XLamp MK-R Series LEDs

Built on Cree’s SC3 Silicon Carbide technology platform, the compact multi-chip XLamp MK-R LED is designed to deliver up to 200 lumens per watt (at 1W, 25°C).
With a minimum Colour Rendering Index (CRI) of 80 and an output falling within a single 2-step MacAdam ellipse, to provide excellent colour consistency; this range of XLAMP MK-R LEDs is ideal for high-lumen indoor and outdoor applications including: Directional lighting, low-bay and high-bay lighting, street lighting and car park lighting.
The MK-R LED’s high lumen output and excellent colour consistency enables manufacturers to use fewer LEDs while still maintaining light output and quality, translating into lower system costs.

Maximum drive current: 1250mA
Maximum junction temperature: 150°C
Binned at 85°C
Viewing angle: 120°
Minimum Colour Rendering Index (CRI): 80
Low thermal resistance: 1.7°C/W
Electrically neutral thermal path
Compact 7mm x 7mm footprint

Cree - White LEDs

Specifications
Attribute Value
LED Colours White
Mounting Type Surface Mount
Number of LEDs 4
Forward Voltage 14 V
Radiant Flux 15000mW
Number of Pins 8
Viewing Angle 120 °
Luminous Flux 1044 lm
Lens Shape Dome
Dimensions 7 x 7 x 4.08mm
Series XLamp MK-R
Lens Colour Clear
Colour Temperature 4000K
Priced to Clear Yes
Available to back order for despatch when stock is available
Price Each (On a Reel of 250)
£ 4.17
(exc. VAT)
£ 5.00
(inc. VAT)
Units
Per unit
Per Reel*
250 +
£4.17
£1,042.50
*price indicative
