2.5 V Orange LED SMD,Osram Opto TOPLED KO DELPS1.22-UGVI-24-H3Q4

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

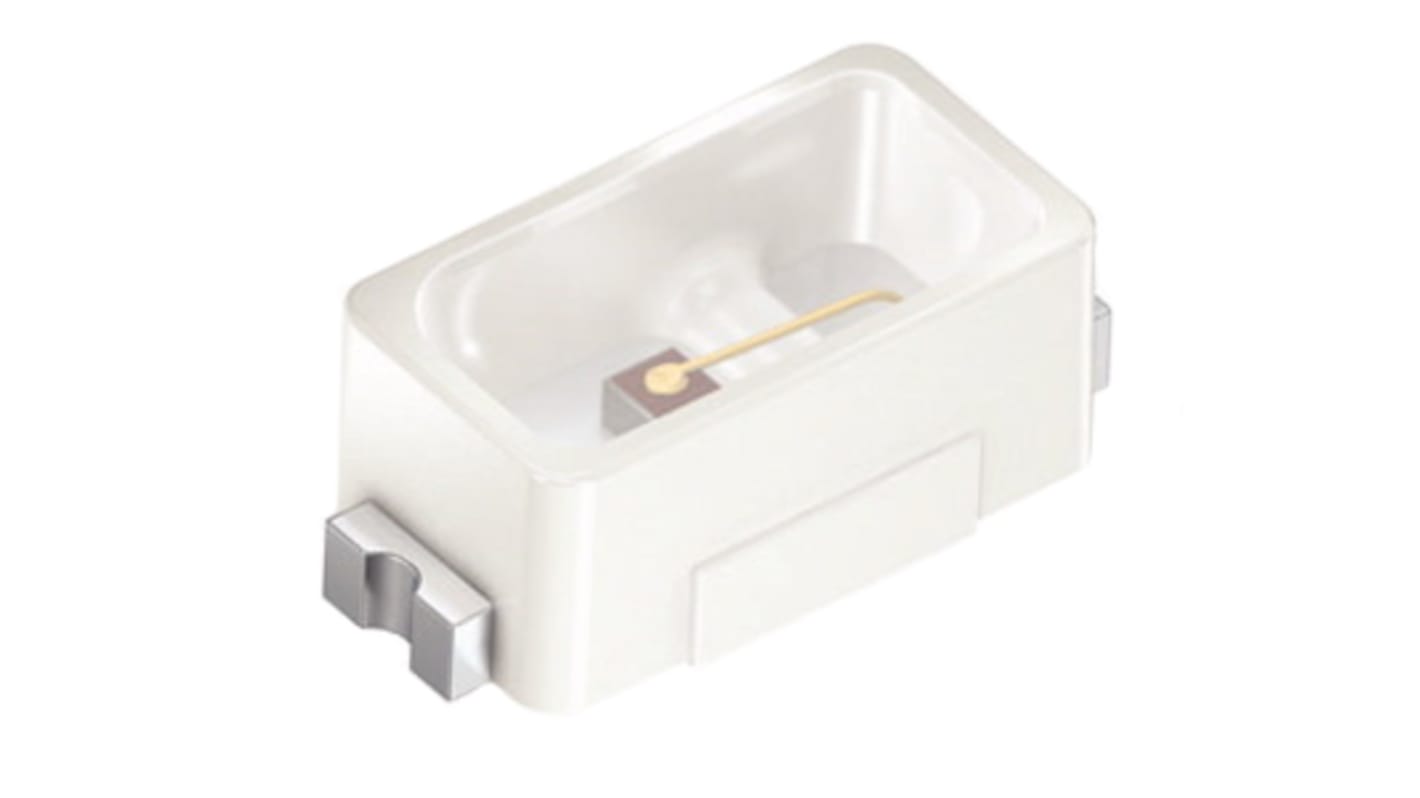

The TOPLED E1608 expands OSRAM Opto Semiconductors’ low power portfolio by offering one of the smallest LED Industry standard footprints in a highly reliable and well prooved package concept. Its outstanding performance is suitable for a huge variety of applications especially automotive interior where a small package design with excellent reliability is needed. The TOPLED E1608 is available in different colours and brightness levels.

Package: white SMT package, colourless clear
resin
Technology: InGaAlP Thinfilm
Viewing angle at 50 % IV: 120°
colour: orange (606 nm)
Automotive Interior Lighting
Dashboard Backlighting
Pushbuttons and Switches
Electronic Equipment
Signal and Symbol Luminary

Specifications
Attribute Value
LED Colours Orange
Mounting Type Surface Mount
Number of LEDs 1
Forward Voltage 2.5 V
Luminous Intensity 1120 mcd
Number of Pins 2
Viewing Angle 120 °
Luminous Flux 3400 mlm
Lens Shape Rectangle
Dominant Wavelength 609 nm
Dimensions 1.4 x 0.8 x 0.6mm
Lens Finish Clear
Series TOPLED
Forward Current 30mA
Available to back order for despatch 01/02/2021
Price Each (On a Reel of 5000)
£ 0.06
(exc. VAT)
£ 0.07
(inc. VAT)
Units
Per unit
Per Reel*
5000 - 10000
£0.06
£300.00
15000 - 20000
£0.058
£290.00
25000 +
£0.056
£280.00
*price indicative
