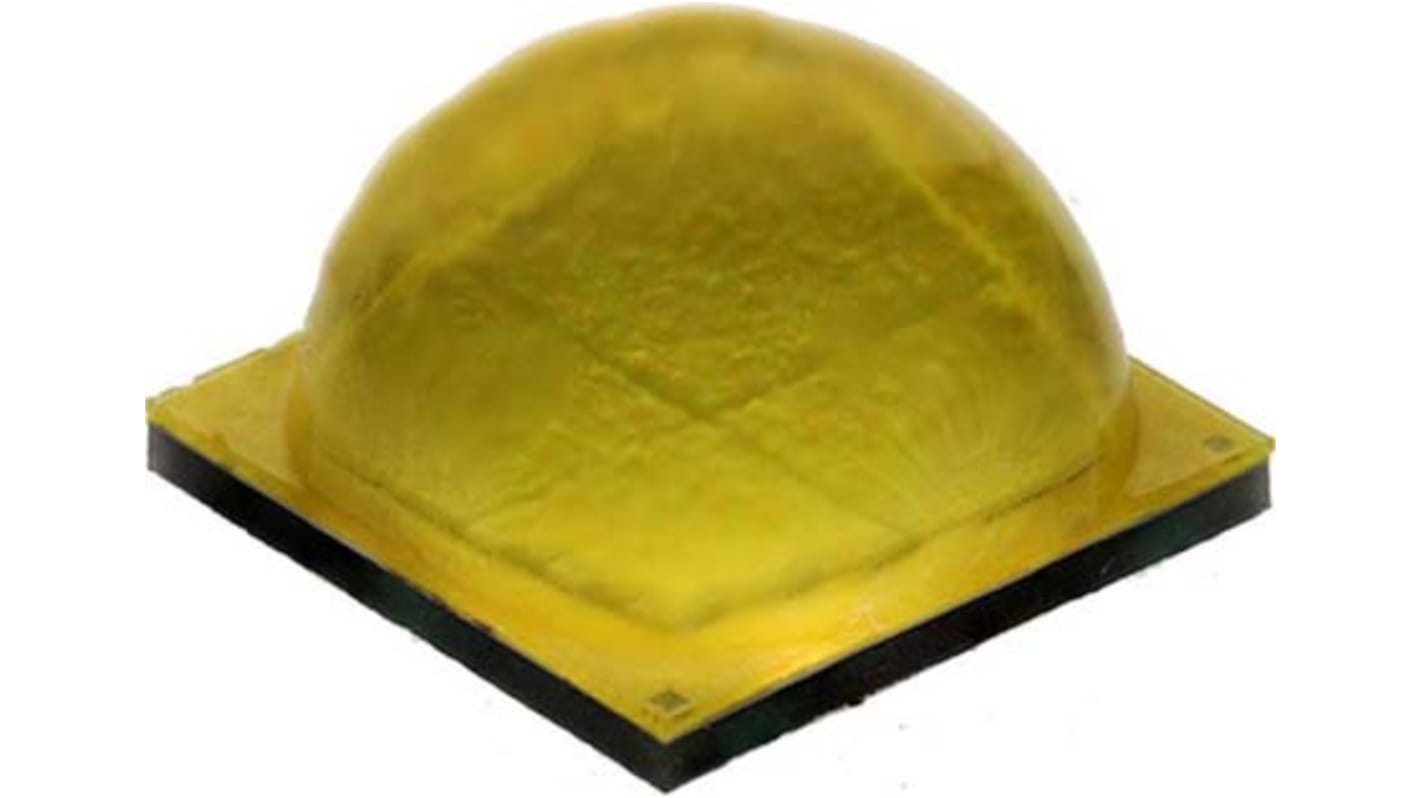

Cree LED12.2 V White LED SMD, XLamp XHP70.2 XHP70B-00-0000-0D0BP20E5
- RS Stock No.:
- 135-7087
- Mfr. Part No.:
- XHP70B-00-0000-0D0BP20E5
- Brand:
- Cree LED
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each
£4.48
(exc. VAT)
£5.38
(inc. VAT)
| Units | Per unit |
| 1 + | £4.48 |
- RS Stock No.:
- 135-7087
- Mfr. Part No.:
- XHP70B-00-0000-0D0BP20E5
- Brand:
- Cree LED
Technical Reference
Legislation and Compliance
Product Details
Cree XLamp XHP70.2 Series LEDs
The XLamp XHP70.2 series from Cree is a family of very high-powered white LEDs. This range is a follow on from their XHP70 series of LEDs, providing improvements in lumen density, voltage properties, reliability and optical performance. All of which comes from the same 7 x 7 mm footprint and therefore a perfect drop-in replacement from the previous model.
Available in a range of colour temperatures and CRI values, the XHP70.2 LEDs feature a domed lens for a 125° viewing angle.
Features and benefits
Upgrade from the XHP70 series
7 x 7 mm footprint
70, 80 or 90 CRI options
Max drive current: 4800 mA
Wide viewing angle: 125°
Low thermal resistance: 0.9 °C/W
Available in a range of colour temperatures and CRI values, the XHP70.2 LEDs feature a domed lens for a 125° viewing angle.
Features and benefits
Upgrade from the XHP70 series
7 x 7 mm footprint
70, 80 or 90 CRI options
Max drive current: 4800 mA
Wide viewing angle: 125°
Low thermal resistance: 0.9 °C/W
Cree - White LEDs
Specifications
Attribute | Value |
|---|---|
| LED Colours | White |
| Mounting Type | Surface Mount |
| Number of LEDs | 4 |
| Forward Voltage | 12.2 V |
| Number of Pins | 2 |
| Viewing Angle | 125 ° |
| Luminous Flux | 1830 lm @ 85°C, 2015 lm @25°C |
| Lens Shape | Dome |
| Dimensions | 7 x 7 x 4.34mm |
| Series | XLamp XHP70.2 |
| Colour Temperature | 4000K |
| Forward Current | 2400mA |
