Broadcom2.1 V, 2.2 V Green & Yellow LED 3225 (1210) SMD, HSMF-C156
- RS Stock No.:
- 450-981
- Mfr. Part No.:
- HSMF-C156
- Brand:
- Broadcom
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (In a Pack of 20)
£0.205
(exc. VAT)
£0.246
(inc. VAT)
| Units | Per unit | Per Pack* |
| 20 - 20 | £0.205 | £4.10 |
| 40 - 60 | £0.176 | £3.52 |
| 80 - 120 | £0.148 | £2.96 |
| 140 - 180 | £0.118 | £2.36 |
| 200 + | £0.111 | £2.22 |
| *price indicative | ||
- RS Stock No.:
- 450-981
- Mfr. Part No.:
- HSMF-C156
- Brand:
- Broadcom
Technical Reference
Legislation and Compliance
Product Details

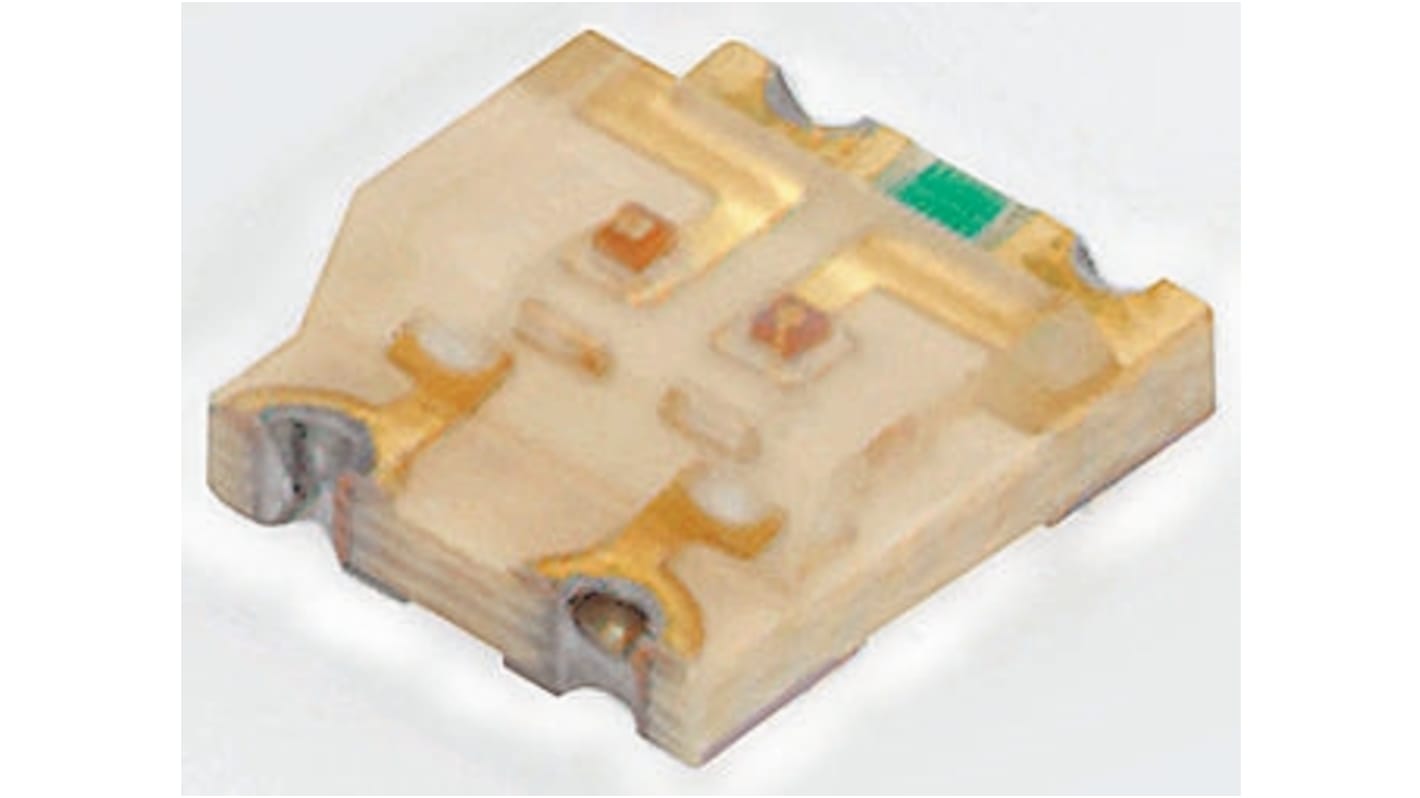

Avago HSMF-C15x Series ChipLEDs
The HSMF-C15x series of LEDs, from Avago Technologies, are bi-colour surface mount (SMT) ChipLEDs. They come in the industry standard 1210 package and are available in a variety of colours. The HSMF-C15x LED's wide viewing angle makes them ideal for use in backlighting applications. Other suitable applications for the HSMF-C15x ChipLEDs include; push-button backlighting, symbol backlighting, status indicators and front panel indicators.
Features of the HSMF-C15x ChipLEDs:
- Package dimensions: 3.2 x 2.7 x 1.1 mm
- Industry standard 1210 footprint
- Wide viewing angle: 170°
- Compatible with IR solder
- Diffused optics
- Operating temperature: -30°C to +85°C
- Package dimensions: 3.2 x 2.7 x 1.1 mm
- Industry standard 1210 footprint
- Wide viewing angle: 170°
- Compatible with IR solder
- Diffused optics
- Operating temperature: -30°C to +85°C
Visible Light LEDs, Avago Technologies
Specifications
Attribute | Value |
|---|---|
| LED Colours | Green, Yellow |
| Package Type | 3225 (1210) |
| Mounting Type | Surface Mount |
| Number of LEDs | 2 |
| Forward Voltage | 2.1 V, 2.2 V |
| Luminous Intensity | 8 mcd |
| Number of Pins | 4 |
| Viewing Angle | 170 ° |
| Lens Shape | Rectangle |
| Dominant Wavelength | 572 / 586 nm |
| Dimensions | 3.2 x 2.7 x 1.1mm |
| Lens Colour | Clear |
