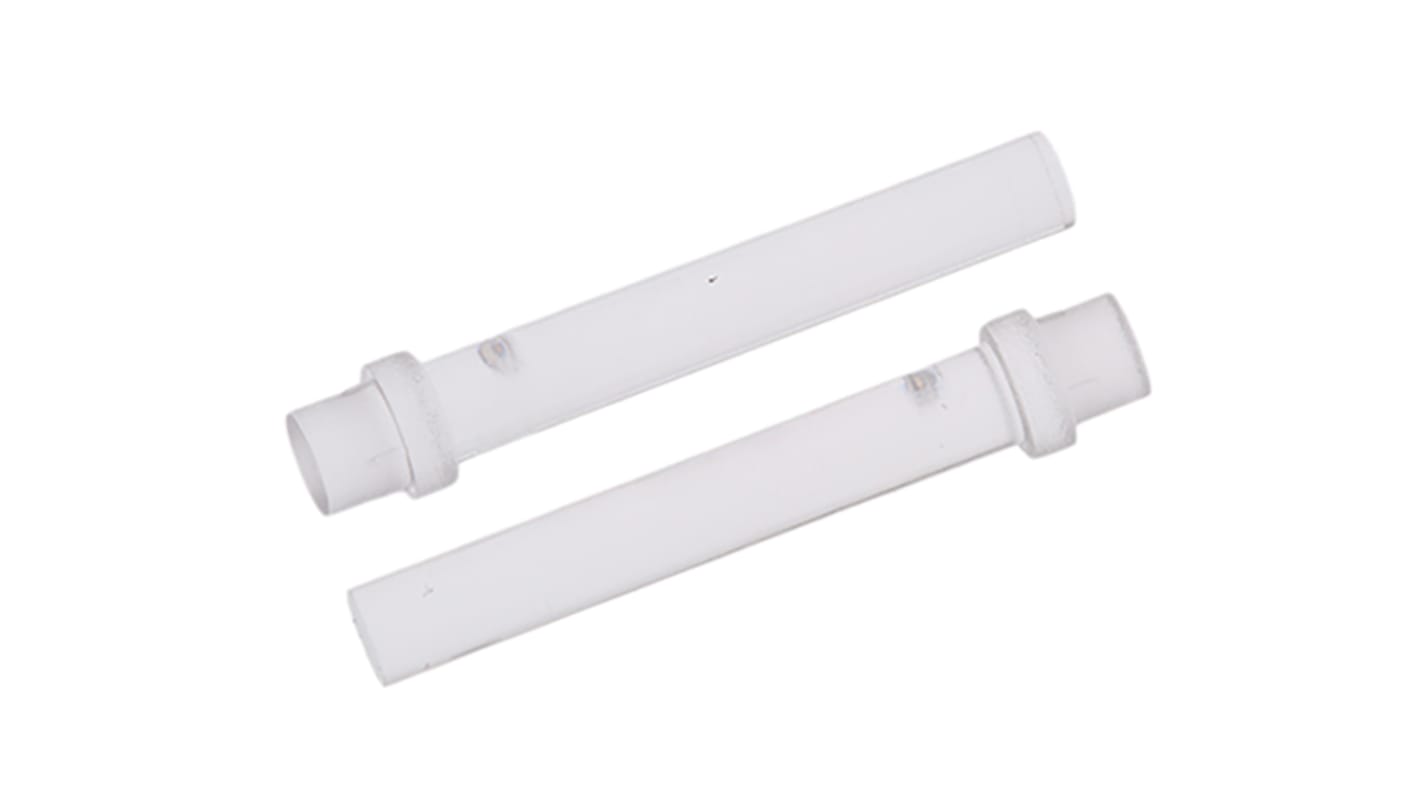

PLP1-750-F Bivar, Panel Mount LED Light Pipe, Clear Flat Lens

  • RS Stock No. 752-9135
  • Mfr. Part No. PLP1-750-F
  • Brand Bivar
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Bivar PLP1-XXX-F Series LED Light Pipes

The PLP1-xxx-F series from Bivar are a family of vertical press-fit LED light pipes. They are rear mounted into the front panel and sit in close proximity to the LED mounted on the PCB.
These rigid light pipes are made using a clear polycarbonate with a 94V-0 rating. They also protect sensitive components from ESD.

Rigid panel mount (rear) light pipes
94V-0 compliant clear polycarbonate construction
Viewing angle of 120°
Clear lens suitable for all LED colours
Easy press-fit installation

LED Light Pipes, Bivar

Bivar's range of LED light pipes include both rigid and flexible types. Their light pipes enable the user to move light from the LED source to a desired destination over a range of distances up to 100m. Bivar's LED light pipes are ideal for design flexibility.

Specifications
Attribute Value
Flexible/Rigid Rigid
Orientation Straight
Length 21.3mm
Dimensions 3.8 (Dia.) x 21.3mm
Mounting Type Panel Mount
Lens Shape Flat
Number of Ways 1
Rows 1
LED Included No
Columns 1
Lens Colour Clear
Series PLP1
Configuration Rows x Columns 1 x 1
Outer Diameter 3mm
900 In stock for FREE next working day delivery
Price Each (In a Pack of 10)
£ 0.414
(exc. VAT)
£ 0.497
(inc. VAT)
Units
Per unit
Per Pack*
10 - 10
£0.414
£4.14
20 - 40
£0.386
£3.86
50 - 90
£0.359
£3.59
100 - 190
£0.331
£3.31
200 +
£0.318
£3.18
*price indicative
