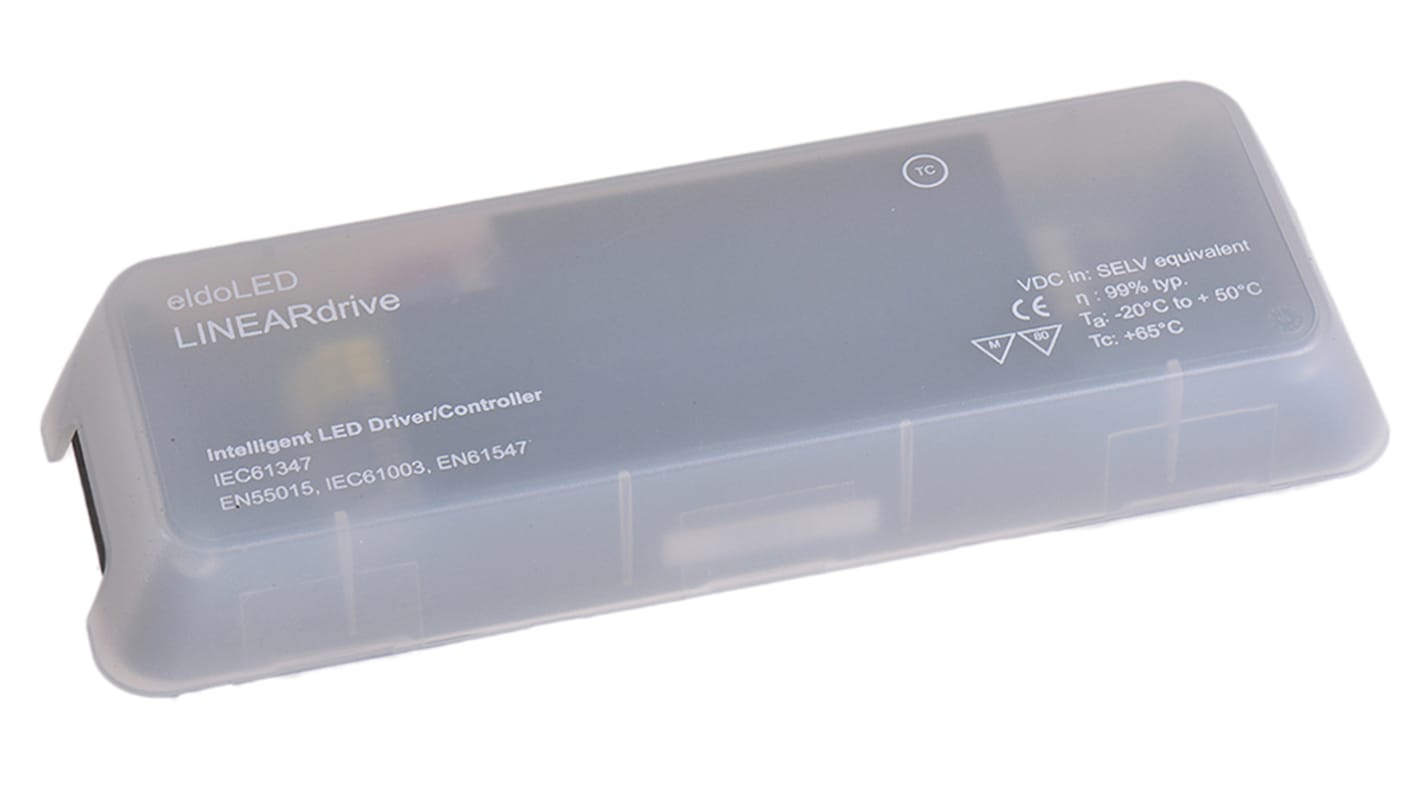

eldoLED LED Driver, 12 → 24V Output, 200W Output, 8A Output, Constant Voltage Dimmable
- RS Stock No.:
- 901-1494
- Mfr. Part No.:
- LIN212D1
- Brand:
- eldoLED
7 In stock - FREE next working day delivery available
Added
Price Each
£80.19
(exc. VAT)
£96.23
(inc. VAT)
| Units | Per unit |
| 1 - 1 | £80.19 |
| 2 - 4 | £77.63 |
| 5 + | £75.21 |
- RS Stock No.:
- 901-1494
- Mfr. Part No.:
- LIN212D1
- Brand:
- eldoLED
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
LINEARdrive 4-24 A LED Drivers
The LINEARdrive series from eldoLED are a family of constant voltage LED drivers with a 4-24 A output. LINEARdrive LED drivers are available with DALI, DMX or 0-10V compatibility. They can be used for white, dynamic white and full colour lighting applications.
These eldoLED LED drivers are highly integrated, enclosed and easy to configure, with up to 4 independently controllable LED outputs. Designed for low power, indoor LED lighting applications, the LINEARdrive LED drivers can be integrated in a network or used as standalone devices. eldoLED's ShowMaster software allows you to upload show sequences for use in standalone mode. Create and manage your own sequences using the TOOLbox (sold separately) and freely available PC software.
These eldoLED LED drivers are highly integrated, enclosed and easy to configure, with up to 4 independently controllable LED outputs. Designed for low power, indoor LED lighting applications, the LINEARdrive LED drivers can be integrated in a network or used as standalone devices. eldoLED's ShowMaster software allows you to upload show sequences for use in standalone mode. Create and manage your own sequences using the TOOLbox (sold separately) and freely available PC software.
Features of the eldoLED LINEARdrive LED drivers:
Independent LED driver modules
Constant voltage
4 A to 24 A output
Up to 4 LED outputs
DALI, DMX or 0-10V
Tunable dynamic response
Independent LED driver modules
Constant voltage
4 A to 24 A output
Up to 4 LED outputs
DALI, DMX or 0-10V
Tunable dynamic response
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 12 → 24V |
| Maximum Output Power | 200W |
| Output Current | 8A |
| Dimmable | Yes |
| Input Voltage | 12 → 28 V dc |
| Operation | Constant Voltage |
| LED Driver Type | LED Driver |
| Dimming Operation | DMX |
| AC or DC Input Voltage | dc |
| Output | 180 mA @ 12 V, 90 mA @ 24 V |
| Current Rating | 8A |
| Voltage Rating | 12 → 28V |
| Number of Outputs | 2 |
| Series | LINEARdrive |
| Configuration | Enclosed |
| Standards Met | CE, cULus, ENEC 05, KEMA KEUR, UL |
| Primary Type | DC-DC |
