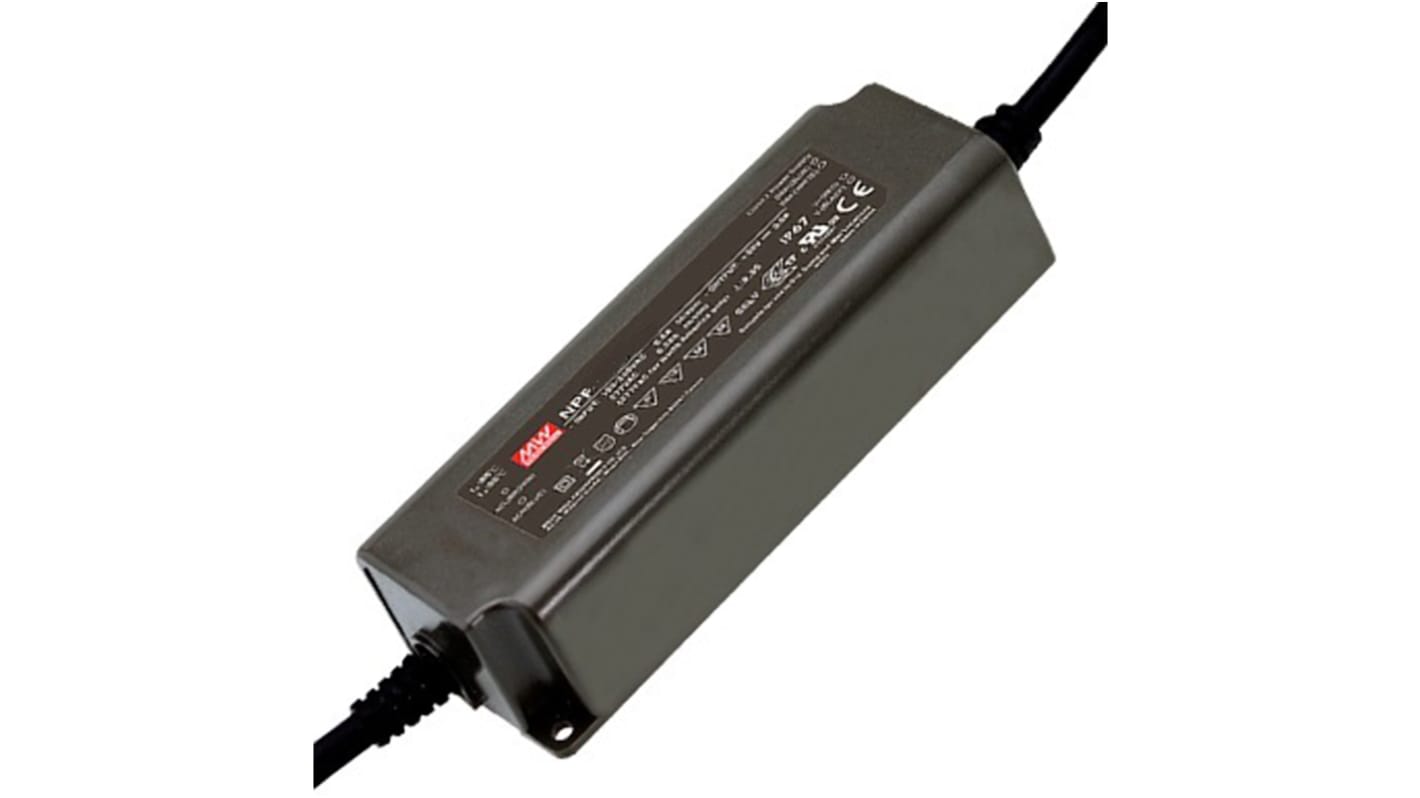

Mean Well NPF-120D-30, Constant Voltage PWM, Resistance LED Driver 120W 30V 4A

  • RS Stock No. 865-2567
  • Mfr. Part No. NPF-120D-30
  • Brand Mean Well
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Mean Well 120W Dimmable Constant Voltage LED Drivers - NPF-120-D Series

The Mean Well NPF-120-D Series is a range of 120W dimmable LED Drivers with a high efficiency of up to 95% and a low no load power consumption below 0.15W. These LED power supplies are waterproof, with the case made of 94V-0 flame retardant plastic. The interior of the NPF-120-D is fully potted in silicone, making these LED drivers suited to meet the anti-vibration demand up to 5G and enhancing the heat dissipation. The NPF-120D features a built-in 3 in 1 dimming function 01 to 10Vdc, PWM signal or resistance. These Mean Well LED drivers are IP67 rated and can be used in highly dusty and humid harsh environment. The class II design and the double insulation weather resistant cable makes the NPF-120-D Led drivers ideal for flexible installation of various types of lighting systems.

Universal AC input 90 to 305Vac
Built in active PFC function
High efficiency of up to 95%
Short circuit, over current, over voltage and over temperature protection
Cooling by free air convection
Operating temperature -40°C to +70°C
Fully isolated plastic case
Fully encapsulated IP67 rated
Class II power unit, no FG pin
Built-in 3 in 1 dimming function
Suitable for dry, damp, wet locations
No load power consumption below 0.15W

Standards

UL8750, CSA C22.2 No.250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67, design refer to EN60335-1

Approvals

SELV, cUL, UL, ENEC, CB, CE

Mean Well LED Drivers / Power Supplies - IP Rated

Specifications
Attribute Value
Input Voltage 90 305 V ac, 127 431 V dc
Output Voltage 30V
Operation Constant Voltage
Output Current 4A
Maximum Output Power 120W
Dimming Operation PWM, Resistance
AC or DC Input Voltage Ac, Dc
IP Rating IP67
Voltage Rating 90 305 V ac, 127 431 V dc
6 In stock for FREE next working day delivery
Price Each
£ 35.48
(exc. VAT)
£ 42.58
(inc. VAT)
Units
Per unit
1 - 4
£35.48
5 - 9
£33.84
10 - 24
£32.76
25 - 49
£31.64
50 +
£30.09
