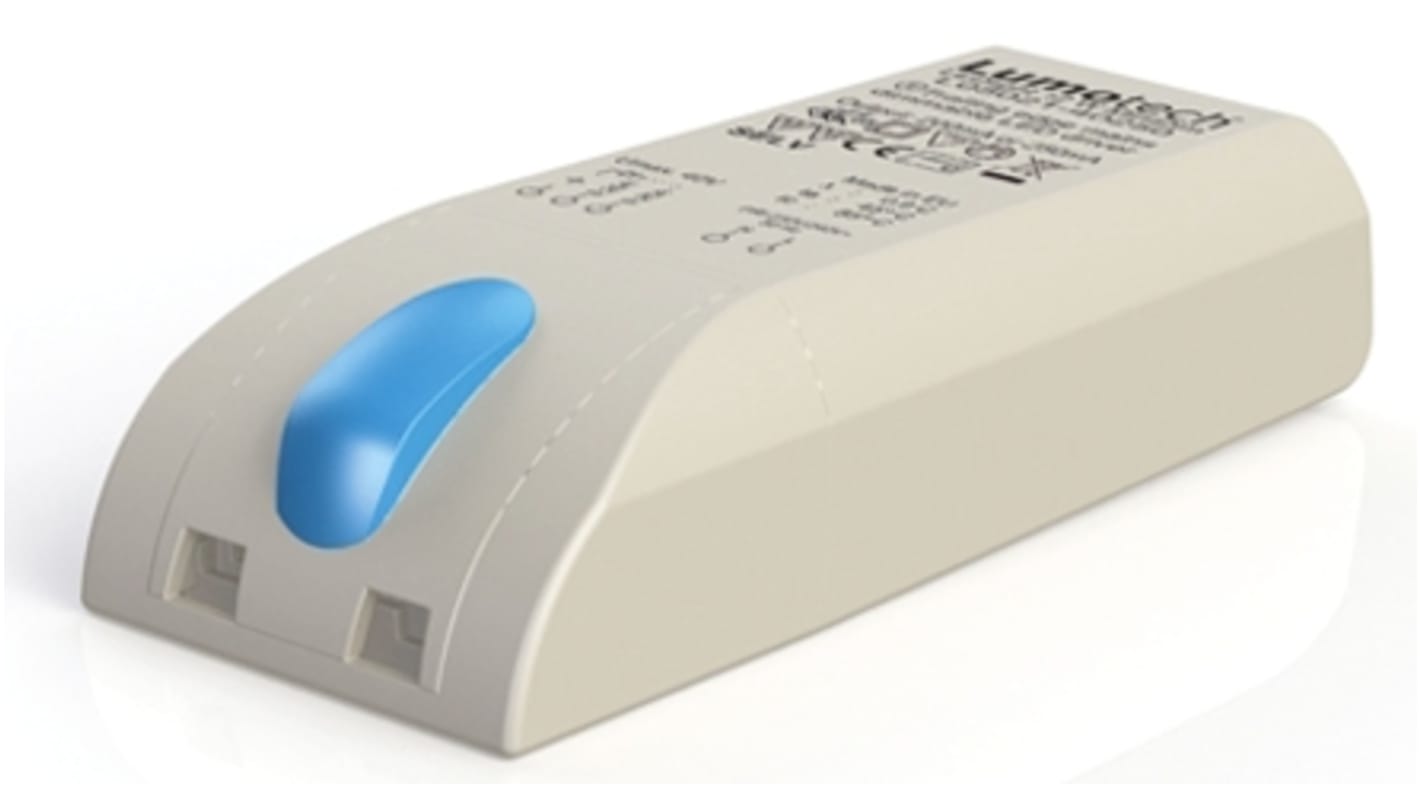

Lumotech LED Driver, 20 → 40V Output, 10W Output, 200 mA, 250 mA Output, Constant Current Dimmable
- RS Stock No.:
- 837-7822
- Mfr. Part No.:
- L05021-40250
- Brand:
- Lumotech
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£27.69
(exc. VAT)
£33.23
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £27.69 |
| 5 - 9 | £27.33 |
| 10 + | £26.94 |
- RS Stock No.:
- 837-7822
- Mfr. Part No.:
- L05021-40250
- Brand:
- Lumotech
Technical Reference
Legislation and Compliance
Product Details
LEDlight 1-12VA MINIDIM Mains Dimmable LED Driver
The LEDlight MINIDIM series from Lumotech are a family of 12 W dimmable LED drivers. Designed for low-power general lighting applications the MINIDIM LED drivers come in a compact, enclosed package.
Adjustable current outputs enable the LEDlight MINIDIM drivers to provide flexibility in luminaire design. They also offer a range of features for system reliability.
Adjustable current outputs enable the LEDlight MINIDIM drivers to provide flexibility in luminaire design. They also offer a range of features for system reliability.
Features of the LEDlight MINIDIM LED drivers:
Compact form factor
12 W power output
Low inrush current
Short-circuit protection
Overload and over voltage protection
Thermal protection
IP20 encapsulation
For use with trailing edge dimmers (a full list of compatible dimmers can be found on the Lumotech website)
Compact form factor
12 W power output
Low inrush current
Short-circuit protection
Overload and over voltage protection
Thermal protection
IP20 encapsulation
For use with trailing edge dimmers (a full list of compatible dimmers can be found on the Lumotech website)
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 20 → 40V |
| Maximum Output Power | 10W |
| Output Current | 200 mA, 250 mA |
| Dimmable | Yes |
| Input Voltage | 230 → 240 V |
| Operation | Constant Current |
| LED Driver Type | LED Driver |
| Dimming Operation | Phase |
| AC or DC Input Voltage | ac |
| IP Rating | IP20 |
| Voltage Rating | 230 → 240V |
| Series | LEDlight MINIDIM |
| Configuration | Encapsulated |
| Standards Met | EN55015, EN61000-3-2, EN61347-1, EN61347-2-13, EN61547, EN62384, SELV |
