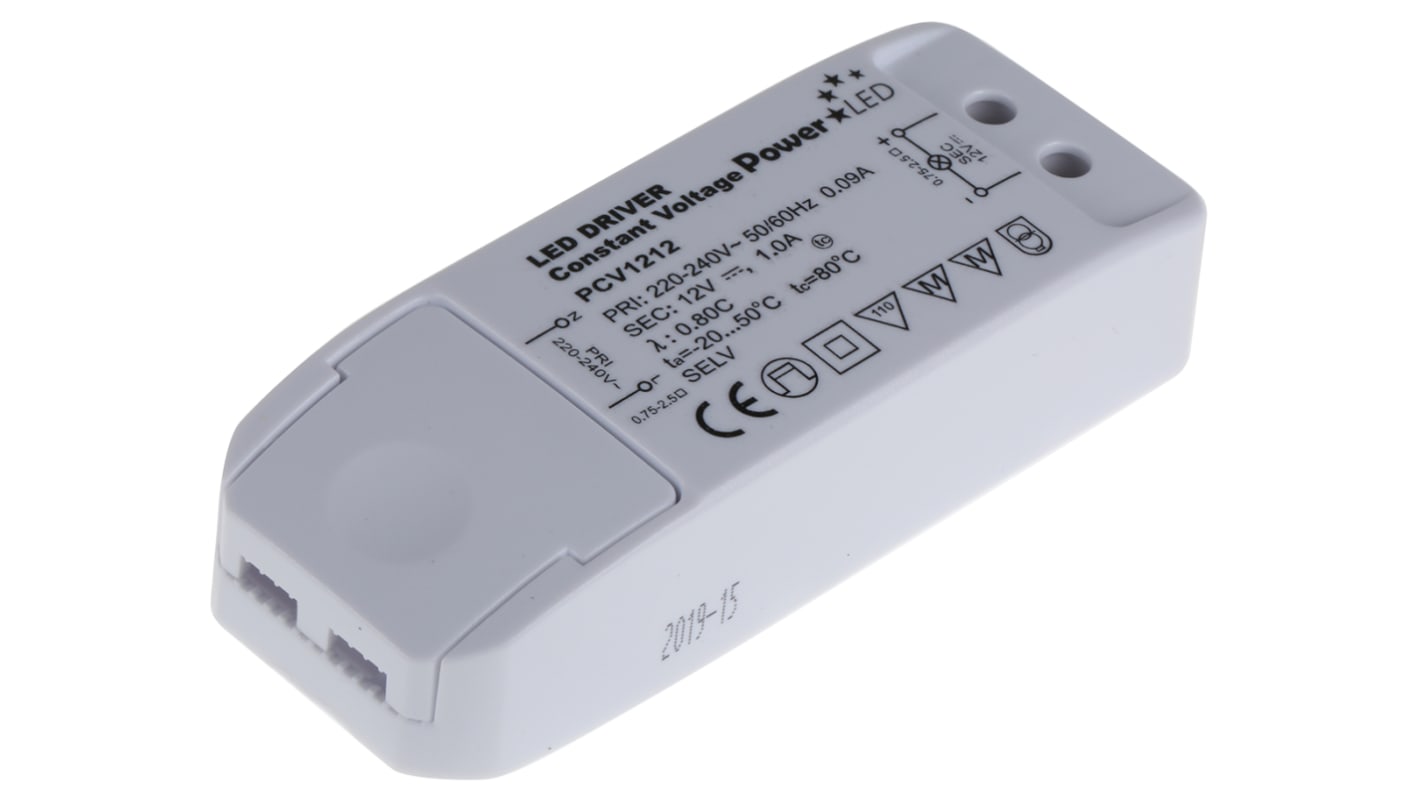

PowerLED PCV1212, Constant Voltage LED Driver 12W 12V 0 1A

  • RS Stock No. 773-6949
  • Mfr. Part No. PCV1212
  • Brand PowerLED
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Indoor Constant Voltage LED Drivers

A range of single output constant voltage LED drivers, from PowerLED, suitable for indoor LED lighting applications such as: Residential LED lighting, display case lighting, LED down-lighting, LED backlighting, mood lighting and light sculptures.

Captive terminal screws for ease of use
Snap lock cable strain relief
LED indicator
Over load/short circuit and over temperature protection
Cooling by free air convection
Class 2 output
Long life and high reliability

The PowerLED PCV1212 comes from the PCV12 series of 12W LED drivers. The PCV1212 is CE approved and meets safety standards so you can rely on it to do the job safely. It is ideal for a wide range of indoor lighting applications which require a constant voltage LED driver. This single 24V output LED driver has an input voltage of 220∼240 Vac. The PCV1212 features captive terminal screws and snap lock cable strain relief for easy installation.

Where is it used?Lighting around the homeDisplaysLED downlightsLED backlightingAmbient/mood lightingWhat IP rating is it?The PCV1212 is rated to IP20 and therefore not suitable for applications where it may come into contact with water. It is best for indoor use only. How big is it?The PCV1212 measures 98 x 39 x 22 mm.This LED driver is also available with 20W power - PCV1220 (773-6958)

Specifications
Attribute Value
Input Voltage 220 240 V ac
Output Voltage 12V
Operation Constant Voltage
Output Current 0 1A
Maximum Output Power 12W
AC or DC Input Voltage Ac
Voltage Rating 220 240 V ac
131 In stock for FREE next working day delivery
Price Each
£ 6.44
(exc. VAT)
£ 7.73
(inc. VAT)
Units
Per unit
1 - 1
£6.44
2 - 4
£6.04
5 +
£5.26
