- RS Stock No.:
- 737-7057
- Mfr. Part No.:
- RACD03-350
- Brand:
- Recom
Available to back order for despatch 30/05/2024
Added
Price Each
£12.90
(exc. VAT)
£15.48
(inc. VAT)
Units | Per unit |
1 - 4 | £12.90 |
5 - 9 | £12.35 |
10 - 24 | £12.10 |
25 - 49 | £11.85 |
50 + | £11.56 |
- RS Stock No.:
- 737-7057
- Mfr. Part No.:
- RACD03-350
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

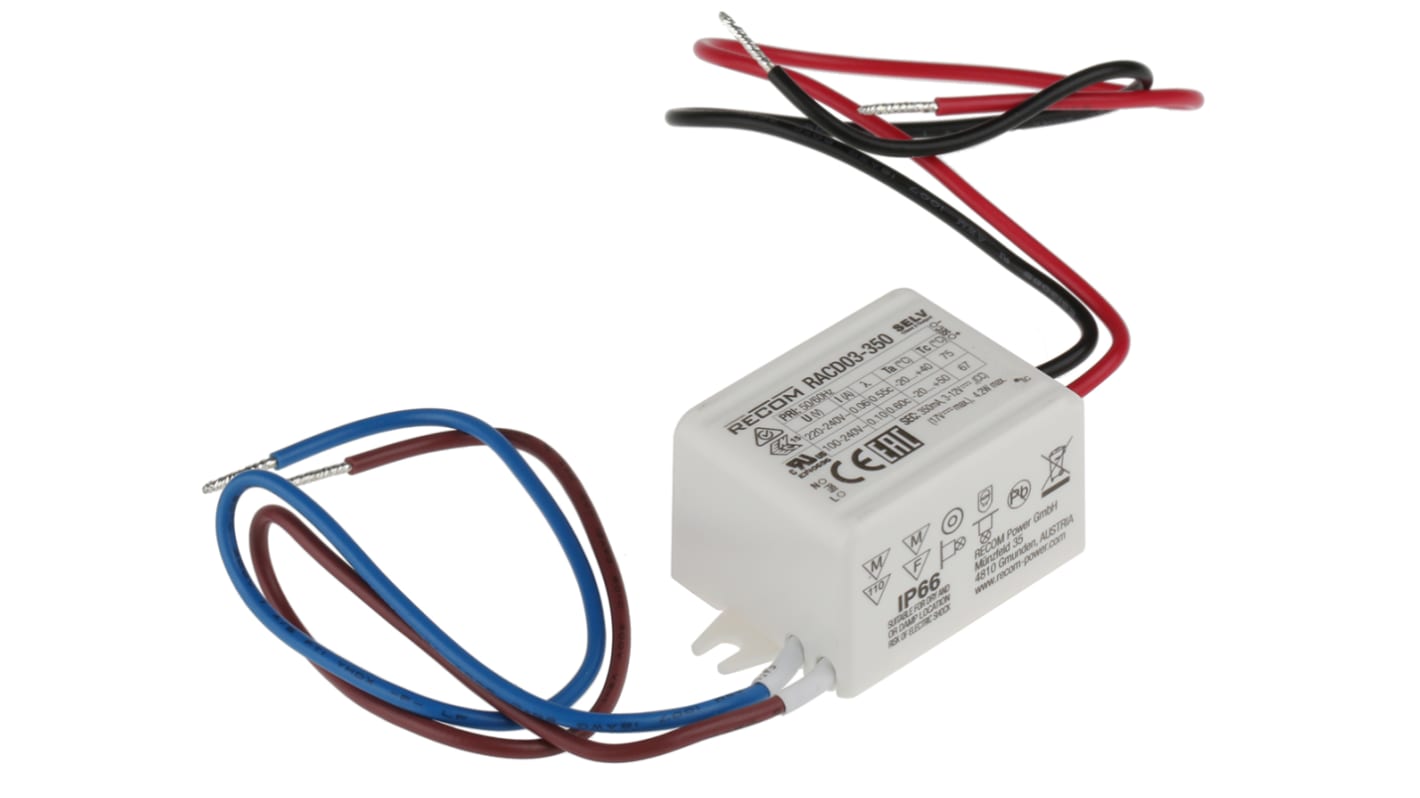

RECOM LED Driver, 90 to 264V AC Input Voltage, -20°C to +50°C Operating Temperature Range - RACD03 Series - RACD03-350
To safely and reliably power your lighting system, choose this LED driver from RECOM. It's designed to change inputs from AC mains to a stable energy supply and provide LEDs with either a constant current or constant voltage. In the CC setting, this versatile unit supplies 350mA and a variable output between 3 and 12VDC for high-power applications. The CV mode offers 15V DC and between 0 and 300mA for use with strip lights.
Features & Benefits
• 72% efficiency indicates low energy loss through heat production
• Broad operating humidity range between 5 and 85% for use in areas with high levels of non-condensing water vapour
• Light 45g weight puts minimal strain on your system
• IP66 rating means it's dust-proof and protected from high-pressure water jets
• Dimensions of 52.1 (L) x 29.6 (W) x 23.1mm (H) for discreet installation in small spaces
• Broad operating humidity range between 5 and 85% for use in areas with high levels of non-condensing water vapour
• Light 45g weight puts minimal strain on your system
• IP66 rating means it's dust-proof and protected from high-pressure water jets
• Dimensions of 52.1 (L) x 29.6 (W) x 23.1mm (H) for discreet installation in small spaces
Applications
• Outdoor displays
• Landscape lighting
• LED flex strips
• Landscape lighting
• LED flex strips
How many lights can this unit power?
This device is designed to drive between one and six high-powered LED lights.
Recom - Constant Current LED Power Supply
Specifications
Attribute | Value |
---|---|
Output Voltage | 3 → 15V dc |
Maximum Output Power | 3W |
Output Current | 350mA |
Dimmable | No |
Input Voltage | 120 → 370 V dc, 90 → 264 V ac |
Operation | Constant Current / Constant Voltage |
LED Driver Type | LED Driver |
AC or DC Input Voltage | ac, dc |
IP Rating | IP66 |
Current Rating | 0 → 350mA |
Number of Outputs | 1 |
Series | RACD03 |
Voltage Rating | 264V ac |
Configuration | Enclosed |
Primary Type | AC-DC, DC-DC |
