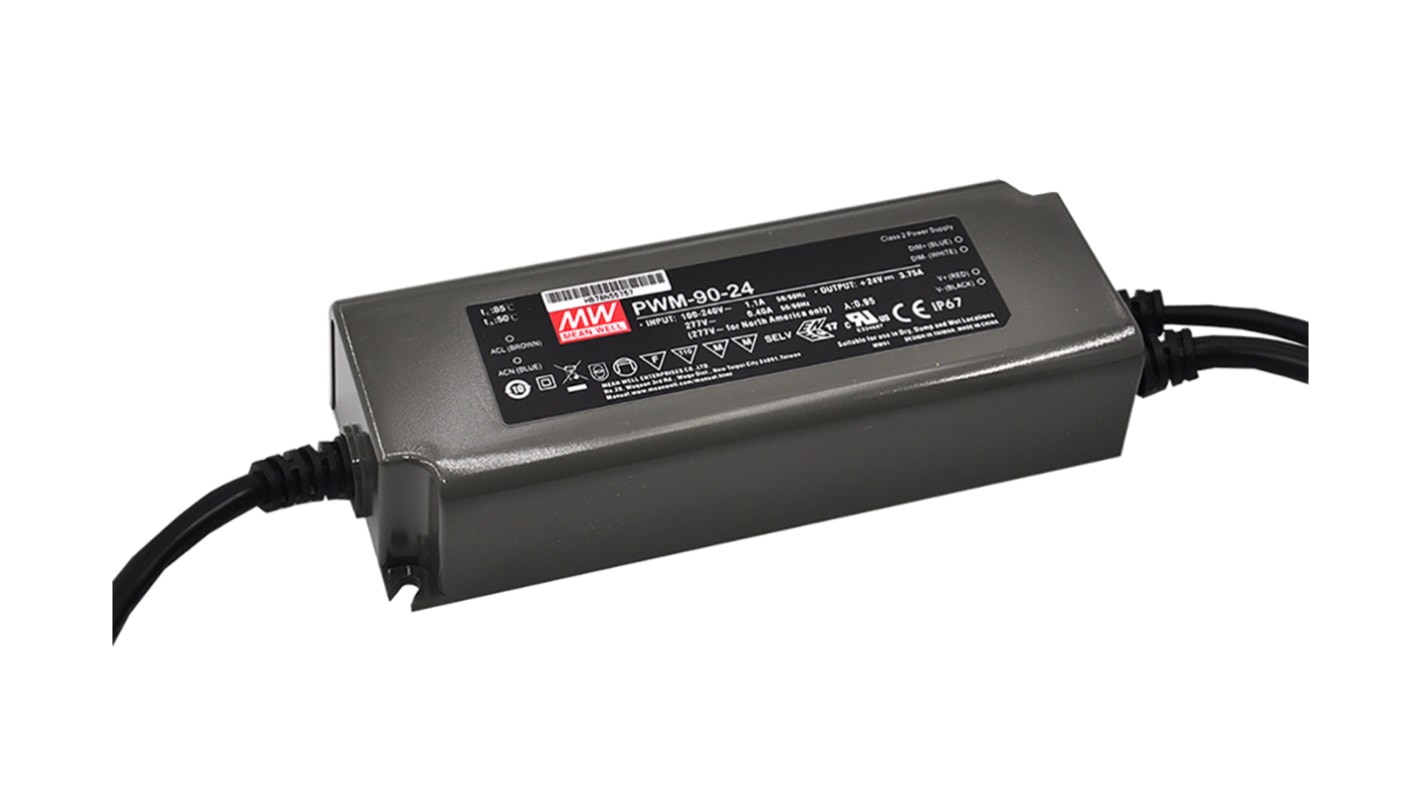

Mean Well PWM-90-24DA, Constant Voltage DALI LED Driver 90W 24V 3.75A, PWM-90 Series

  • RS Stock No. 184-3083
  • Mfr. Part No. PWM-90-24DA
  • Brand Mean Well
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

PWM-90 Series is a 90W LED AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain in the brightness homogeneity when driving all kinds of LED Strips. PWM-90 operates from 90∼305 VAC and offers models with different rated voltage ranging between 12V and 48V. The high efficiency upto 90.5%, with the fanless design, the entire series is able to operate for -40°C ∼ +85°C case temperature under free air convection. The entire series is suitable to work for dry, damp or wet locations. PWM-90 is equipped with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips applications.

Constant Voltage PWM style Output with frequency 1.47kHz
Plastic housing with class II design
Built-in active PFC function
Class 2 Power unit
No load power consumption <0.5W
Fully encapsulated with IP67 Level
Function 3 in 1 dimming (dim-to-off), DALI
Typical Lifetime>50000 hours
Applications
LED Strip lighting
Indoor LED Lighting
LED decorative lighting
LED Architecture Lighting

Specifications
Attribute Value
Input Voltage 90 → 305 V ac, 127 → 431 V dc
Output Voltage 24V
Operation Constant Voltage
Output Current 3.75A
Maximum Output Power 90W
Dimming Operation DALI
AC or DC Input Voltage Ac, Dc
IP Rating IP67
Current Rating 950mA
Number of Outputs 1
Output 24 V dc @ 3.75 A
Voltage Rating 305 V ac, 431 V dc
Series PWM-90
Primary Type AC, DC-DC
20 In stock for FREE next working day delivery
Price Each
£ 39.86
(exc. VAT)
£ 47.83
(inc. VAT)
Units
Per unit
1 - 4
£39.86
5 - 9
£38.74
10 - 24
£37.25
25 - 49
£35.60
50 +
£33.17
