Osram 4052899545960, Constant Voltage LED Driver 60W 24.2V, CV Series

  • RS Stock No. 179-9534
  • Mfr. Part No. 4052899545960
  • Brand Osram
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

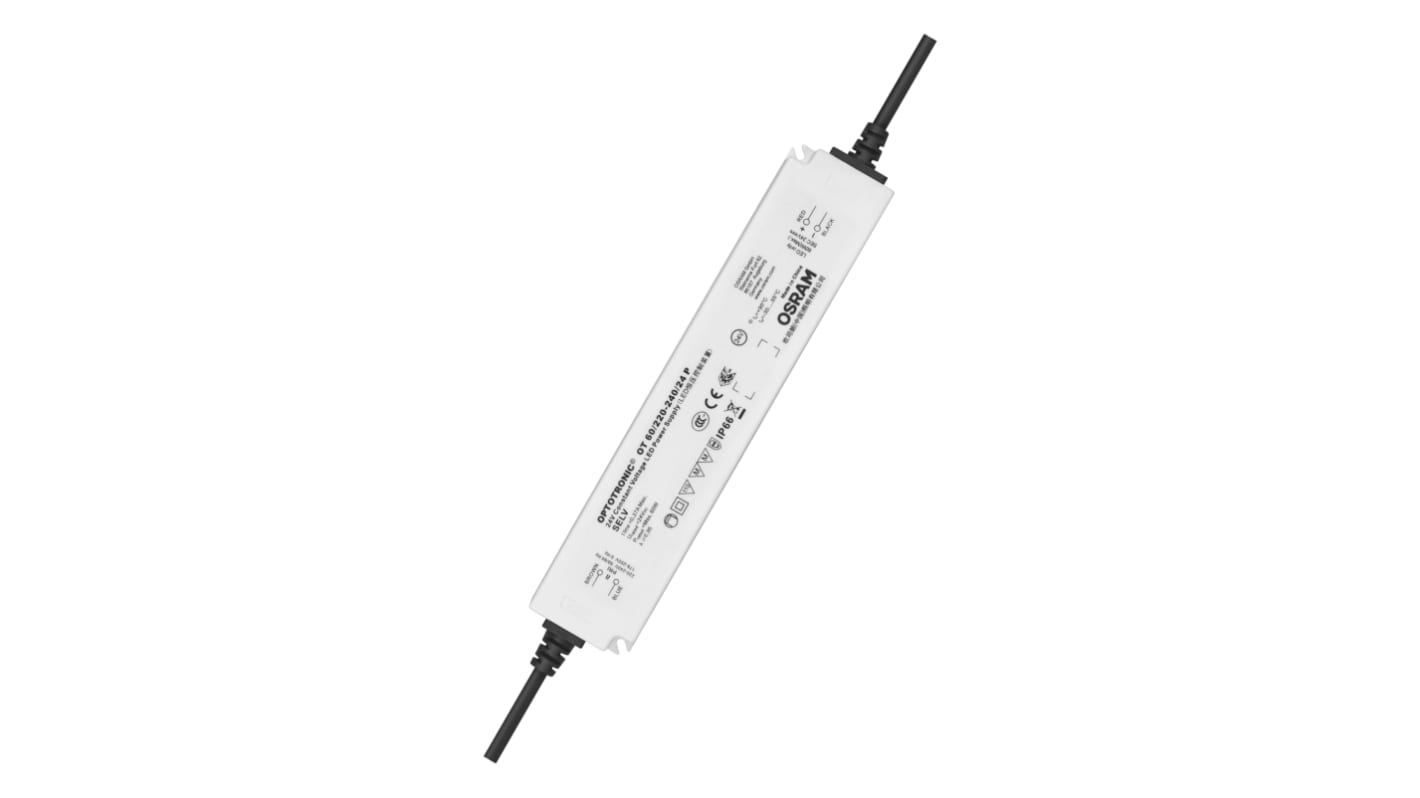

Osram LED Driver

The Osram CV series LED driver has a constant voltage and is suitable for use in tight, flat luminaires and suspended ceilings.

Features and Benefits

• High electronic reversible short circuit, overload, over temperature protection
• Independent installation possible
• Installation in very cold and hot environments
• Lifetime is up to 50,000h
• Nominal output power is 60W
• Nominal supply voltage is 220V to 240V
• Output supply voltage is 24.2V
• Output voltage is 24.2V
• Smart power supply boosting power to turn on cold LEDs
• Storage temperature ranges between -40°C and 85°C
• Supply voltage is between 220V to 240V
• Very stable output power

Applications

• Facades, public squares, cruise ships
• Signage
• Suitable for indoor and outdoor installations

Certifications

• CCC certified
• EAC certified
• EN 61347-1, EN 61347-2-13, EN 61000-3-2, EN 55015, EN 60598-2-22, EN 61000-3-3, EN 61547, EN 60598-1, EN 62384
• ENEC certified
• IP66 rating
• IP67 rating
• RCM certified

Specifications
Attribute Value
Input Voltage 176 → 250 V dc, 198 → 264 V ac
Output Voltage 24.2V
Operation Constant Voltage
Maximum Output Power 60W
AC or DC Input Voltage Ac, Dc
IP Rating IP66
Configuration Encapsulated
Number of Outputs 1
Primary Type AC, DC-DC
Series CV
Voltage Rating 220 → 240V
5 In stock for FREE next working day delivery
Price Each
£ 37.50
(exc. VAT)
£ 45.00
(inc. VAT)
Units
Per unit
1 - 4
£37.50
5 - 9
£36.00
10 - 19
£34.62
20 +
£33.09
