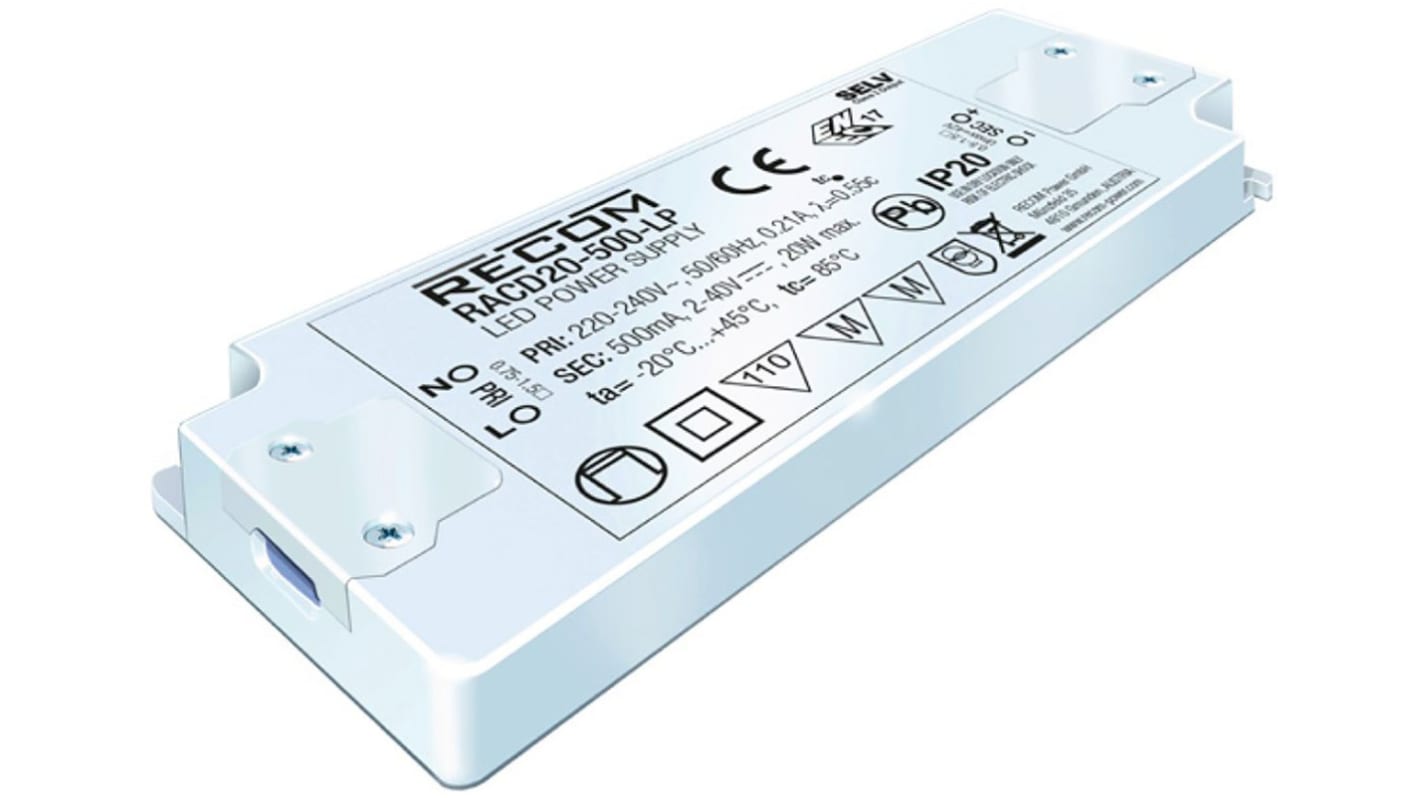

Recom RACD20-LP AC-DC Constant Current LED Driver 22W 2 → 31V dc

  • RS Stock No. 131-4726
  • Mfr. Part No. RACD20-700-LP
  • Brand Recom
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

20W Constant Current LED Driver, RACD20-LP Series

Low Profile case (13 mm height max.)
230 V ac input voltage LED Power Supply
Fully Protected for Short Circuit, Open Circuit, Over Load, Over Voltage and Over Temperature
Low Standby Power, ErP conform
Screw Terminal Block Input/Output with Cable Clamps

20W 700mA Constant Current LED Driver

Recom LED Drivers

Specifications
Attribute Value
Input Voltage 198 → 264 V ac
Output Voltage 2 → 31V dc
Operation Constant Current
Output Current 700mA
Maximum Output Power 22W
AC or DC Input Voltage Ac
IP Rating IP20
Configuration Enclosed
Number of Outputs 1
Series RACD20-LP
Primary Type AC-DC
Standards Met CB, CE, EN 55015, EN 61000-3-2 Class C, EN 61000-3-3, EN 61000-4-11 Criteria B, EN 61000-4-11 Criteria C, EN 61000-4-2 Criteria B, EN 61000-4-3 Criteria A, EN 61000-4-4 Criteria B, EN 61000-4-5 Criteria C, EN 61000-4-6 Criteria A, EN 61347-1, EN 61347-2-13, EN 61493, EN 61547, ENEC, ERP Compliant, IEC 61347-1, IEC 61347-2-13, IEC/EN 62384
66 In stock - FREE next working day delivery available
Price Each
£ 10.69
(exc. VAT)
£ 12.83
(inc. VAT)
Units
Per unit
1 - 9
£10.69
10 - 24
£10.05
25 - 49
£9.19
50 - 74
£8.55
75 +
£8.02
