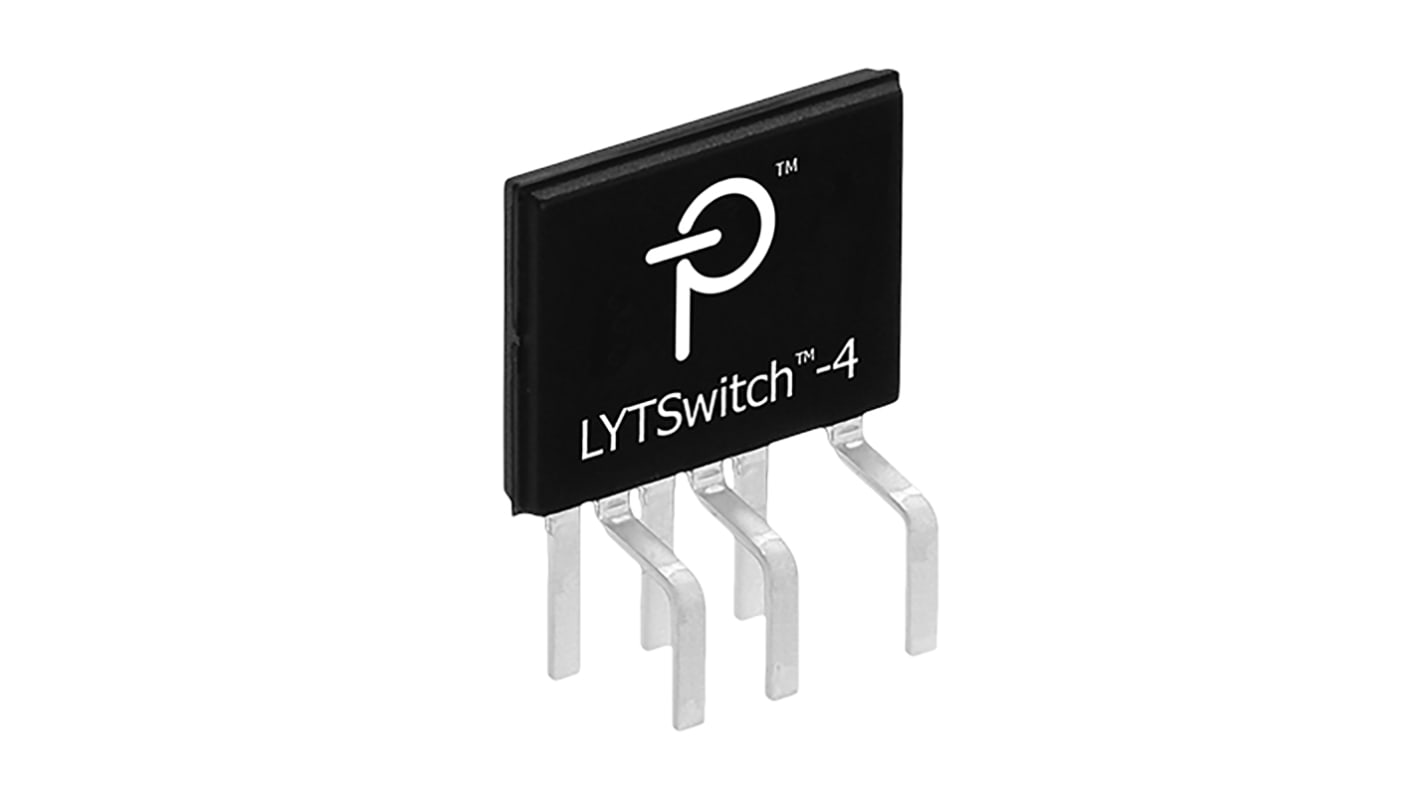

Power Integrations LYT4228E3 LED Driver IC, 160 → 308 V ac 9A 6-Pin eSIP-7C
- RS Stock No.:
- 123-5520
- Mfr. Part No.:
- LYT4228E3
- Brand:
- Power Integrations
Discontinued product
- RS Stock No.:
- 123-5520
- Mfr. Part No.:
- LYT4228E3
- Brand:
- Power Integrations
Technical Reference
Legislation and Compliance
Product Details
LYTSwitch-4 series High Power LED Driver AC-DC Converters
The Power Integrations LYTSwitch-4 family of off-line AC-DC single-stage converters are designed for high-power LED driver applications. They integrate control and drive circuits and power factor correction in a single package and are available in both dimming and non-dimming versions.
• High line voltage operation: 160-308 Vac
• Better than ±5% constant current regulation
• Up to 92% efficiency in typical applications
• High power factor >0.9
• Easily meets EN61000-3-2
• Less than 10% THD in optimized designs
• 132 kHz switching frequency permits use of small low-cost magnetics
• No primary side aluminium electrolytic bulk capacitors required
LTY432x types only:
• TRIAC dimmable to less than 5% of full output
• Fast start-up: <250 ms at full brightness, <1s at 10% brightness
• Better than ±5% constant current regulation
• Up to 92% efficiency in typical applications
• High power factor >0.9
• Easily meets EN61000-3-2
• Less than 10% THD in optimized designs
• 132 kHz switching frequency permits use of small low-cost magnetics
• No primary side aluminium electrolytic bulk capacitors required
LTY432x types only:
• TRIAC dimmable to less than 5% of full output
• Fast start-up: <250 ms at full brightness, <1s at 10% brightness
AC-DC Converters, Power Integrations
Specifications
Attribute | Value |
|---|---|
| Output Current | 9A |
| Input Voltage | 160 → 308 V ac |
| Maximum Output Power | 78W |
| Application | High Line LED Lighting |
| Package Type | eSIP-7C |
| Number of Pins | 6 |
| Minimum Output Voltage | 36V |
| Current Rating | 1.2 (Non-Switching) mA, 4 (Switching) mA |
| Series | LYT4x28 |
