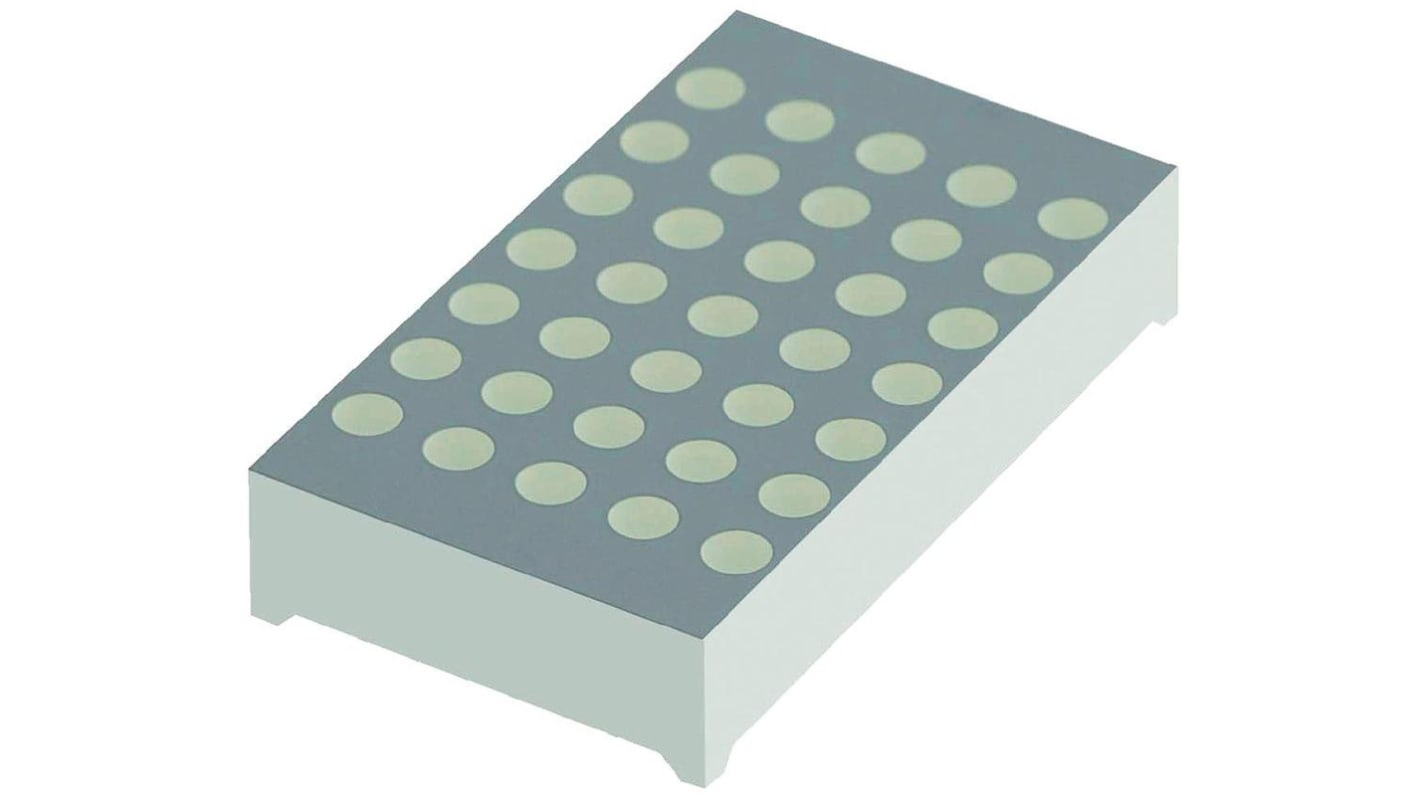

TC12-22SURKWA Kingbright Dot Matrix LED Display, CC 7 x 5 Dot Matrix Red 130 mcd 30.5mm
- RS Stock No.:
- 871-4820
- Mfr. Part No.:
- TC12-22SURKWA
- Brand:
- Kingbright
Discontinued product
- RS Stock No.:
- 871-4820
- Mfr. Part No.:
- TC12-22SURKWA
- Brand:
- Kingbright
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Kingbright Dot Matrix LED Displays 5x7 - 30mm
This family of dot matrix displays, from Kingbright, are available in a variety of single and bi colour options. These 30.6mm displays have a 5x7 dot matrix. Each 3mm dot provides high contrast and light output.
5x7 dot matrix
1.2 inch matrix height
Dot size: 3mm
Colours: red/green, red, green and yellow
Low current operation
Mechanically rugged
Grey face with white dots
1.2 inch matrix height
Dot size: 3mm
Colours: red/green, red, green and yellow
Low current operation
Mechanically rugged
Grey face with white dots
Dot Matrix LED Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | Dot Matrix |
| LED Colours | Red |
| Dominant Wavelength | 630 nm |
| Character Width | 21.4mm |
| Character Height | 30.5mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Depth | 31.9mm |
| External Height | 8mm |
| External Dimensions | 23 x 31.9 x 8mm |
| External Width | 23mm |
| Luminous Intensity | 130 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Forward Voltage | 1.95 V |
| Dot Matrix Dimensions | 7 x 5 |
| Dots High | 7 |
| Dots Wide | 5 |
| Series | TC12 |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
| Forward Current | 30mA |
| Maximum Operating Temperature | +85°C |
| Dot Matrix Format | 5 x 7 |
