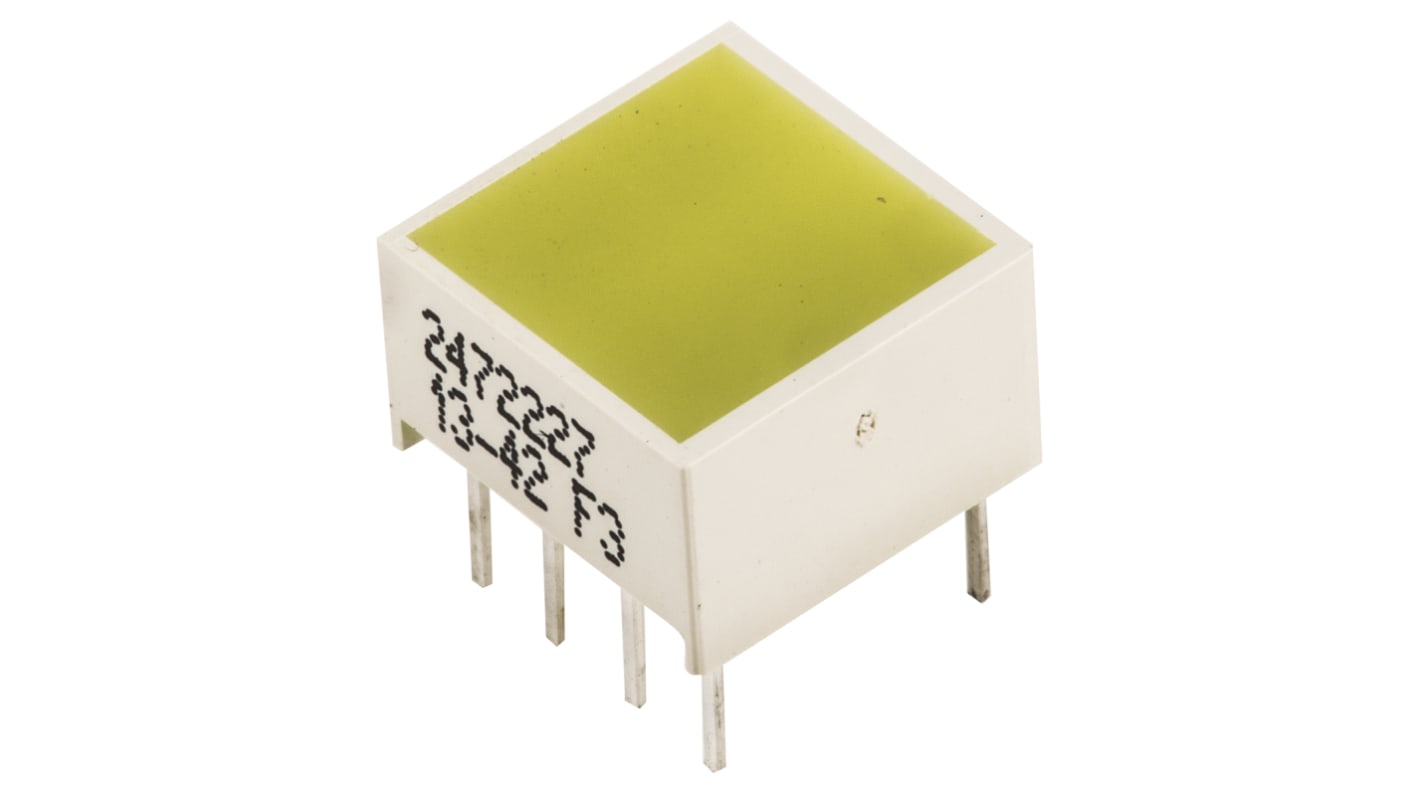

KB-2755YD Kingbright Light Bar LED Display, Yellow 15 mcd
- RS Stock No.:
- 247-2227
- Mfr. Part No.:
- KB-2755YD
- Brand:
- Kingbright
305 In stock - FREE next working day delivery available
Added
Price Each
£3.30
(exc. VAT)
£3.96
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £3.30 |
| 10 - 49 | £1.53 |
| 50 - 99 | £1.47 |
| 100 - 249 | £1.38 |
| 250 + | £1.32 |
- RS Stock No.:
- 247-2227
- Mfr. Part No.:
- KB-2755YD
- Brand:
- Kingbright
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
LED Light Bars 8.89 x 8.89 mm, Kingbright
This family of LED light bars, from Kingbright, have two segments which offer a uniform light area. Available in a range of colour options, they have a high on/off contrast. These LED light bars measure 8.89 x 8.89 mm and can be flush mounted onto PCBs. They also offer low current operation.
Kingbright Light Bar Arrays
Specifications
Attribute | Value |
|---|---|
| Display Type | Light Bar |
| LED Colours | Yellow |
| Number of Segments | 1 |
| Dominant Wavelength | 588 nm |
| Mounting Type | Through Hole |
| External Depth | 6.1mm |
| External Width | 9.9mm |
| External Height | 9.9mm |
| External Dimensions | 9.9 x 9.9 x 6.1mm |
| Luminous Intensity | 15 mcd |
| Colour of Face | White |
| Power Dissipation | 75mW |
| Forward Voltage | 2.1 V |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Forward Current | 30mA |
| Minimum Operating Temperature | -40°C |
