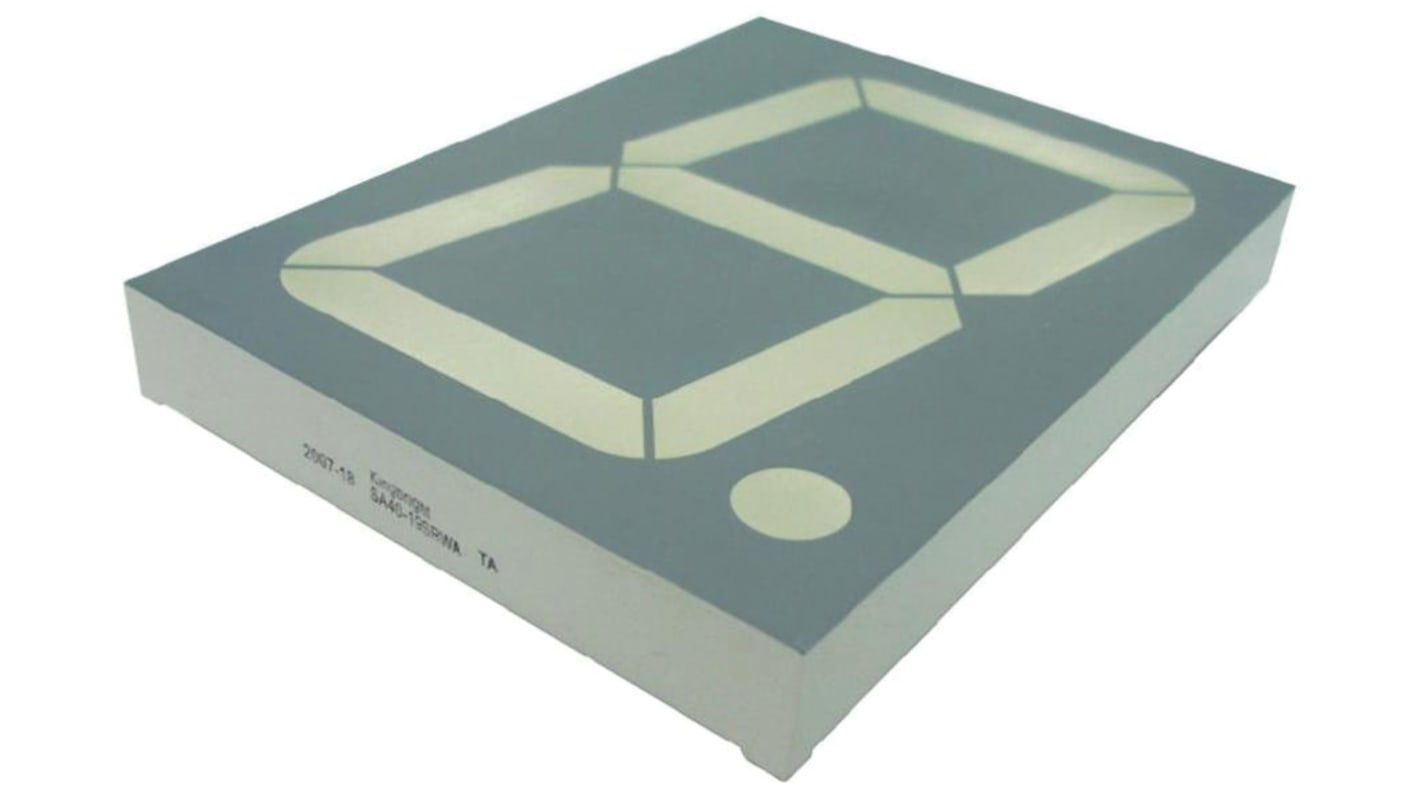

SC40-18CGKWA Kingbright 10 Digit 7-Segment LED Display, CC Green 100 mcd 101mm

  • RS Stock No. 145-1371
  • Mfr. Part No. SC40-18CGKWA
  • Brand Kingbright
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Kingbright Single Digit, 101 & 127mm

A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.

Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant

7-Segment LED Displays

Specifications
Attribute Value
Display Type 7-Segment
Number of Characters 10
LED Colours Green
Number of Segments 7
Character Width 59.5mm
Character Height 101mm
Common Connection Cathode
Mounting Type Through Hole
External Height 15mm
External Width 90mm
External Dimensions 90 x 122 x 15mm
External Depth 122mm
Luminous Intensity 100 mcd
Colour of Face Grey
Minimum Operating Temperature -40°C
Operating Temperature Range -40 → +85°C
Maximum Operating Temperature +85°C
24 In stock - FREE next working day delivery available
Price Each (In a Tube of 6)
£ 13.44
(exc. VAT)
£ 16.13
(inc. VAT)
Units
Per unit
Per Tube*
6 - 24
£13.44
£80.64
30 - 54
£13.095
£78.57
60 +
£12.767
£76.602
*price indicative
