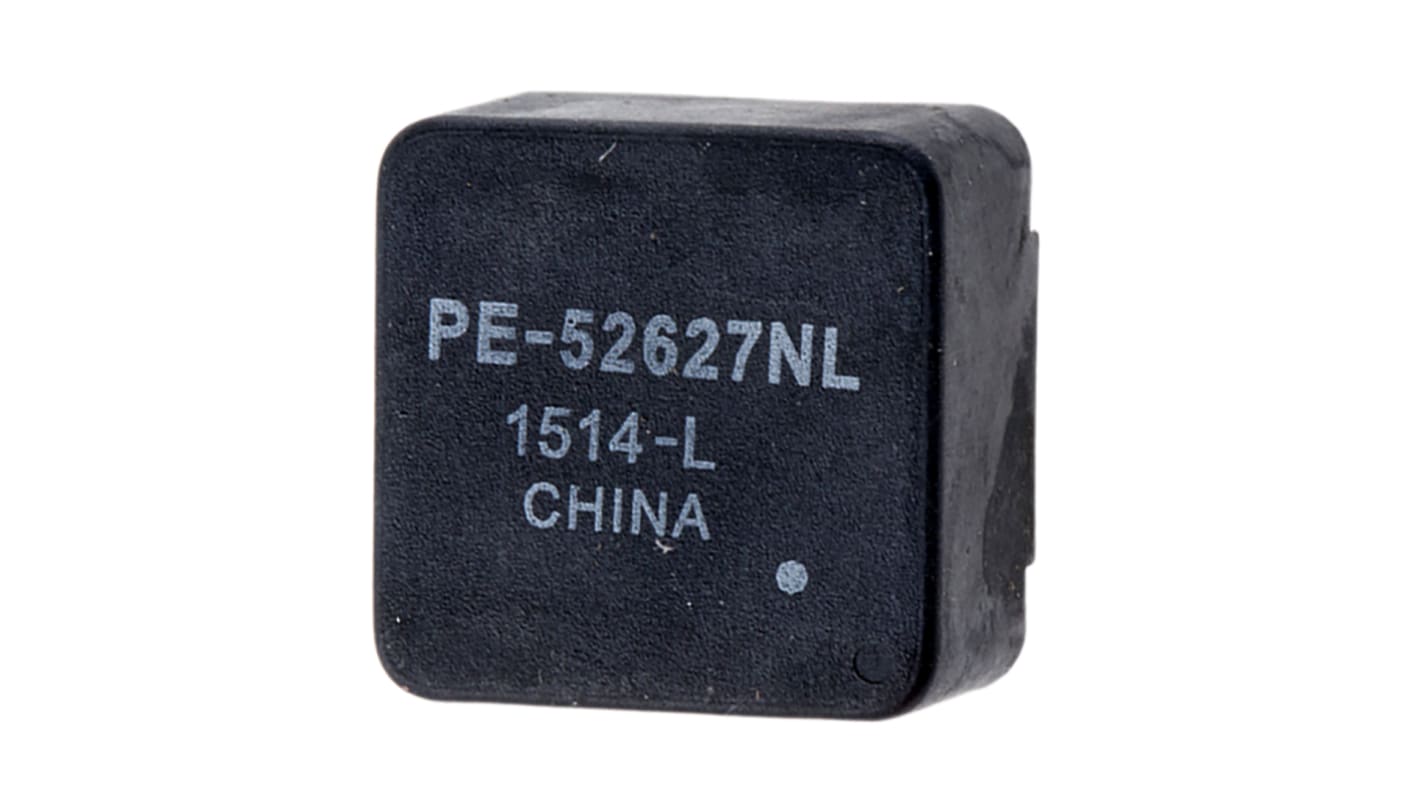

Pulse 330 μH ±20% Leaded Inductor, 1A Idc, 780mΩ Rdc
- RS Stock No.:
- 742-7950
- Mfr. Part No.:
- PE-52627NL
- Brand:
- Pulse
Discontinued product
- RS Stock No.:
- 742-7950
- Mfr. Part No.:
- PE-52627NL
- Brand:
- Pulse
Legislation and Compliance
Product Details
Pulse Toroid Inductors for National Semiconductors 50kHz Simple Switcher™
Pulse Toroid Inductors designed for use with National Semiconductors 50kHz Simple Switcher™, device numbers LM2574 / LM2575 / LM2576. These Toroid Inductors have a base material that meets the flammability requirements of UL 94V-0 and their performance is verified by National Semiconductor.
Pulse Leaded Inductors (Chokes)
Specifications
Attribute | Value |
|---|---|
| Inductance | 330 μH |
| Maximum DC Current | 1A |
| Mounting Type | Radial |
| Maximum DC Resistance | 780mΩ |
| Tolerance | ±20% |
| Length | 18.03mm |
| Depth | 18.03mm |
| Height | 11.68mm |
| Dimensions | 18.03 x 18.03 x 11.68mm |
| Lead Pitch | 10.16 mm, 15.24 mm |
| Maximum Operating Temperature | +130°C |
| Minimum Operating Temperature | -40°C |
