- RS Stock No.:
- 715-7175
- Mfr. Part No.:
- 15104C
- Brand:
- Murata Power Solutions
6 In stock - FREE next working day delivery available
Added
Price Each
£1.43
(exc. VAT)
£1.72
(inc. VAT)
Units | Per unit |
1 - 49 | £1.43 |
50 - 99 | £1.37 |
100 - 199 | £1.31 |
200 - 499 | £1.24 |
500 + | £1.20 |
- RS Stock No.:
- 715-7175
- Mfr. Part No.:
- 15104C
- Brand:
- Murata Power Solutions
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

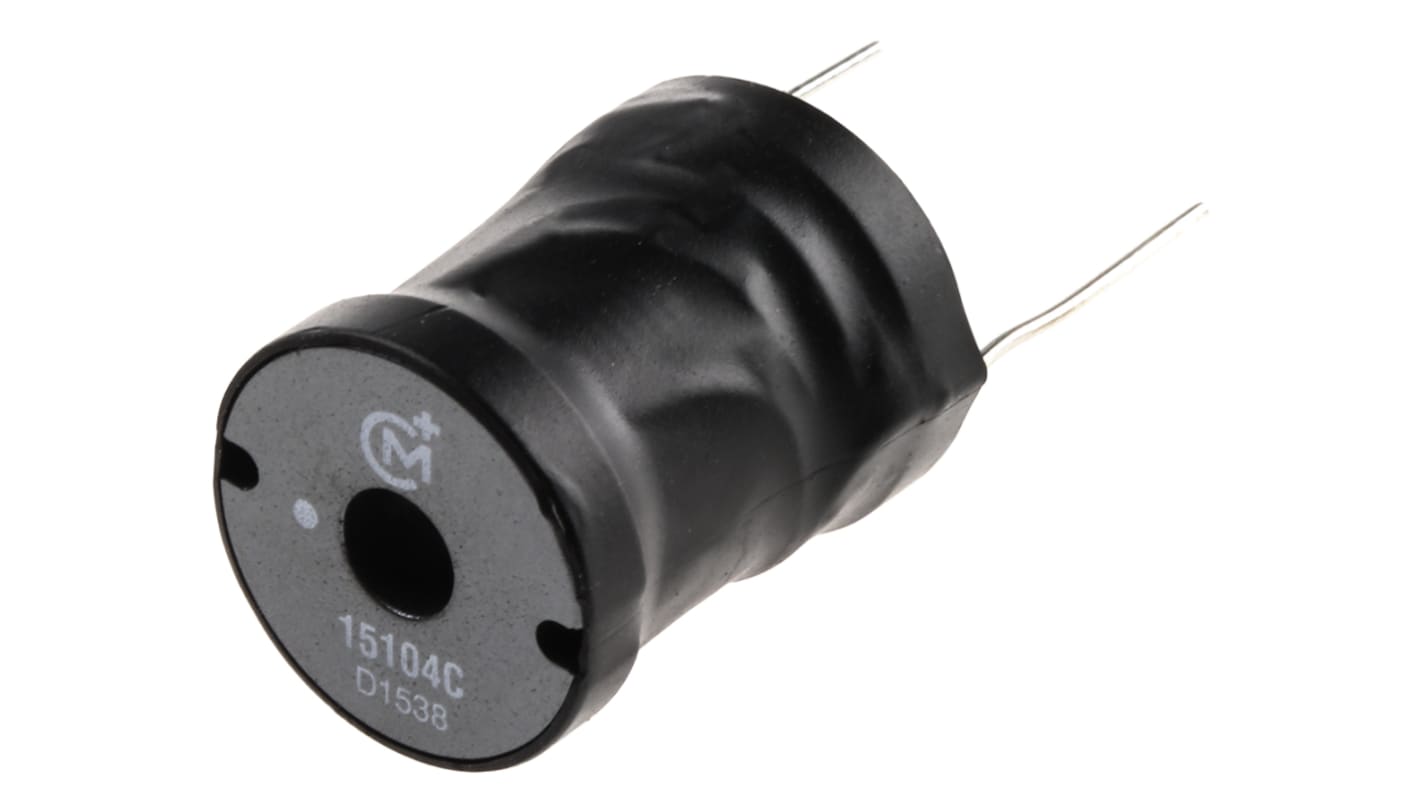

Murata 1500 Series Radial Inductor
1500 Series Radial Leaded inductors
Suitable for low to medium current applications
Central hole allows mechanical fixing with a non-magnetic screw
Applications: Power supply and general purpose filtering designs
Suitable for low to medium current applications
Central hole allows mechanical fixing with a non-magnetic screw
Applications: Power supply and general purpose filtering designs
Murata Leaded Inductors (Chokes)
Specifications
Attribute | Value |
---|---|
Inductance | 100 μH |
Maximum DC Current | 2.62A |
Mounting Type | Radial |
Maximum DC Resistance | 110mΩ |
Tolerance | ±10% |
Diameter | 16.8mm |
Height | 21.3mm |
Dimensions | 16.8 (Dia.) x 21.3mm |
Maximum Self Resonant Frequency | 3MHz |
Lead Pitch | 13.8mm |
Series | 1500 |
Terminal Type | Through Hole |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Minimum Quality Factor | 89 |
Lead Diameter | 0.63mm |
