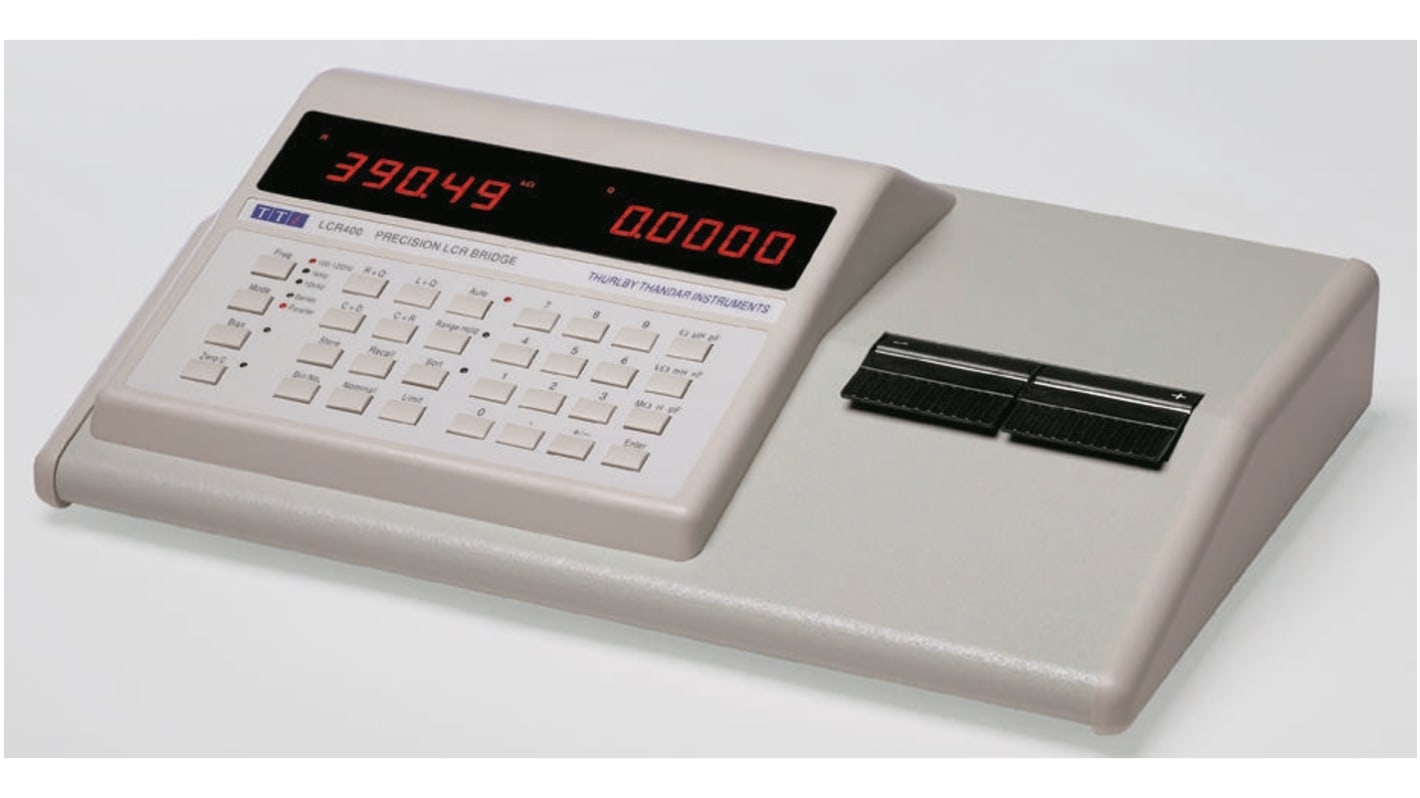

Aim-TTi LCR Meter, Maximum Capacitance 99 mF, Maximum Inductance 9900 H - LCR400

This LCR meter from Aim-TTi provides high precision measurements for components in various industries. With a compact design and LED display, it offers accurate readings for capacitance, inductance, and resistance. This bench-mounted metre is designed to meet the needs of professionals in electronics and automation, offering a reliable and efficient solution for component testing.

Features & Benefits

• Precision LCR measurements with 0.1% accuracy
• Test frequencies up to 10kHz for detailed analysis
• Automatic component recognition for ease of use
• Built-in 4-terminal fixture for accurate readings
• LED display for clear visibility of measurements
• Limits comparator with multiple pass and fail bins for sorting components

Applications

• Component inspection in laboratories
• Production facilities for quality control
• Goods-inward inspection for accurate readings
• Testing components in automation and electronics

Can it measure capacitance accurately?

The LCR metre provides accurate measurements for capacitance up to 99 mF.

Is it suitable for inductance measurements?

Yes, this LCR metre can measure inductance up to 9900 H with high precision.

Will it work for resistance measurements as well?

It offers accurate resistance measurements up to 990 MΩ.

Does it come with a mains power source?

Yes, this LCR metre is mains powered for continuous usage.

Can it be used for component sorting?

The LCR400 includes a limits comparator and multiple pass/fail bins for comprehensive component sorting.

Select all	Attribute	Value
	Brand	Thurlby Thandar Instruments
	Maximum Capacitance Measurement	99000µF
	Maximum Resistance Measurement	990 MΩ
	Maximum Inductance Measurement	9900H
	Calibrated	RSCAL
	Bench/Handheld	Bench
	Display Type	LED
	Power Source	Mains
	Dimensions	360 x 240 x 95mm
	Weight	2.9kg
	Height	95mm
	Length	360mm
	Maximum Operating Temperature	+40°C
	Minimum Operating Temperature	-5°C
	Plug Type	Type C - European Plug, Type G - British 3-pin
	Width	240mm
	Model Number p	LCR400

	Select all
	Brand Thurlby Thandar Instruments
	Maximum Capacitance Measurement 99000µF
	Maximum Resistance Measurement 990 MΩ
	Maximum Inductance Measurement 9900H
	Calibrated RSCAL
	Bench/Handheld Bench
	Display Type LED
	Power Source Mains
	Dimensions 360 x 240 x 95mm
	Weight 2.9kg
	Height 95mm
	Length 360mm
	Maximum Operating Temperature +40°C
	Minimum Operating Temperature -5°C
	Plug Type Type C - European Plug, Type G - British 3-pin
	Width 240mm
	Model Number p LCR400

Thurlby Thandar Instruments LCR400 Bench LCR Meter 99000μF, 990 MΩ, 9900H With RS Calibration
