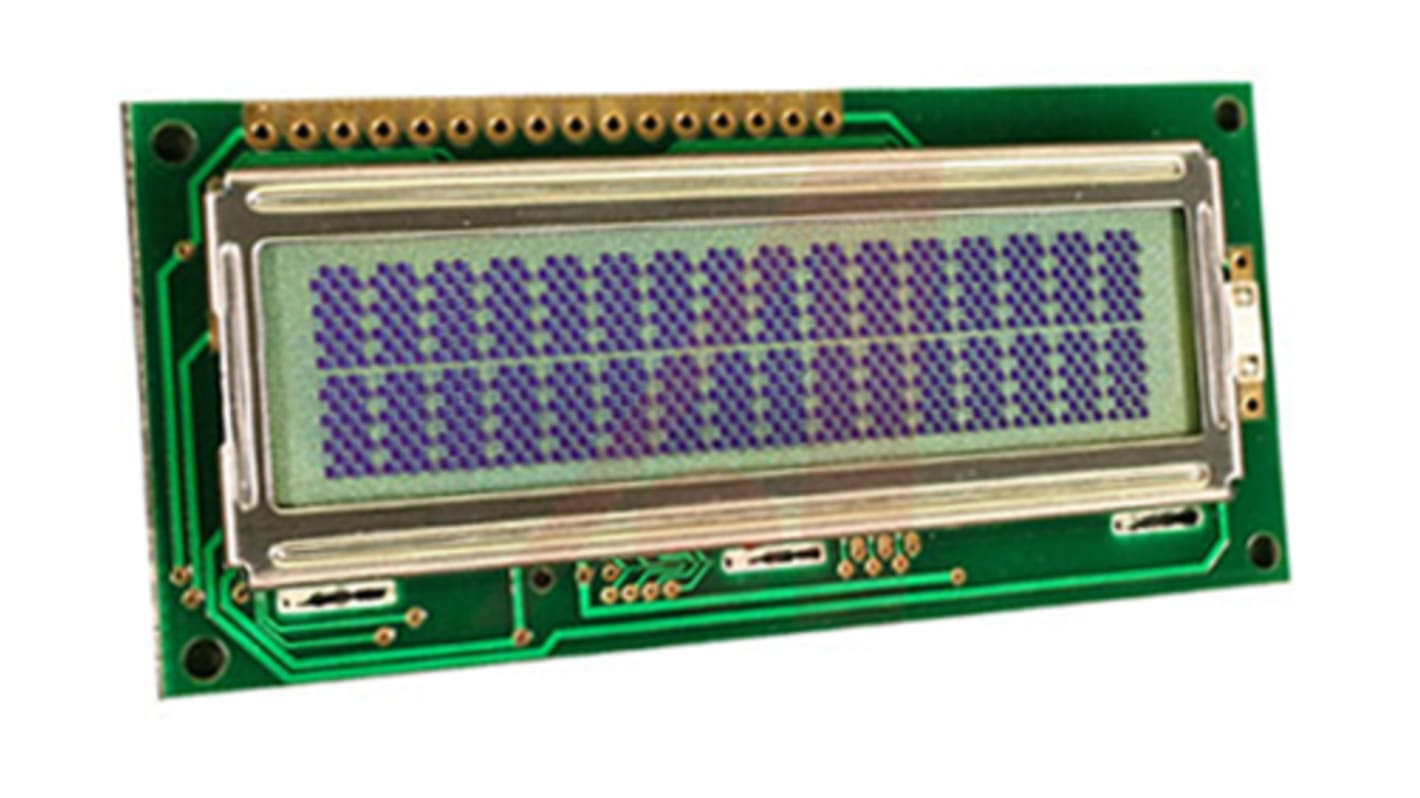

Lumex LCR-U01602DSF/DWH Alphanumeric LCD Display, White on Grey, 2 Rows by 16 Characters, Transflective

  • RS Stock No. 888-5749
  • Mfr. Part No. LCR-U01602DSF/DWH
  • Brand Lumex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Lumex LCR-U InfoVue™ Displays

The InfoVue™ LCD displays have been designed to operate under the most extreme conditions with a wide temperature range. They have a 70-80% power reduction over other traditional displays and can provide up to 50% savings in technology costs. They are ideally suited for OEM applications that require consistent high display performance despite extreme heat or cold. Options include either reflective or transflective polarizers.

Benefits:
Has consistent cold and hot start LCD performance
Has high-duty daylight visibility
Up to 320x240 graphic display
Can be paired with LED backlights
Comes in a positive or negative image display

Offering temperature range: -40 to +85 °C
Provides high-resolution

LCD Displays

Specifications
Attribute Value
Display Type Alphanumeric
Character Matrix 2 Rows by 16 Characters
Character Rows 2
Characters per Row 16
Character Width 4.8mm
Character Height 9.7mm
Viewing Area Width 99mm
Viewing Area Dimensions 99 x 24mm
Viewing Area Height 20mm
Interface Type Parallel
External Depth 13.1mm
Background Colour Grey
Illumination Colour White
Backlight Type LED
External Width 122mm
External Dimensions 122 x 44 x 13.1mm
External Height 44mm
Controller Type LSI
Display Mode Transflective
Display Matrix Technology STN
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Voltage Rating 6.8V
Operating Temperature Range -40 → +85°C
Power Dissipation 90mW
Current Rating 15mA
Available to back order for despatch 28/04/2020
Price Each (In a Pack of 1000)
£ 14.129
(exc. VAT)
£ 16.955
(inc. VAT)
Units
Per unit
Per Pack*
1000 +
£14.129
£14,129.00
*price indicative
