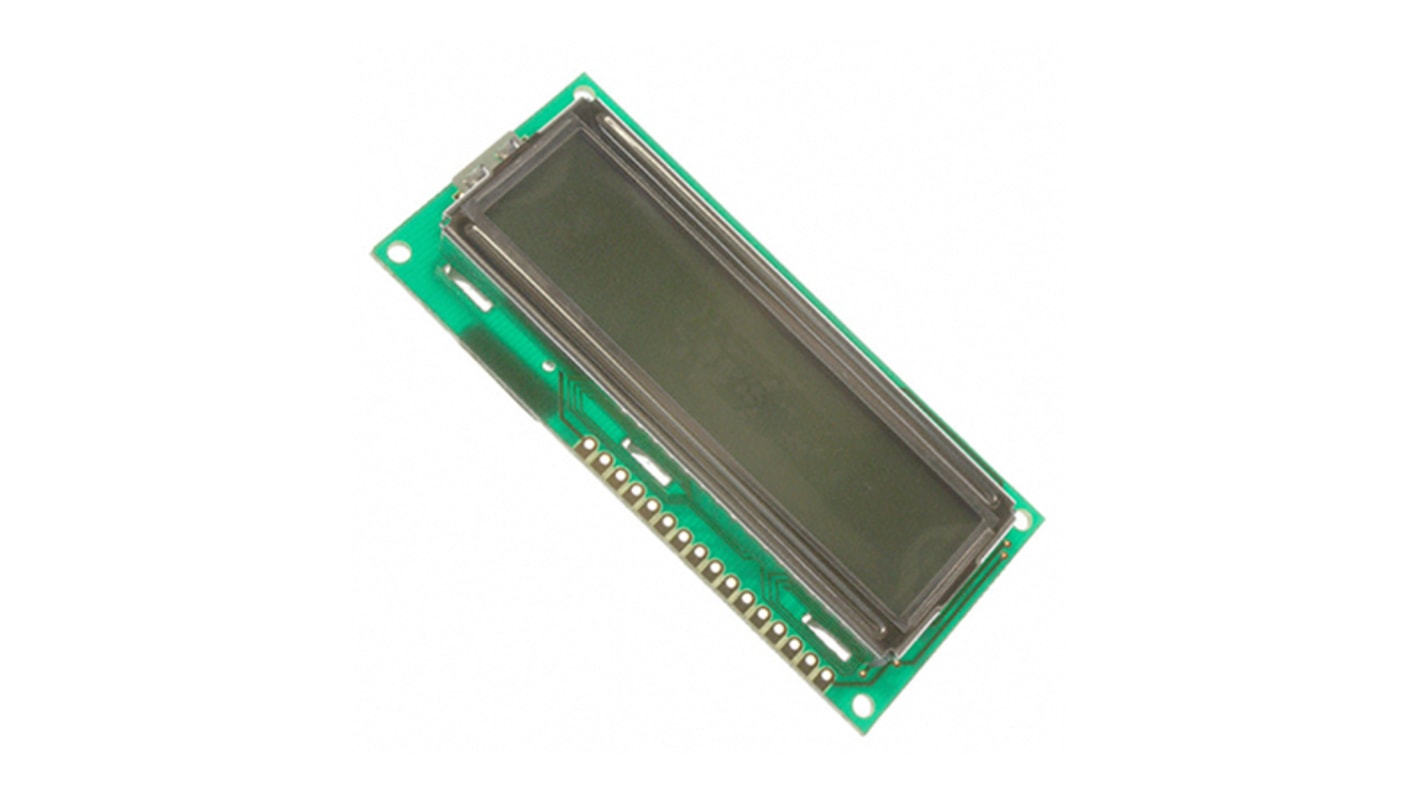

Lumex LCM-S01601DSF Alphanumeric LCD Display, 1 Row by 16 Characters, Transflective
- RS Stock No.:
- 888-5660
- Mfr. Part No.:
- LCM-S01601DSF
- Brand:
- Lumex
Discontinued product
- RS Stock No.:
- 888-5660
- Mfr. Part No.:
- LCM-S01601DSF
- Brand:
- Lumex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Lumex LCM-S InfoVue™ Displays
The InfoVue™ LCD displays have been designed to operate under the most extreme conditions with a wide temperature range. They have a 70-80% power reduction over other traditional displays and can provide up to 50% savings in technology costs. They are ideally suited for OEM applications that require consistent high display performance despite extreme heat or cold. Options include either reflective or transflective polarizers.
Benefits:
Has consistent cold and hot start LCD performance
Has high-duty daylight visibility
Up to 320x240 graphic display
Can be paired with LED backlights
Comes in a positive or negative image display
Benefits:
Has consistent cold and hot start LCD performance
Has high-duty daylight visibility
Up to 320x240 graphic display
Can be paired with LED backlights
Comes in a positive or negative image display
Offering temperature range: 0 to +50 °C
Provides high-resolution
Provides high-resolution
LCD Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | Alphanumeric |
| Character Matrix | 1 Row by 16 Characters |
| Character Rows | 1 |
| Characters per Row | 16 |
| Character Width | 3.1mm |
| Character Height | 6.6mm |
| Viewing Area Width | 66mm |
| Viewing Area Dimensions | 66 x 16mm |
| Viewing Area Height | 16mm |
| Interface Type | Parallel |
| External Depth | 12.7mm |
| Backlight Type | LED |
| External Dimensions | 80 x 36 x 12.7mm |
| External Height | 36mm |
| External Width | 80mm |
| Controller Type | LSI |
| Display Mode | Transflective |
| Display Matrix Technology | STN |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 50°C |
| Voltage Rating | 4.6V |
| Current Rating | 200mA |
| Power Dissipation | 630mW |
| Operating Temperature Range | 0 → +50°C |
