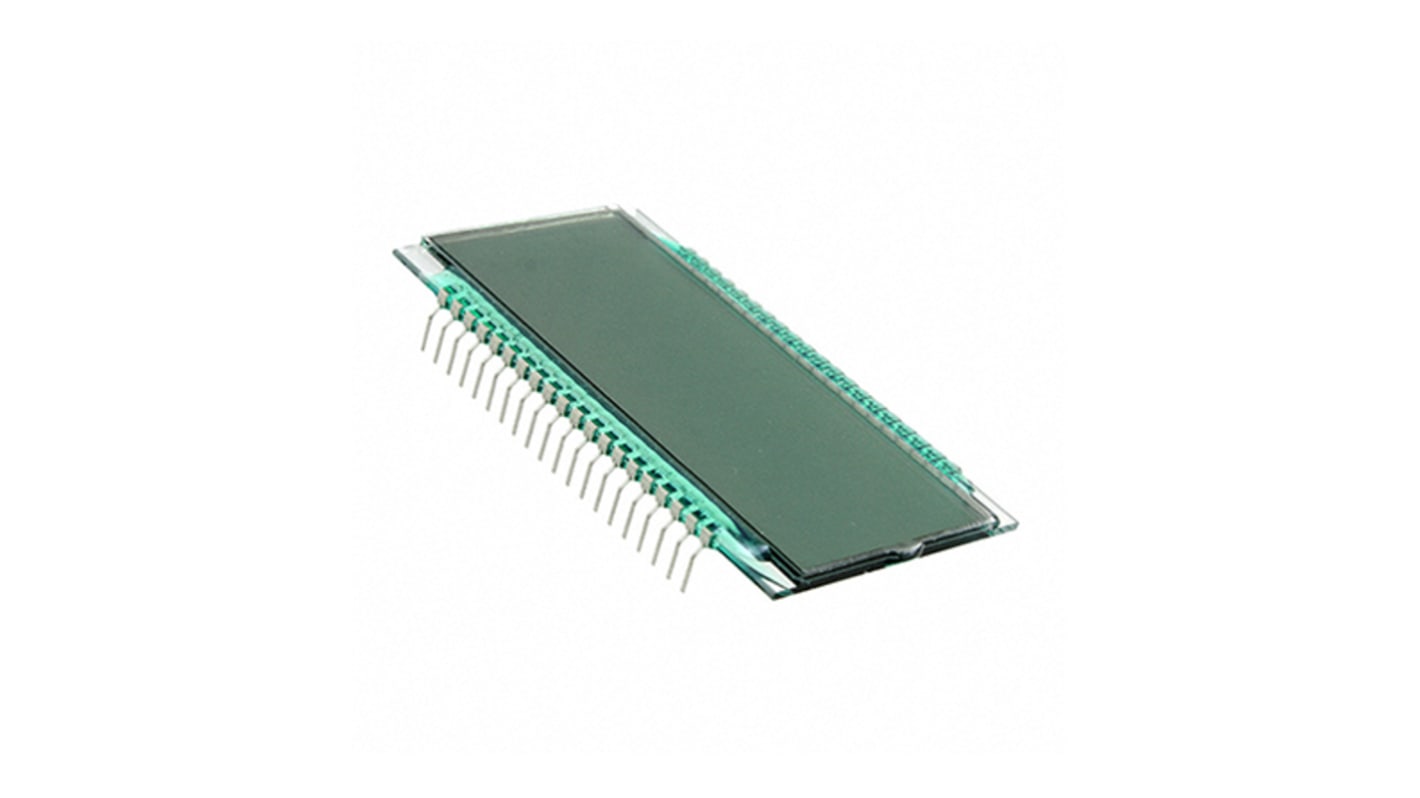

Lumex LCD-S401C71TR 7-Segment LCD Display Grey, 1 Row by 4 Characters, Reflective

  • RS Stock No. 888-5650
  • Mfr. Part No. LCD-S401C71TR
  • Brand Lumex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Lumex LCD-S InfoVue™ Displays

The InfoVue™ LCD displays have been designed to operate under the most extreme conditions with a wide temperature range. They have a 70-80% power reduction over other traditional displays and can provide up to 50% savings in technology costs. They are ideally suited for OEM applications that require consistent high display performance despite extreme heat or cold. Options include either reflective or transflective polarizers.

Benefits:
Has consistent cold and hot start LCD performance
Has high-duty daylight visibility
Up to 320x240 graphic display
Can be paired with LED backlights
Comes in a positive or negative image display

Offering temperature range: 0 to +50 °C
Provides high-resolution

LCD Displays

Specifications
Attribute Value
Display Type 7-Segment
Character Matrix 1 Row by 4 Characters
Characters per Row 4
Character Rows 1
Character Width 9mm
Character Height 18mm
Viewing Area Height 22.86mm
Viewing Area Dimensions 62.23 x 22.86mm
Viewing Area Width 62.23mm
External Depth 2.2mm
Background Colour Grey
External Dimensions 69.85 x 38.1 x 2.18mm
External Width 69.9mm
External Height 38.1mm
Display Matrix Technology TN
Display Mode Reflective
Maximum Operating Temperature 50°C
Minimum Operating Temperature 0°C
Operating Temperature Range 0 → +50°C
Voltage Rating 5V ac
4 In stock for FREE next working day delivery
Price Each
£ 4.46
(exc. VAT)
£ 5.35
(inc. VAT)
Units
Per unit
1 +
£4.46
