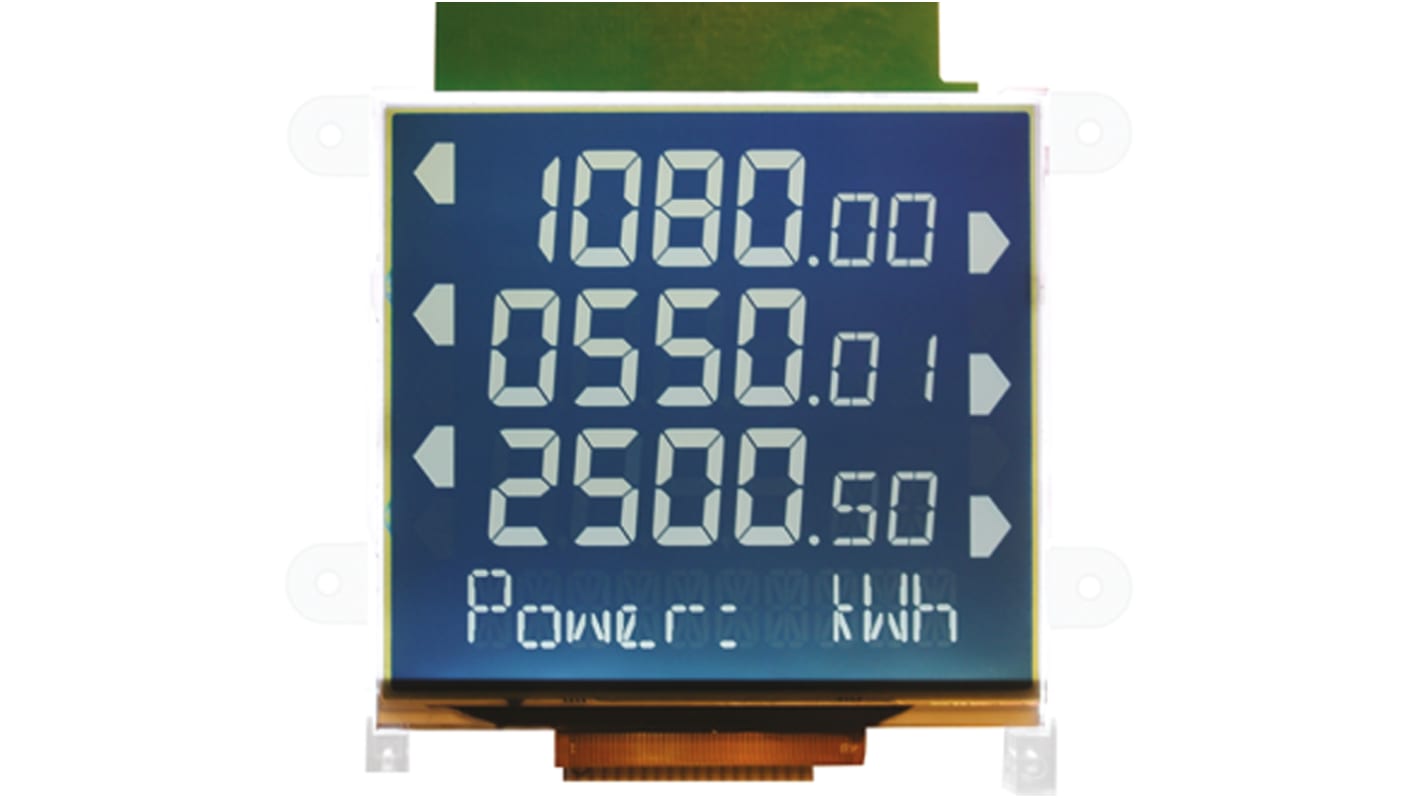

GPEG KS008A6B Alphanumeric LCD Display White, 4 Rows by 10 Characters, Transflective

  • RS Stock No. 801-1590
  • Mfr. Part No. KS008A6B
  • Brand GPEG
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

GPEG KickStart LCD Display Modules

The KickStart LCD modules, from GPEG, are clear, easy-to-read display modules. They offer high brightness, contrast and a wide viewing angle. The KickStart series provide large, bold characters with built-in character fonts and bargraph handling. With a high brightness backlight and soft icons alongside a surrounding membrane graphic, the KickStart LCD modules are a cost effective, flexible, intelligent front panel solution. The LCD modules are drive by the on board KS480 controller.

KickStart modules are supported by the KickDev01 development kit.

- 3 wire SPI and I2C interface (5v operation)
- On-board character generator
- Bar graph control
- Powerful high level command set
- Embedded real time clock
- Key decode and LED drive to further reduce microprocessor pin-count
- Over 30 Powerful high level instructions for rapid programming
- Super low power 28uA typical – even with display operational
- Wide operating temperature ‐20 to +70 C
- Development kit and open source C code available (based on PIC18F45)

GPEG Monochrome Graphic Displays

Specifications
Attribute Value
Display Type Alphanumeric
Character Matrix 4 Rows by 10 Characters
Character Rows 4
Characters per Row 10
Character Width 4.1 mm, 6.1 mm
Character Height 7.5 mm, 11.1 mm
Viewing Area Width 52mm
Viewing Area Height 58.5mm
Viewing Area Dimensions 58.5 x 52mm
Interface Type I2C, SPI (4-Wire)
External Depth 6mm
Backlight Type LED
Background Colour White
External Width 81.5mm
External Height 67.5mm
External Dimensions 81.5 x 6 x 67.5mm
Controller Type KS480
Display Matrix Technology FSTN
Display Mode Transflective
Maximum Operating Temperature +70°C
Minimum Operating Temperature -20°C
Operating Temperature Range -20 → +70°C
Discontinued product
