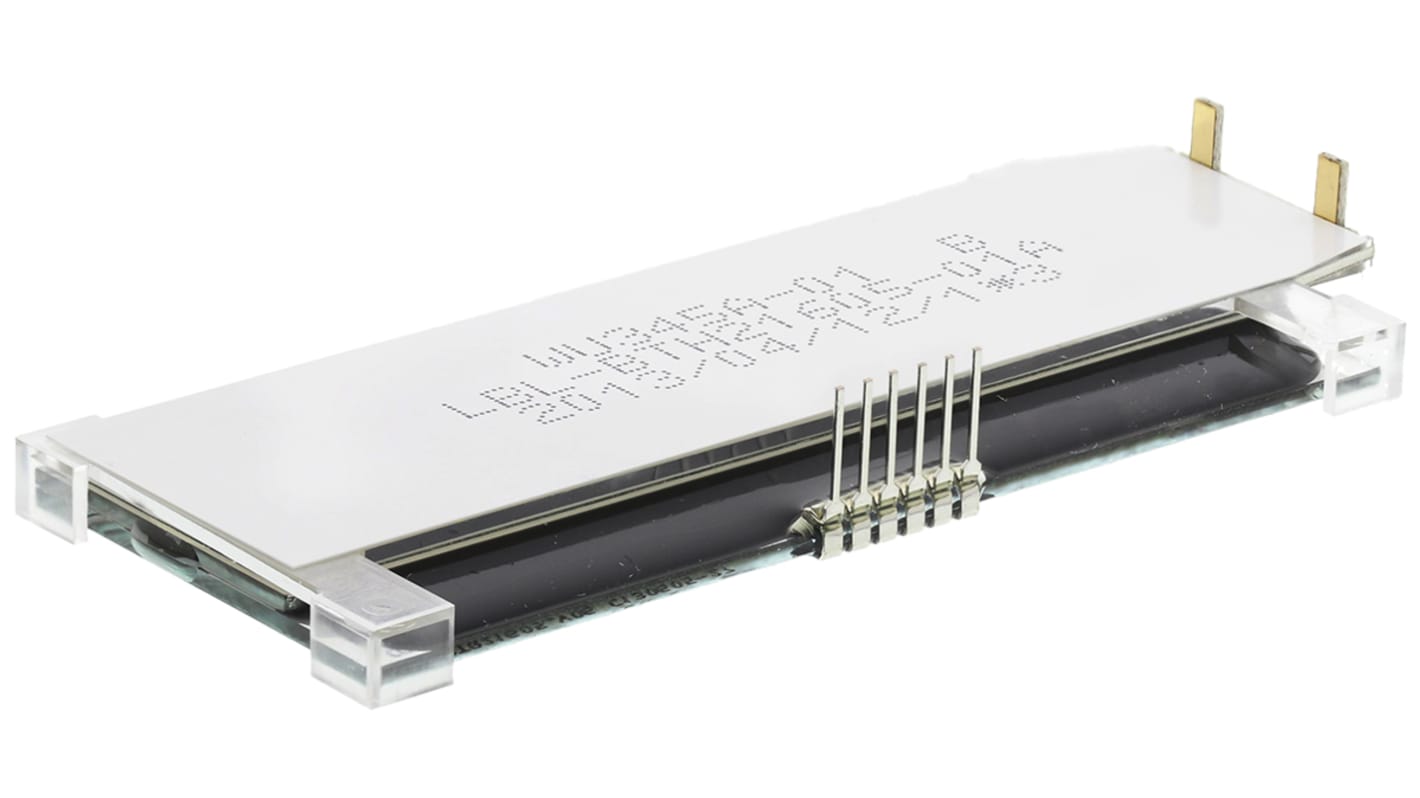

Batron BTHQ21605V-COG-FSTF-I2C-LEDWHITE BTHQ Alphanumeric LCD Display White, 2 Rows by 16 Characters, Transflective

  • RS Stock No. 743-6138
  • Mfr. Part No. BTHQ21605V-COG-FSTF-I2C-LEDWHITE
  • Brand Batron
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Batron 16 x 2 Character Alphanumeric LCD Modules, with I2C Interface

A range of high quality 16 x 2 (Characters x lines) Dot Matrix LCD modules from Batron. These Alphanumeric modules feature data interface by I2C bus and are FSTN (Film Compensated STN): with black characters on a white background.

16 characters (5x8 dots) x 2 lines Dot Matrix LCD module
Viewing Angle: 6 o’clock direction
Dot spacing 0.015 x 0.015 mm
Driving scheme: 1:18 multiplexed drive, 1/4 bias
LCD controller/driver IC: PHILIPS PCF 2119RU/2/F2 COG form
Data interface: I2C-bus
RTV coating

Batron Monochrome LCD Displays

Specifications
Attribute Value
Display Type Alphanumeric
Character Matrix 2 Rows by 16 Characters
Character Rows 2
Characters per Row 16
Character Width 3mm
Character Height 5.6mm
Viewing Area Height 15.8mm
Viewing Area Width 61mm
Viewing Area Dimensions 61 x 15.8mm
Interface Type I2C
External Depth 29.8mm
Background Colour White
Backlight Type LED
External Height 4.5mm
External Dimensions 74.5 x 29.8 x 4.5mm
External Width 74.5mm
Controller Type PCF 2119RU/2/F2 COG
Display Mode Transflective
Display Matrix Technology FSTN
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Operating Temperature Range -20 → +70°C
Series BTHQ
Current Rating 270mA
Voltage Rating 6V
Available to back order for despatch when stock is available
Price Each
£ 17.59
(exc. VAT)
£ 21.11
(inc. VAT)
Units
Per unit
1 +
£17.59
