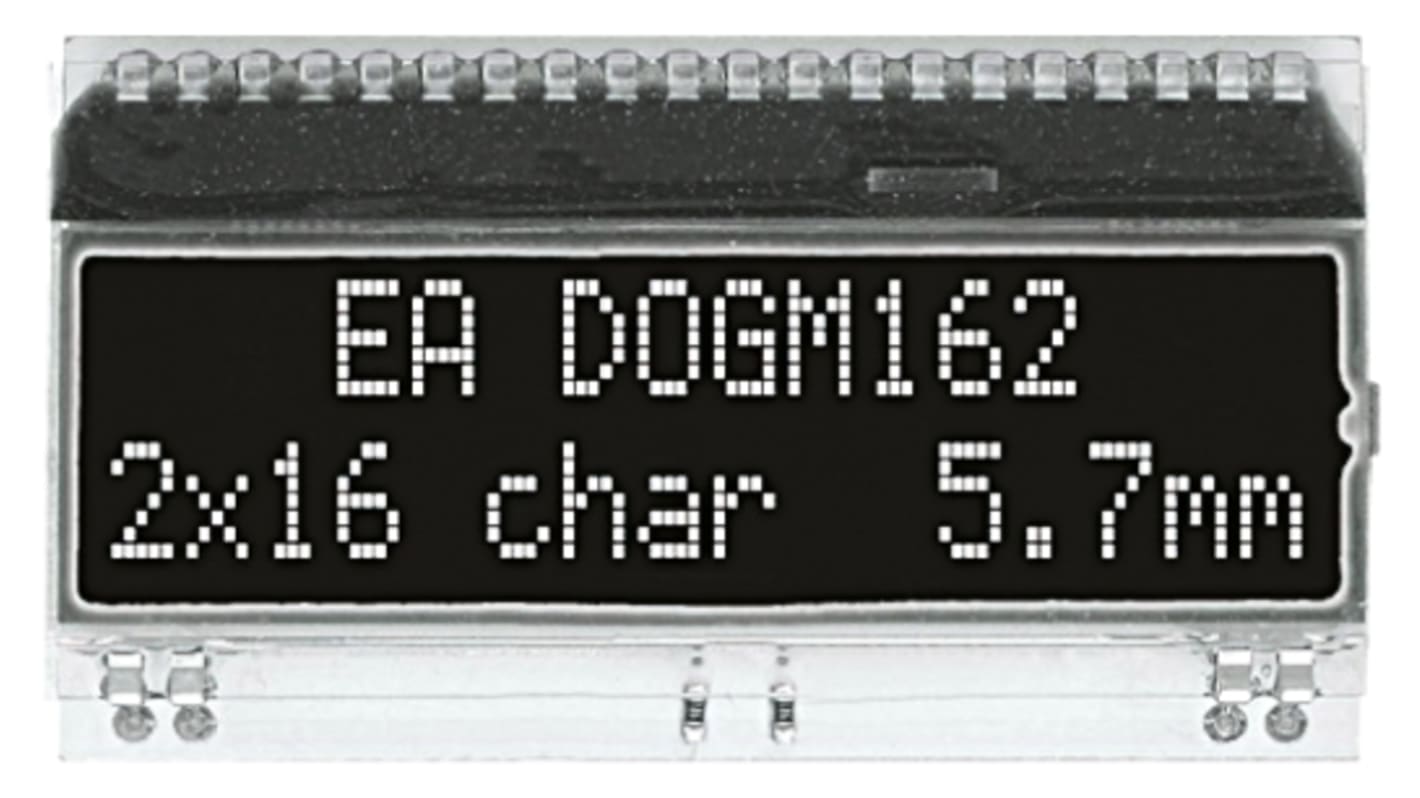

Electronic Assembly EA DOGM162S-A Alphanumeric LCD Display, Amber on Black, 2 Rows by 16 Characters, Transmissive

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Electronic Assembly DOG Series 3.3V Alphanumeric LCD Modules

The EA DOG series of alphanumeric display modules, from Electronic Assembly, are designed for use in compact hand held devices and are able to run on a single 3.3V or 5V power supply. These extremely compact LCD display modules are not supplied with a backlight, these are available to order separately (e.g. stock no. 758-8664) and can be clipped onto the display module allowing the creation a wealth of different effects (see datasheet for details).

High-contrast LCD supertwist displays
2x16 and 3x16 with 5.57 mm and 3.65 mm character height respectively
ST 7036 controller for 4-bit, 8-bit and SPI (4-wire) interface
Power supply +3.3V or +5V single supply
No mounting required, simply solder into PCB

Note

FSTN negative and STN negative display modules (displays with Black or Blue backgrounds) can only be used with a LED backlight fitted, such as stock no. 758-8651.

Electronic Assembly Alphanumeric Displays

Specifications
Attribute Value
Display Type Alphanumeric
Character Matrix 2 Rows by 16 Characters
Characters per Row 16
Character Rows 2
Character Width 2.5mm
Character Height 5.6mm
Viewing Area Dimensions 51 x 14.5mm
Viewing Area Width 51mm
Viewing Area Height 14.5mm
Interface Type SPI, 4-bit, 8-bit
External Depth 2mm
Background Colour Black
Illumination Colour Amber
External Width 55mm
External Height 27.9mm
External Dimensions 27.9 x 55 x 2mm
Controller Type ST7036
Display Matrix Technology FSTN
Display Mode Transmissive
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Driver Mounting PCB Mount
Operating Temperature Range -20 → +70°C
Available to back order for despatch 06/07/2020
Price Each (In a Box of 36)
£ 10.082
(exc. VAT)
£ 12.098
(inc. VAT)
Units
Per unit
Per Box*
36 +
£10.082
£362.952
*price indicative
