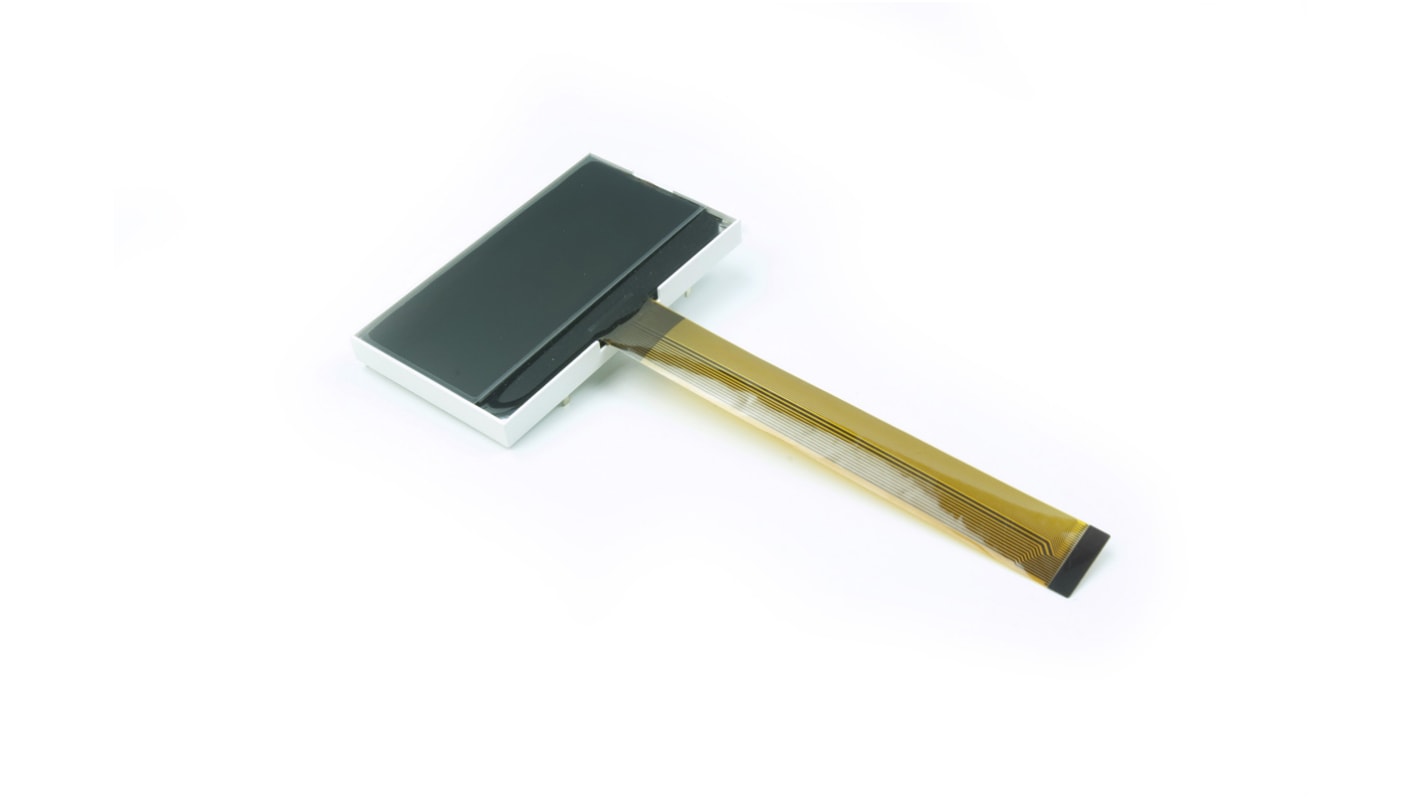

Intelligent Display Solutions CI064-4073-06 Graphic LCD Display, White on Black, Transmissive

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

CI064-4073-xxx 256x128 COG Graphic LCD Displays

The CI064-4073-xxx series from Intelligent Display Solutions (IDS) is a comprehensive range of LCD COG Graphic Modules. The available LCD modes and backlight options offered provide a large range of specifications to suit a wide variety of applications.

The process of integrating a CI064-4073-xxx LCD Module is simplified by development tools and assets available from IDS. Raspberry Pi and Arduino programming code, demos and a breakout board (IDB-CI064-4073-XX-01, RS part 1247567) are all offered to assist with rapid prototyping.

Features

256 x 128 dot format
Wide range of LCD mode and LED backlight options
Easy interface with 8 bit parallel or serial
Low-power operation
On-chip DC-DC converter
Internal contrast control
Built-in temperature compensation
Viewing direction: 6 o’clock
Driving scheme: 1/65 duty cycle, 1/9 bias

Amber Backlight Models

CI064-4073-26 - FFSTN Negative Transmissive - RS Part 1247564
CI064-4073-21 - FSTN Negative Transmissive - RS Part 1247559
CI064-4073-04 - FSTN Positive Transflective - RS Part 1247544
CI064-4073-14 - STN Positive Transflective - RS Part 1247552

Blue Backlight Models

CI064-4073-25 - FFSTN Negative Transmissive - RS Part 1247563
CI064-4073-20 - FSTN Negative Transmissive - RS Part 1247558
CI064-4073-02 - FSTN Positive Transflective - RS Part 1247542
CI064-4073-13 - STN Positive Transflective - RS Part 1247551

Green Backlight Models

CI064-4073-24 - FFSTN Negative Transmissive - RS Part 1247562
CI064-4073-19 - FSTN Negative Transmissive - RS Part 1247557
CI064-4073-03 - FSTN Positive Transflective - RS Part 1247543
CI064-4073-12 - STN Positive Transflective - RS Part 1247550

Red Backlight Models

CI064-4073-23 - FSTN Negative Transmissive - RS Part 1247561
CI064-4073-17 - FSTN Positive Transflective - RS Part 1247555
CI064-4073-16 - STN Positive Transflective - RS Part 1247554

White Backlight Models

CI064-4073-06 - FFSTN Negative Transmissive - RS Part 1247546
CI064-4073-18 - FSTN Negative Transmissive - RS Part 1247556
CI064-4073-01 - FSTN Positive Transflective - RS Part 1247541
CI064-4073-05 - STN Negative Blue Transmissive - RS Part 1247545
CI064-4073-11 - STN Positive Transflective - RS Part 1247549

RGB Backlight Models

CI064-4073-08A - FFSTN Negative Transmissive - RS Part 1247548
CI064-4073-22 - FSTN Negative Transmissive - RS Part 1247560
CI064-4073-07A - FSTN Positive Transflective - RS Part 1247547
CI064-4073-15 - STN Positive Transflective - RS Part 1247553

Reflective Models

CI064-4073-28 - STN Positive Reflective - RS Part 1247566

IDS Graphic LCD Displays

Specifications
Attribute Value
Display Type Graphic
Resolution 256 x 128
Viewing Area Width 66.41mm
Viewing Area Dimensions 66.41 x 31mm
Viewing Area Height 31mm
Interface Type I2C, Serial, 8-Bit Parallel
External Depth 6.8mm
Illumination Colour White
Background Colour Black
Backlight Type LED
External Width 76mm
External Dimensions 76 x 43.86 x 6.8mm
External Height 43.9mm
Controller Type UC1611S
Display Mode Transmissive
Display Matrix Technology FFSTN
Maximum Operating Temperature +70°C
Minimum Operating Temperature -20°C
Driver Mounting COG
Voltage Rating 3 → 3.6V
Operating Temperature Range -20 → +70°C
