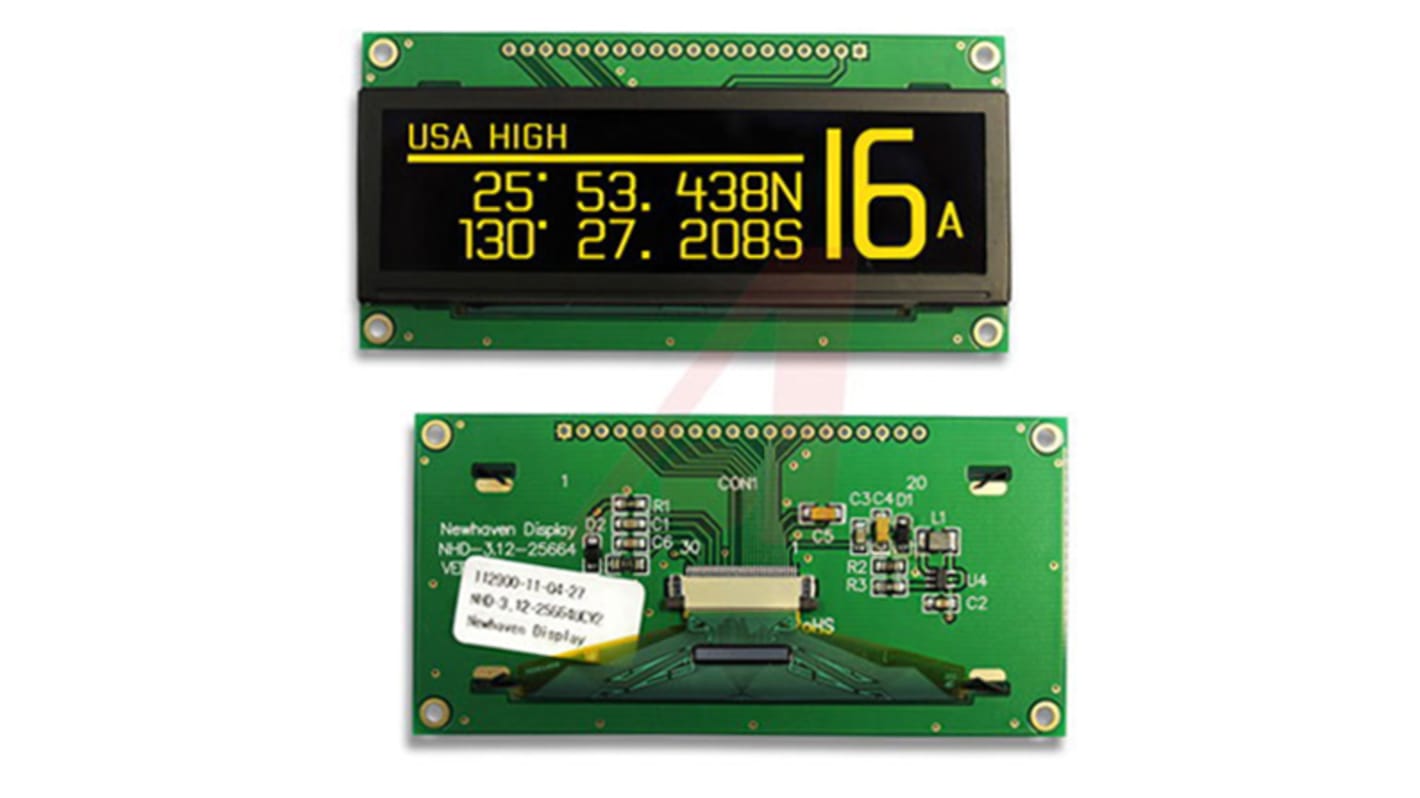

NEWHAVEN DISPLAY INTERNATIONAL NHD-3.12-25664UCY2 LCD Colour Display, 3.12in, 254 x 64pixels
- RS Stock No.:
- 909-2023
- Mfr. Part No.:
- NHD-3.12-25664UCY2
- Brand:
- NEWHAVEN DISPLAY INTERNATIONAL
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 909-2023
- Mfr. Part No.:
- NHD-3.12-25664UCY2
- Brand:
- NEWHAVEN DISPLAY INTERNATIONAL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NEWHAVEN DISPLAY INTERNATIONAL | |
| Diagonal Display Size | 3.12in | |
| Resolution | 254 x 64 pixels, 256 x 64pixels | |
| Viewing Area Dimensions | 33 x 66mm | |
| Supply Voltage | 3.5 V | |
| Touch Screen Type | None | |
| Backlight Type | LED | |
| AC or DC Input Voltage | dc | |
| Dimensions | 3.5 x 82 x 47.5mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Brightness | 100cd/m² | |
| Operating Temperature Range | -40 → +85°C | |
| Standards Met | RoHS Compliant | |
| Depth | 47.5mm | |
| Response Time | 10 μs | |
| Width | 82mm | |
| Number of Colours | 1 | |
| Viewing Area Width | 66mm | |
| Height | 3.5mm | |
| Current Rating | 310 (Display) mA, 4 (Logic) mA | |
| Voltage Rating | 3.5V | |
| Viewing Area Height | 33mm | |
| Contrast Ratio | 2000:1 | |
Select all | ||
|---|---|---|
Brand NEWHAVEN DISPLAY INTERNATIONAL | ||
Diagonal Display Size 3.12in | ||
Resolution 254 x 64 pixels, 256 x 64pixels | ||
Viewing Area Dimensions 33 x 66mm | ||
Supply Voltage 3.5 V | ||
Touch Screen Type None | ||
Backlight Type LED | ||
AC or DC Input Voltage dc | ||
Dimensions 3.5 x 82 x 47.5mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Brightness 100cd/m² | ||
Operating Temperature Range -40 → +85°C | ||
Standards Met RoHS Compliant | ||
Depth 47.5mm | ||
Response Time 10 μs | ||
Width 82mm | ||
Number of Colours 1 | ||
Viewing Area Width 66mm | ||
Height 3.5mm | ||
Current Rating 310 (Display) mA, 4 (Logic) mA | ||
Voltage Rating 3.5V | ||
Viewing Area Height 33mm | ||
Contrast Ratio 2000:1 | ||
- COO (Country of Origin):
- CN
Newhaven Display International Organic Light Emitting Diode (OLED) Displays are brighter, higher contrast displays that have faster response times, wider viewing angles and use less power than conventional displays. OLED displays are self-illuminating and require no backlight for maximum visibility in all environments. This also allows OLEDs to be significantly thinner than standard VFD, LED or LCD displays. Newhaven Display offers Character and Graphic type OLED displays as complete, easy-to-use modules.• Slim Character OLED • 2 lines x 16 character • Blue OLED display
Newhaven AMOLED Displays
